REAR SUSPENSION/SHOCK ABSORBER
KX80-C1 KX80 1981 USA CANADA

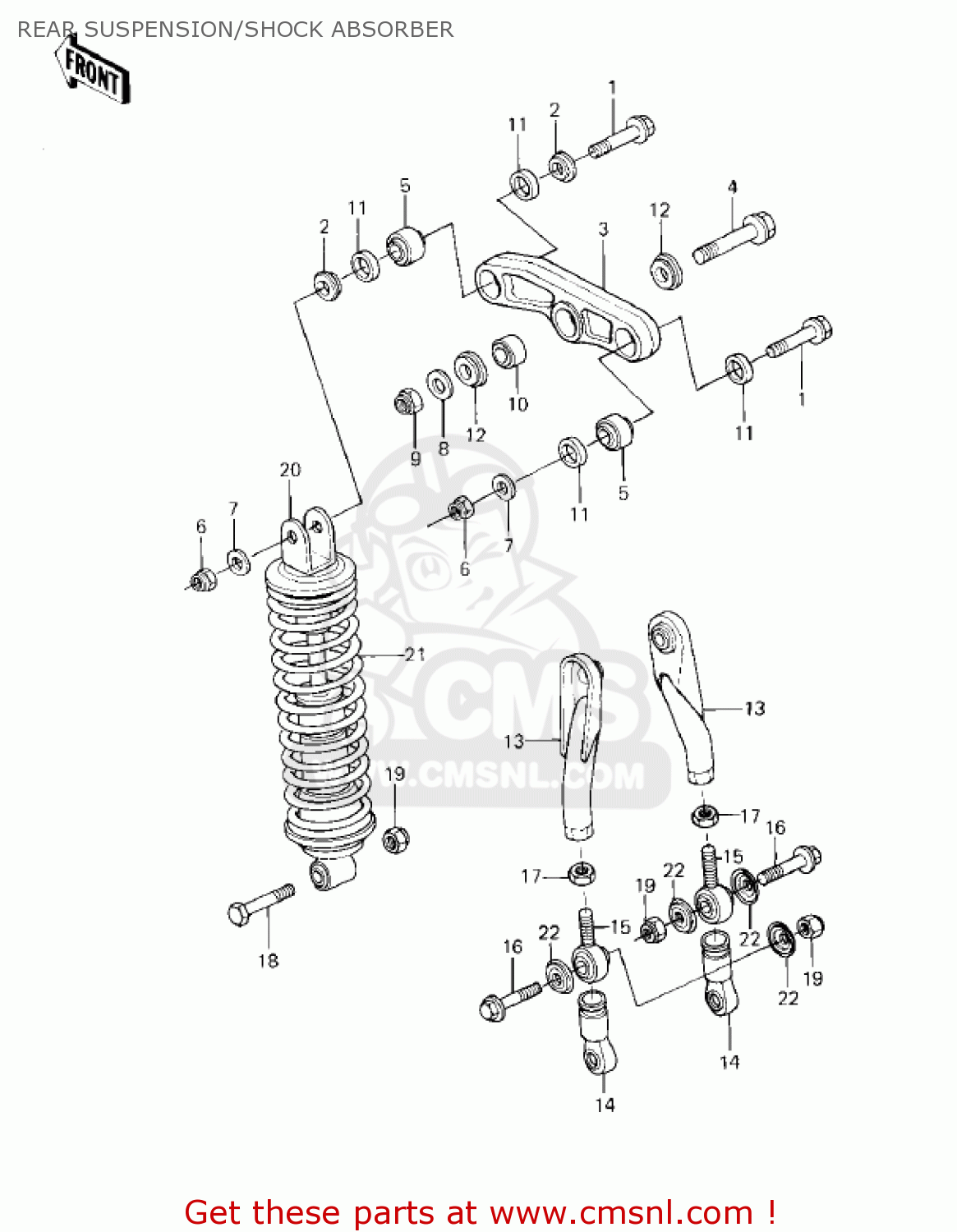

Rear suspension/shock absorber diagram KX80-C1 KX80 1981 USA CANADA
REAR SUSPENSION/SHOCK ABSORBER KX80-C1 KX80 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
920011364
ref: 1
BOLT,12X48
€ 4.50
2
920271304
ref: 2
COLLAR
€ 7.00
3
390071004
ref: 3
ARM,SUSPENSION
€ 45.50
4
920011363
ref: 4
BOLT,14X56
€ 8.00
5
592661051
ref: 5
JOINT-BALL
€ 67.50
6
92019009
ref: 6
NUT,LOCK,12MM
€ 5.00
7
410B1200
ref: 7
WASHER-PLAIN-SMALL,12
€ 0.50
8
410B1400
ref: 8
410B1400
9
92019011
ref: 9
NUT,LOCK,14MM
€ 6.00
10
920281118
ref: 10
BUSHING
€ 85.00
11
920931045
ref: 11
SEAL
€ 8.50
12
110121117
ref: 12
CAP,SUSPENSION ARM
€ 10.00
13
461021023
ref: 13
ROD,UNI TRAK ARM
€ 39.50
14
490061049
ref: 14
BOOT,BALL JOINT
€ 7.00
15
592661005
ref: 15
JOINT BALL
€ 64.00
16
920011366
ref: 16
BOLT,10X34
€ 2.50
17
92016027
ref: 17
NUT,10MM
€ 2.00
18
920011299
ref: 18
BOLT,HEX HEAD,10X44
€ 3.50
19
920151429
ref: 19
NUT,10MM
€ 4.50
20
450141125
ref: 20
SHOCKABSORBER,REAR
€ 380.50
21
920811350
ref: 21
SPRING,REAR SHOCK,STD
€ 50.00
21
920811339
ref: 21
OPTION
SPRING,RR SHOCK,OPTN
€ 90.50
21
920811340
ref: 21
OPTION
SPRING,RR SHOCK,OPTN
€ 39.50
21
920491072
ref: 21
OIL SEAL,BALL JOINT
€ 6.00
