CARBURETOR
KX80-C1 KX80 1981 USA CANADA

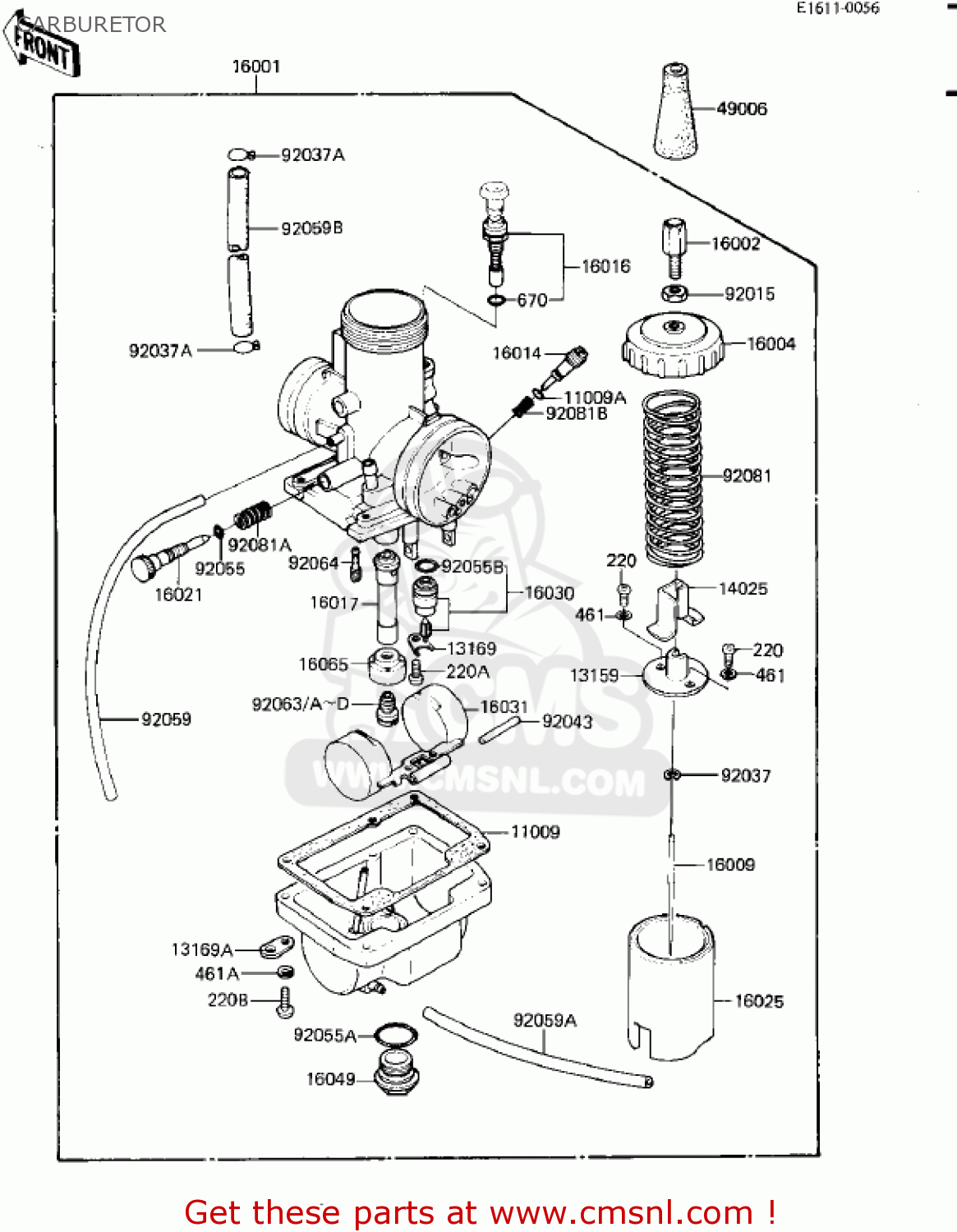

Carburetor diagram KX80-C1 KX80 1981 USA CANADA
CARBURETOR KX80-C1 KX80 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091178
ref: 11009
GASKET,FLOAT CHAMBER
€ 7.00
11009A
16038022
ref: 11009A
GASKET,O-RING
€ 4.50
13159
131591010
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13169
131691190
ref: 13169
PLATE,LOCK
€ 3.50
13169A
131691226
ref: 13169A
PLATE,TUBE CLAMP
€ 5.00
14025
140251494
ref: 14025
COVER,THROTTLE VALVE
€ 6.00
16001
160011494
ref: 16001
CARBURETOR
€ 124.00
16002
16002017
ref: 16002
ADJUSTER-CABLE
€ 8.00
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16009
160091111
ref: 16009
NEEDLE-JET,5EJ33
€ 16.50
16014
160141013
ref: 16014
SCREW-PILOT AIR
€ 9.00
16016
160161013
ref: 16016
PLUNGER,STARTER
€ 24.50
16017
160171108
ref: 16017
JET-NEEDLE,0-6
€ 21.50
16021
160211012
ref: 16021
SCREW-THROTTLE STOP
€ 10.50
16025
160251070
ref: 16025
VALVE-THROTTLE,CA3.0
€ 54.00
16030
160301013
ref: 16030
VALVE-FLOAT,#2.5
€ 33.00
16031
160311011
ref: 16031
FLOAT
€ 35.00
16049
160491003
ref: 16049
COVER,MAIN JET
€ 8.00
16065
160651033
ref: 16065
HOLDER,MAIN JET RING
€ 10.50
49006
16036007
ref: 49006
BOOT,CABLE ADJUSTER
€ 10.50
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037072
ref: 92037A
CLAMP,TUBE
€ 4.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92055A
920551076
ref: 92055A
RING-O
€ 6.00
92055B
920551084
ref: 92055B
RING-O
€ 1.50
92059
920591755
ref: 92059
TUBE,3X5X300
€ 6.00
92059A
920591135
ref: 92059A
TUBE
€ 4.00
92059B
92059130
ref: 92059B
PIPE,FUEL
€ 15.50
92063
92063055
ref: 92063
MAIN JET,#125R
€ 9.50
92063A
920631100
ref: 92063A
JET-MAIN,#A127.5
€ 9.50
92063B
92063057
ref: 92063B
MAIN JET,#130R
€ 9.50
92063C
920631101
ref: 92063C
JET-MAIN,#A122.5
€ 9.50
92063D
92063103
ref: 92063D
MAIN JET,#132.5R
€ 8.50
92064
92064022
ref: 92064
PILOT JET #30 ISO
€ 11.50
92081
16006023
ref: 92081
SPRING,THROTTLE VALV
€ 10.00
92081A
920811152
ref: 92081A
SPRING,THROTTLE ADJST
€ 4.00
92081B
920811153
ref: 92081B
SPRING,AIR SCREW
€ 3.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0408
ref: 220A
SCREW-PAN-CROS
€ 0.50
220B
220B0416
ref: 220B
SCREW-PAN-CROS
€ 2.00
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0400
ref: 461A
WASHER-SPRING,4MM
€ 0.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
