CRANKCASE ('82 KX80-C2)
KX80-C1 KX80 1981 USA CANADA

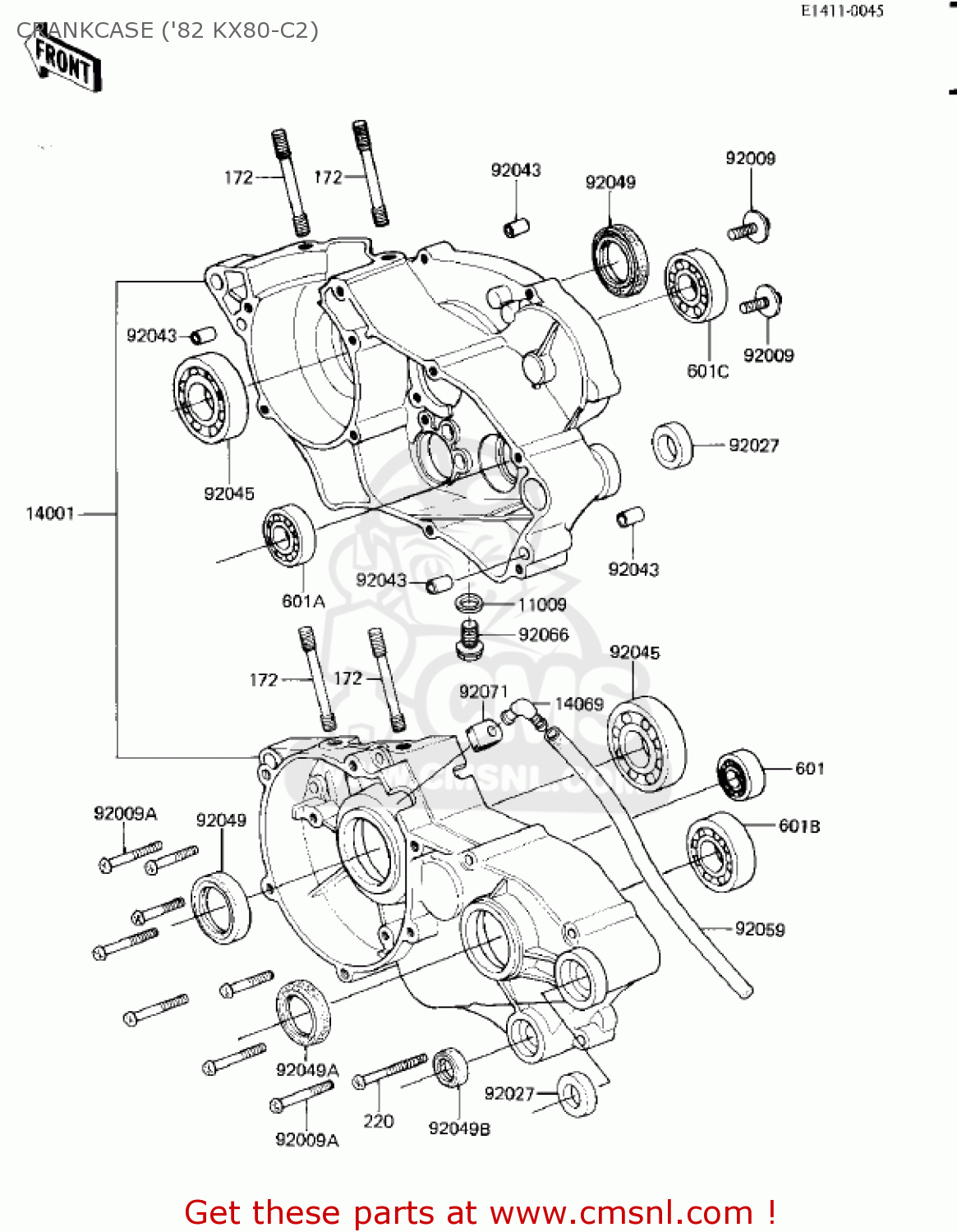

Crankcase ('82 kx80-c2) diagram KX80-C1 KX80 1981 USA CANADA
CRANKCASE ('82 KX80-C2) KX80-C1 KX80 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
14001
140015159
ref: 14001
SET-CRANKCASE
€ 342.50
14069
140691001
ref: 14069
BREATHER
€ 17.50
92009
920091103
ref: 92009
SCREW,6X15
€ 2.50
92009A
220C0635
ref: 92009A
SCREW-PAN-CROS,6X35,B
€ 3.50
92027
920271281
ref: 92027
COLLAR
€ 7.00
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
920451006
ref: 92045
BEARING-BALL,6304SH2,
€ 27.50
92049
920491065
ref: 92049
OIL SEAL
€ 16.50
92049A
92050013
ref: 92049A
OIL SEAL SC25376
€ 9.50
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
€ 5.50
92059
920591372
ref: 92059
TUBE,6X9X750
€ 9.00
92066
920661241
ref: 92066
PLUG
€ 4.00
92071
92071042
ref: 92071
GROMMET
€ 2.50
172
172G08110
ref: 172
STUD,8X110
€ 8.50
220
220B0660
ref: 220
SCREW-PAN HEAD,6X60
€ 2.50
601
920451235
ref: 601
BEARING-BALL,6001C3ML
€ 15.50
601A
601B6002
ref: 601A
BEARING-BALL,#6002C3
€ 16.00
601B
601B6004
ref: 601B
BEARING-BALL,#6004C3
€ 10.50
601C
601B6203
ref: 601C
BEARING-BALL,#6203C3
€ 10.50
