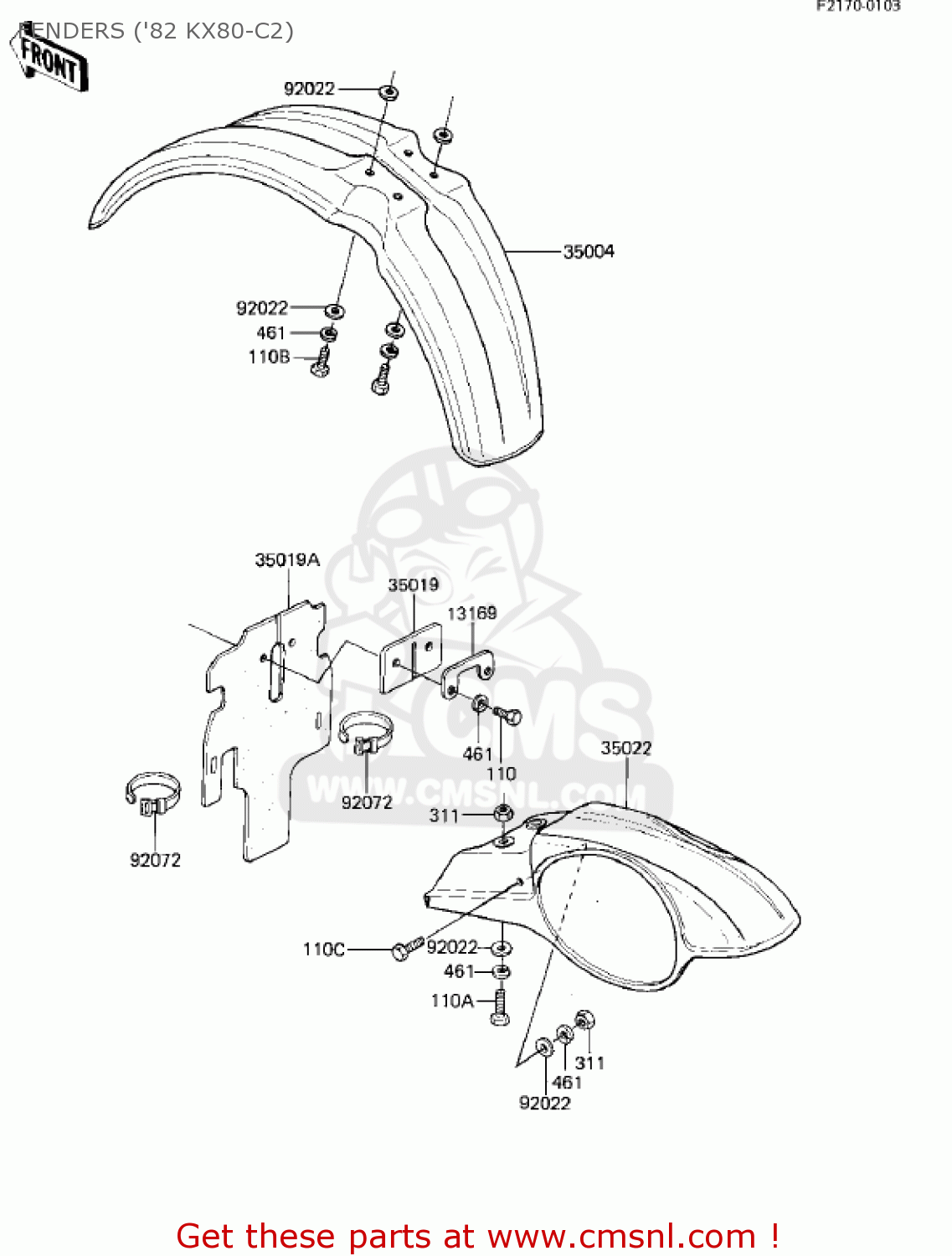

FENDERS ('82 KX80-C2)

KX80-C1 KX80 1981 USA CANADA

Fenders ('82 kx80-c2) diagram KX80-C1 KX80 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

13169

131691407
ref: 13169

PLATE,REAR FLAP

€ 4.00

35004

3500410556W
ref: 35004

FENDER-FRONT,L.GREEN

€ 57.50

35019

350191019
ref: 35019

FLAP,FENDER,RR

€ 8.00

35019A

350191024
ref: 35019A

FLAP,FENDER

€ 16.50

35022

350221089AE
ref: 35022

FENDER-COMP-REAR,L.GR

€ 68.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

110

112B0614
ref: 110

BOLT-UPSET 6X14

€ 2.50

110A

112G0616
ref: 110A

BOLT UPSET,6X16

€ 1.00

110B

112G0618
ref: 110B

BOLT-UPSET

€ 0.50

110C

112G0620
ref: 110C

BOLT 6X20

€ 1.00

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
