FRONT HUB/BRAKE ('82 KX80-C2)
KX80-C1 KX80 1981 USA CANADA

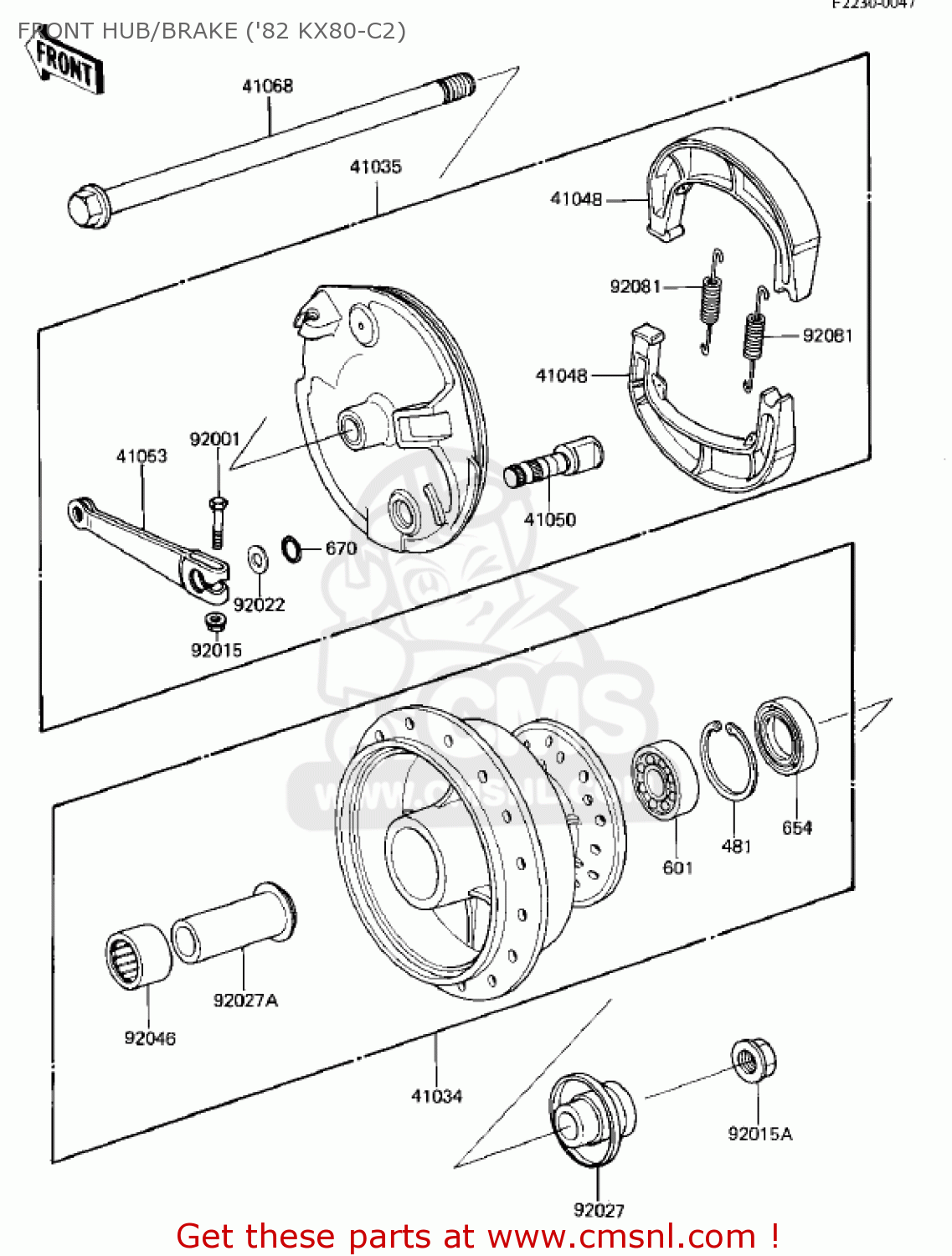

Front hub/brake ('82 kx80-c2) diagram KX80-C1 KX80 1981 USA CANADA
FRONT HUB/BRAKE ('82 KX80-C2) KX80-C1 KX80 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
41034
410341053
ref: 41034
DRUM-ASSY,FR
€ 188.00
41035
410351085
ref: 41035
PANEL-ASSY-BRAKE,FR
€ 102.50
41048
410481021
ref: 41048
SHOE,BRAKE (MCA)
€ 12.50
41050
410501009
ref: 41050
CAM,BRAKE,FRONT
€ 11.50
41053
410531011
ref: 41053
LEVER,BRAKE CAM,FRONT
€ 36.00
41068
410681011
ref: 41068
AXLE,FR,10X191
€ 23.50
92001
920011135
ref: 92001
BOLT,HEX HEAD,6X30
€ 3.00
92015
41072007
ref: 92015
NUT,6MM
€ 2.50
92015A
920151415
ref: 92015A
NUT,10MM
€ 3.00
92022
92022257
ref: 92022
WASHER
€ 9.00
92027
920271094
ref: 92027
COLLAR,FRONT AXLE
€ 12.00
92027A
920271378
ref: 92027A
COLLAR,L=47
€ 8.50
92046
920461039
ref: 92046
BEARING-NEEDLE,RNA490
€ 41.00
92081
920811766
ref: 92081
SPRING,BRAKE SHOE
€ 5.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
601
601B6300
ref: 601
BEARING-BALL,#6300C3
€ 13.00
654
654A203507
ref: 654
OIL SEAL,20X35X7
€ 7.50
670
670B2012
ref: 670
O RING,12MM
€ 1.00
