FUEL TANK ('81 KX80-C1)
KX80-C1 KX80 1981 USA CANADA

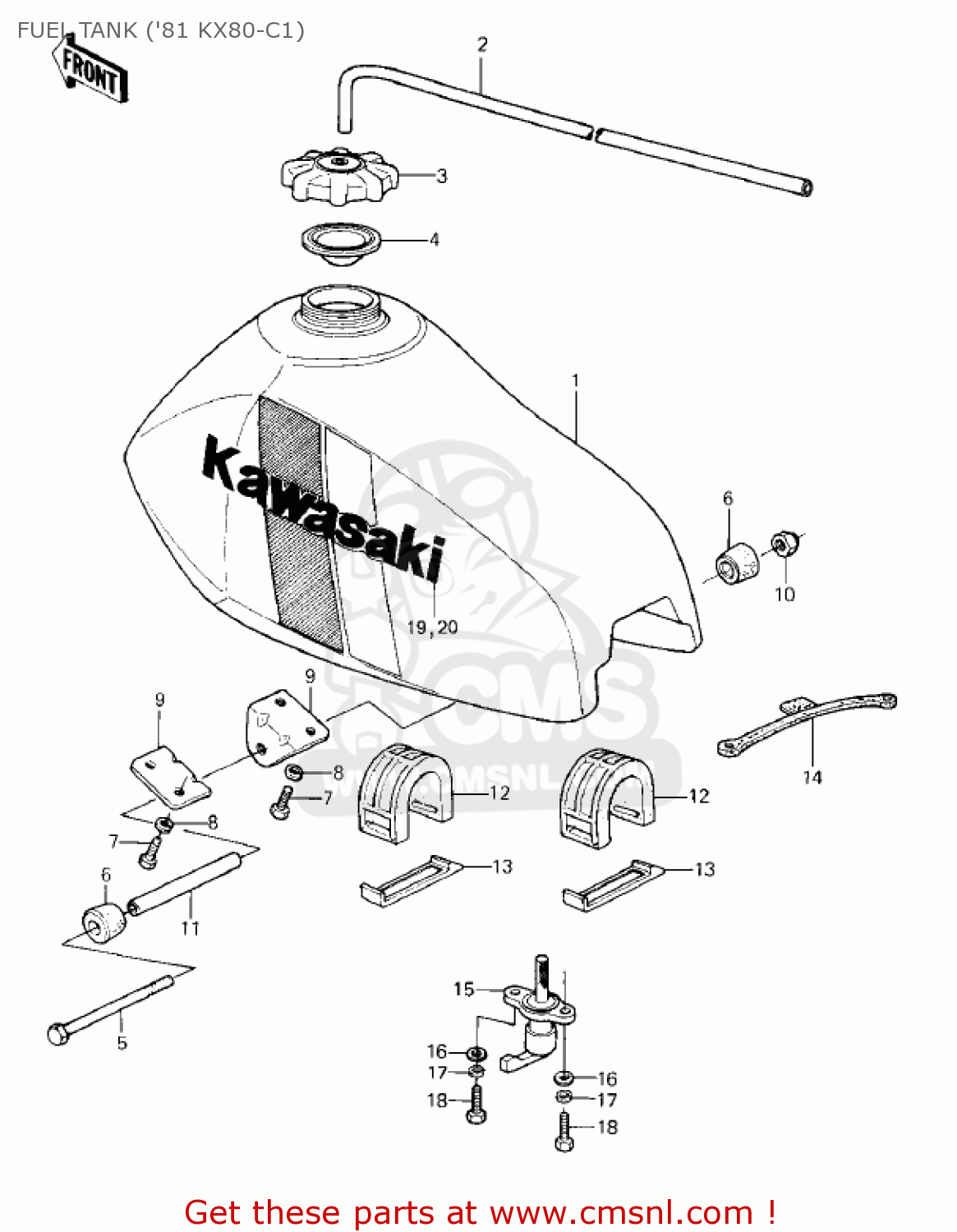

Fuel tank ('81 kx80-c1) diagram KX80-C1 KX80 1981 USA CANADA
FUEL TANK ('81 KX80-C1) KX80-C1 KX80 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
5100110566W
ref: 1
TANK,FUEL,LIME GREEN
€ 237.00
2
920591109
ref: 2
TUBE,5X5.6X280
€ 3.00
3
510491006
ref: 3
CAP-TANK,FUEL
€ 21.50
4
110091452
ref: 4
GASKET,FUEL TANK CAP (NAS)
€ 15.00
5
110G0690
ref: 5
BOLT,6X90
€ 6.00
6
920751220
ref: 6
DAMPER,FUEL TANK FITT
€ 4.00
7
112G0610
ref: 7
BOLT,6X10
€ 0.50
8
461F0600
ref: 8
WASHER-SPRING,6MM
€ 0.50
9
320521051
ref: 9
BRACKET,FUEL TANK
€ 5.50
10
92019008
ref: 10
NUT-LOCK,6MM
€ 3.00
12
920751151
ref: 12
DAMPER,FUEL TANK
€ 13.00
13
920721013
ref: 13
BAND,FUEL TANK
€ 2.50
14
920721056
ref: 14
BAND,FUEL TANK
€ 6.50
15
510231115
ref: 15
TAP-ASSY,FUEL
€ 37.00
16
411B0600
ref: 16
WASHER-PLAIN,6MM
€ 0.50
17
461F0600
ref: 17
WASHER-SPRING,6MM
€ 0.50
18
112G0616
ref: 18
BOLT UPSET,6X16
€ 1.00
19
560441231
ref: 19
PATTERN-A,TANK,LH
€ 18.50
20
560441232
ref: 20
PATTERN-A,TANK,RH
€ 20.50
