CRANKSHAFT/PISTON ('82 KX80-C2)
KX80-C1 KX80 1981 USA CANADA

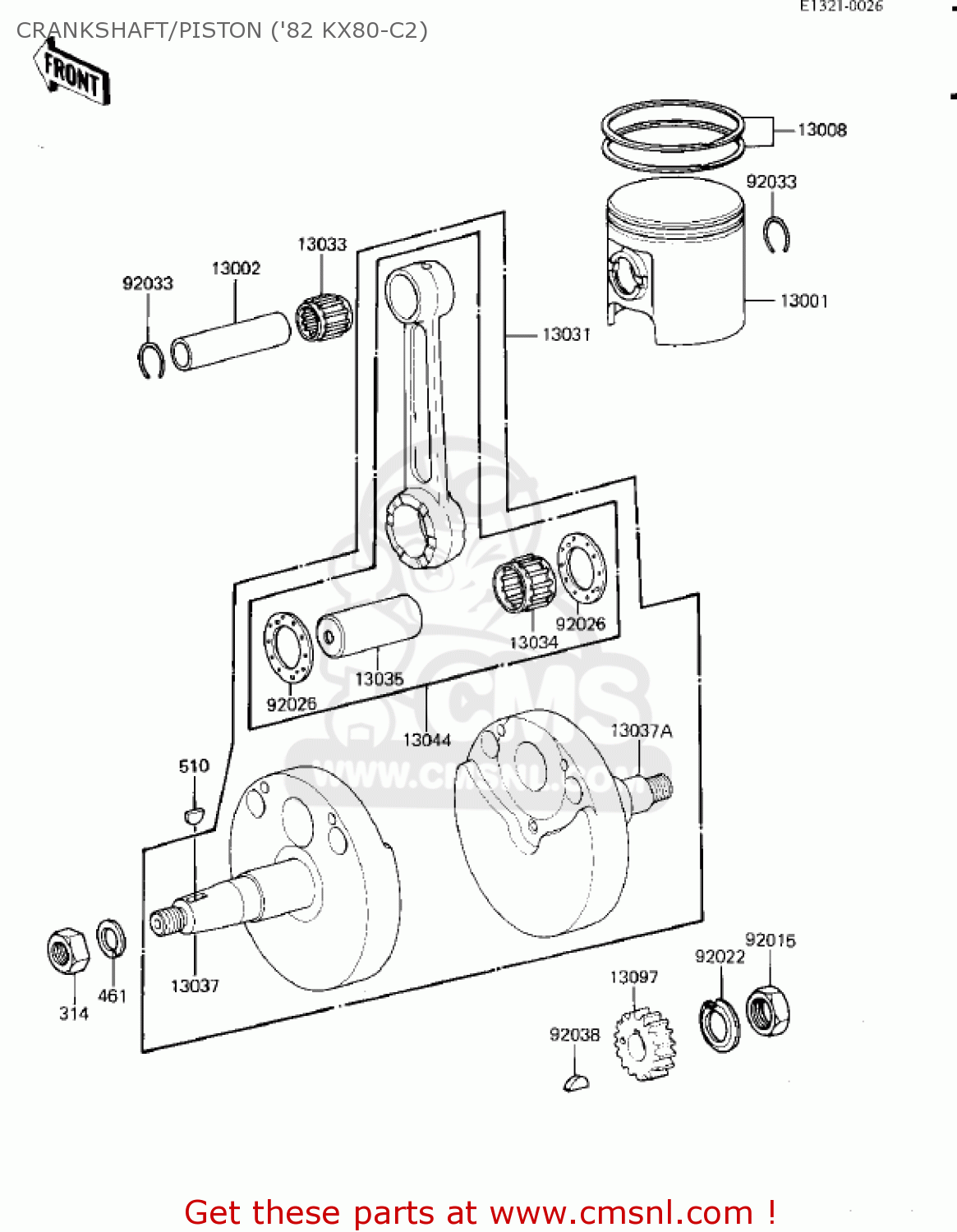

Crankshaft/piston ('82 kx80-c2) diagram KX80-C1 KX80 1981 USA CANADA
CRANKSHAFT/PISTON ('82 KX80-C2) KX80-C1 KX80 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13001
130011082
ref: 13001
PISTON-ENGINE
€ 52.50
13002
130021009
ref: 13002
PIN-PISTON
€ 14.50
13008
130085011
ref: 13008
RING-SET-PISTON,STD
€ 47.50
13031
130311062
ref: 13031
CRANKSHAFT-COMP
€ 233.00
13033
130331003
ref: 13033
BEARING-NEEDLE,14R181
€ 21.00
13034
130341032
ref: 13034
BEARING-BIG END
€ 23.00
13035
130351075
ref: 13035
PIN-CRANK
€ 21.00
13037
130371119
ref: 13037
CRANKSHAFT,LH
€ 110.00
13037A
130371120
ref: 13037A
CRANKSHAFT,RH
€ 142.50
13044
130445031
ref: 13044
SET-CONNECTING ROD
€ 82.50
13097
130971042
ref: 13097
GEAR,PRIMARY,24T
€ 55.50
92015
92015006
ref: 92015
NUT,12MM
€ 3.50
92022
92024003
ref: 92022
WASHER,CLAW,12.5X25X0
€ 2.50
92026
92026011
ref: 92026
SPACER,22.5X37X1.0
€ 6.50
92033
92036003
ref: 92033
CIRCLIP-PISTON PIN
€ 0.50
92038
92038003
ref: 92038
WOODRUFF KEY-PRY PINI
€ 1.50
314
314G1000
ref: 314
NUT,10M/M
€ 1.00
461
461F1000
ref: 461
WASHER-SPRING,10MM
€ 0.50
510
510A3200
ref: 510
KEY-WOODRUFF
€ 1.50
