REAR HUB
KX250-D1 1985 UNITED KINDOM AL

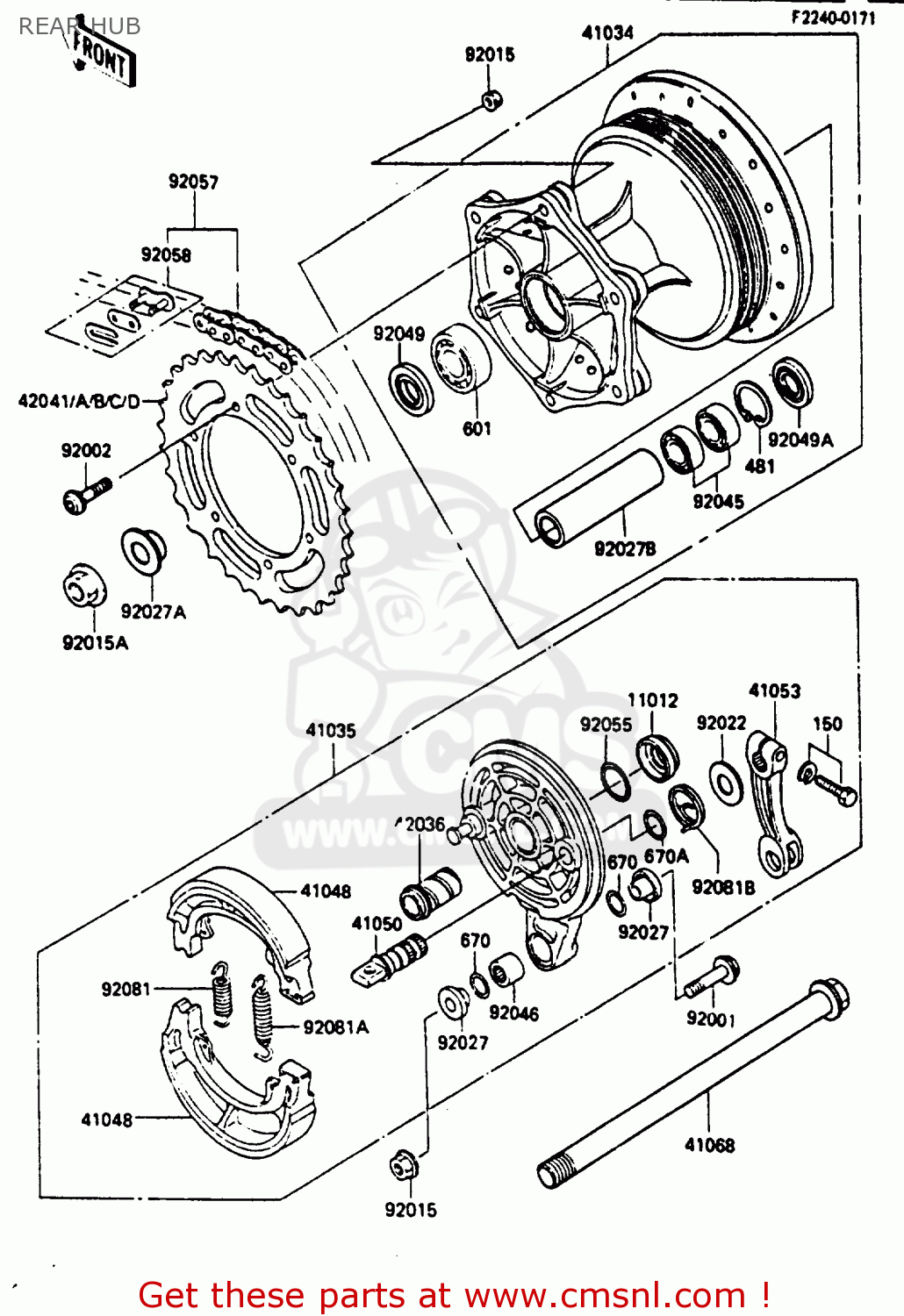

Rear hub diagram KX250-D1 1985 UNITED KINDOM AL
REAR HUB KX250-D1 1985 UNITED KINDOM AL
×
prices are in EUR
ref
part #
description
quantity
11012
110121416
ref: 11012
CAP,RR BRAKE
€ 14.50
41034
410341117
ref: 41034
DRUM-ASSY,RR BRAKE
€ 591.00
41035
410351175
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 487.00
41048
42019010
ref: 41048
SHOE,BRAKE (MCA)
€ 26.00
41050
410501027
ref: 41050
CAM-BRAKE,RR
€ 29.00
41053
410531036
ref: 41053
LEVER-BRAKE CAM,RR
€ 39.00
41068
410681180
ref: 41068
AXLE,RR
€ 101.00
42036
420361143
ref: 42036
SLEEVE,RR BRAKE,L=45
€ 38.00
42041
420411093
ref: 42041
SPROCKET-HUB,50T
€ 78.50
42041A
420411103
ref: 42041A
(OPTION)
SPROCKET-HUB,48T
€ 87.50
42041B
420411104
ref: 42041B
(OPTION)
SPROCKET-HUB,51T
€ 89.00
42041C
420411105
ref: 42041C
(OPTION)
SPROCKET-HUB,49T
€ 75.00
42041D
420411196
ref: 42041D
(OPTION)
SPROCKET-HUB,52T,AL
€ 63.00
92001
920011578
ref: 92001
BOLT,FLANGED,8X40
€ 4.00
92002
920021387
ref: 92002
BOLT,8MM
€ 4.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151461
ref: 92015A
NUT,20MM
€ 17.50
92022
920221402
ref: 92022
WASHER,14X30X0.8
€ 3.00
92027
920271040
ref: 92027
COLLAR,L=11.5
€ 12.50
92027A
920271828
ref: 92027A
COLLAR,RR AXLE,L=20.5
€ 24.00
92027B
920271836
ref: 92027B
COLLAR,L=99
€ 29.50
92045
920451136
ref: 92045
BEARING-BALL,6904LU/2
€ 12.00
92046
920461009
ref: 92046
BEARING-NEEDLE,HK1216
€ 14.50
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
€ 12.00
92049A
920491205
ref: 92049A
SEAL-OIL,BJN 30374
€ 12.00
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92057
920571178
ref: 92057
CHAIN,DRIVE,DID520DS5
€ 59.00
92058
920581013
ref: 92058
JOINT-CHAIN,DRIVE
€ 6.50
92081
41049002
ref: 92081
SPRING-BRAKE SHOE
€ 5.50
92081A
920811550
ref: 92081A
SPRING,BRAKE SHOE
€ 6.00
92081B
920811770
ref: 92081B
SPRING,BRAKE CAM LEVE
€ 3.50
150
150G0622
ref: 150
BOLT-WS
€ 1.50
481
481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
€ 1.50
601
601B6004U
ref: 601
BEARING-BALL,#6004UC3
€ 27.50
670
670B2011
ref: 670
O RING,11MM
€ 1.00
670A
670B2015
ref: 670A
O RING,15MM
€ 1.00
