FRAME FITTING
KX250-D1 1985 UNITED KINDOM AL

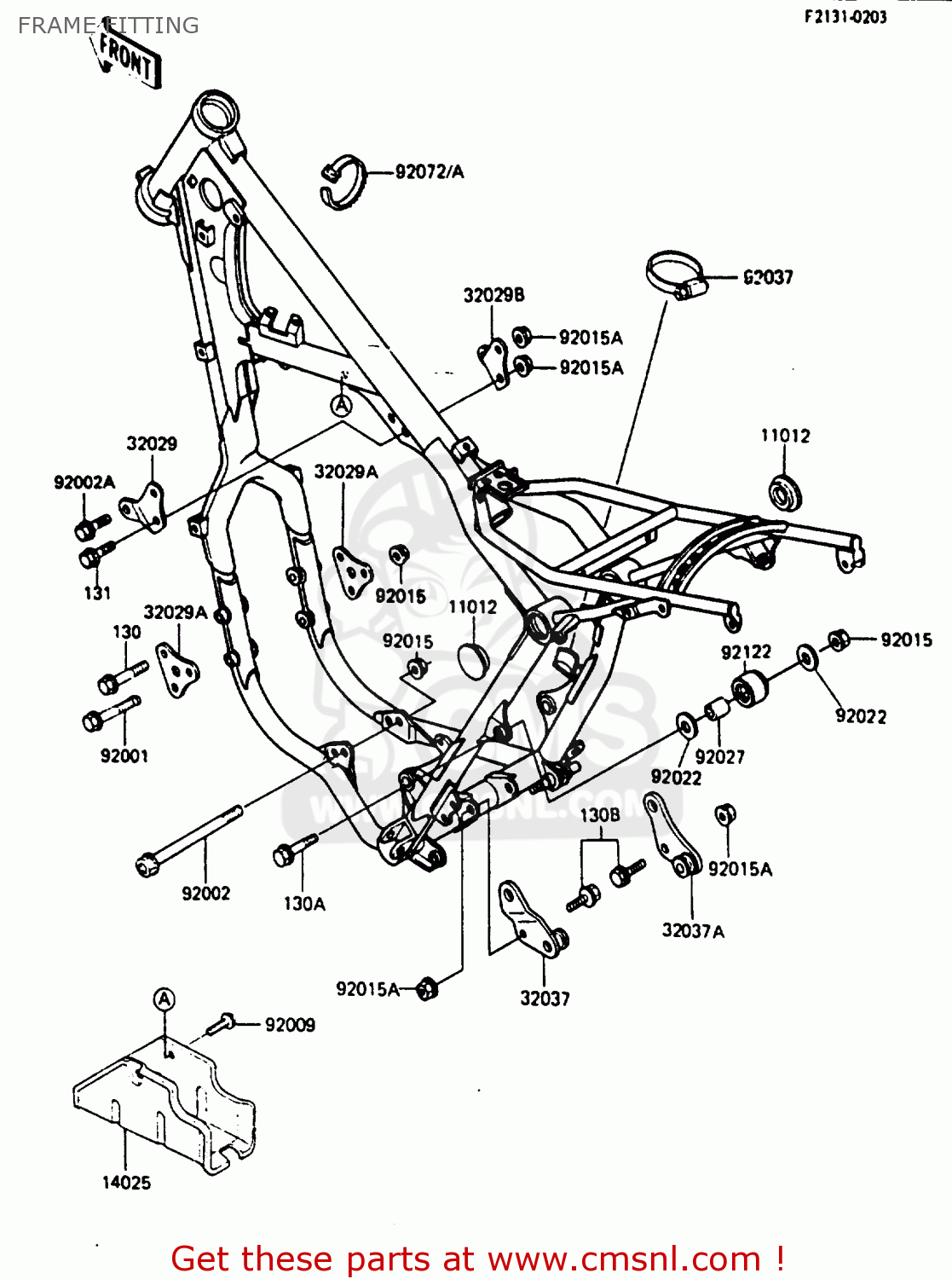

Frame fitting diagram KX250-D1 1985 UNITED KINDOM AL
FRAME FITTING KX250-D1 1985 UNITED KINDOM AL
×
prices are in EUR
ref
part #
description
quantity
11012
110121211
ref: 11012
CAP,UNI-TRAK
€ 3.50
14025
140251993
ref: 14025
COVER,AIR FILTER DUCT
€ 12.50
32029
320291272
ref: 32029
BRACKET-ENGINE,UPP,LH
€ 20.00
32029A
320291361
ref: 32029A
BRACKET-ENGINE,FR
€ 24.50
32029B
320291362
ref: 32029B
BRACKET-ENGINE,UPP,RH
€ 15.00
32037
320371334
ref: 32037
BRACKET-SHOCKABSORBER
€ 24.00
32037A
320371335
ref: 32037A
BRACKET-SHOCKABSORBER
€ 24.00
92001
920011755
ref: 92001
BOLT,FLANGED,8X75
€ 6.00
92002
920021543
ref: 92002
BOLT
€ 6.00
92002A
920021544
ref: 92002A
BOLT
€ 4.50
92009
920091286
ref: 92009
SCREW,6X10
€ 2.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151234
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92022
920221629
ref: 92022
WASHER,8.5X22X1.5
€ 4.00
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92037
920371586
ref: 92037
CLAMP,RESERVE TANK
€ 5.00
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92122
921221117
ref: 92122
ROLLER,CHAIN GUIDE
€ 46.50
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
130A
130G0850
ref: 130A
BOLT,8X50
€ 1.00
130B
130P1020
ref: 130B
BOLT-FLANGED,10X20
€ 1.50
131
131G1055
ref: 131
BOLT-FLANGED,10X55
€ 2.00
