KICKSTARTER MECHANISM
KX250-D1 1985 UNITED KINDOM AL

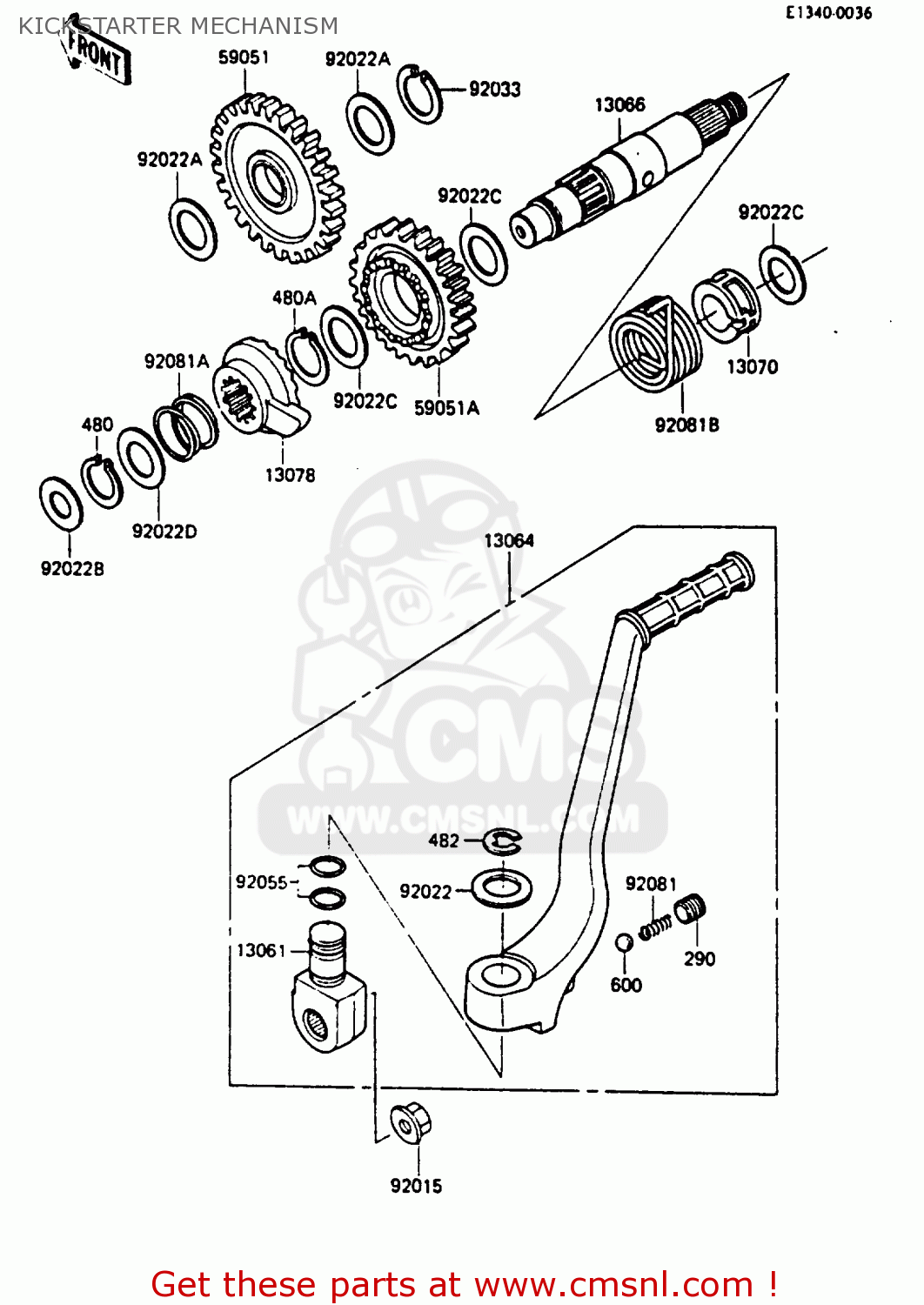

Kickstarter mechanism diagram KX250-D1 1985 UNITED KINDOM AL
KICKSTARTER MECHANISM KX250-D1 1985 UNITED KINDOM AL
×
prices are in EUR
ref
part #
description
quantity
13061
130611113
ref: 13061
BOSS,KICK PEDAL
€ 54.00
13064
130641105
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 161.50
13066
130661052
ref: 13066
SHAFT-KICK
€ 109.50
13070
130701063
ref: 13070
GUIDE,KICK SPRING
€ 14.00
13078
130781007
ref: 13078
RATCHET
€ 50.50
59051
590511022
ref: 59051
GEAR-SPUR,30T
€ 72.50
59051A
590511051
ref: 59051A
GEAR-SPUR,KICKSTARTER
€ 78.00
92015
920151172
ref: 92015
NUT,FLANGED,10MM
€ 3.00
92022
920221205
ref: 92022
WASHER,16.3X24X1
€ 2.50
92022A
92022252
ref: 92022A
WASHER
€ 4.00
92022B
92022269
ref: 92022B
WASHER,PLAIN
€ 1.00
92022C
92022271
ref: 92022C
WASHER,PLAIN
€ 3.50
92022D
92022315
ref: 92022D
WASHER, 16.8X22X0.5
€ 4.00
92033
92033029
ref: 92033
CIRCLIP,18MM
€ 6.50
92055
92055025
ref: 92055
'O' RING
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081122
ref: 92081A
SPRING,RATCHET
€ 6.00
92081B
920811253
ref: 92081B
SPRING,KICKSTARTER
€ 12.50
290
290P0816
ref: 290
SCREW-SET-SOCKET
€ 2.50
480
480J1600
ref: 480
CIRCLIP-TYPE-C,16MM
€ 2.50
480A
480J1800
ref: 480A
CIRCLIP-TYPE-C,18MM
€ 1.00
482
482L0200
ref: 482
CIRCLIP-TYPE-E
€ 1.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
