FRONT FORK
KX250-D1 1985 UNITED KINDOM AL

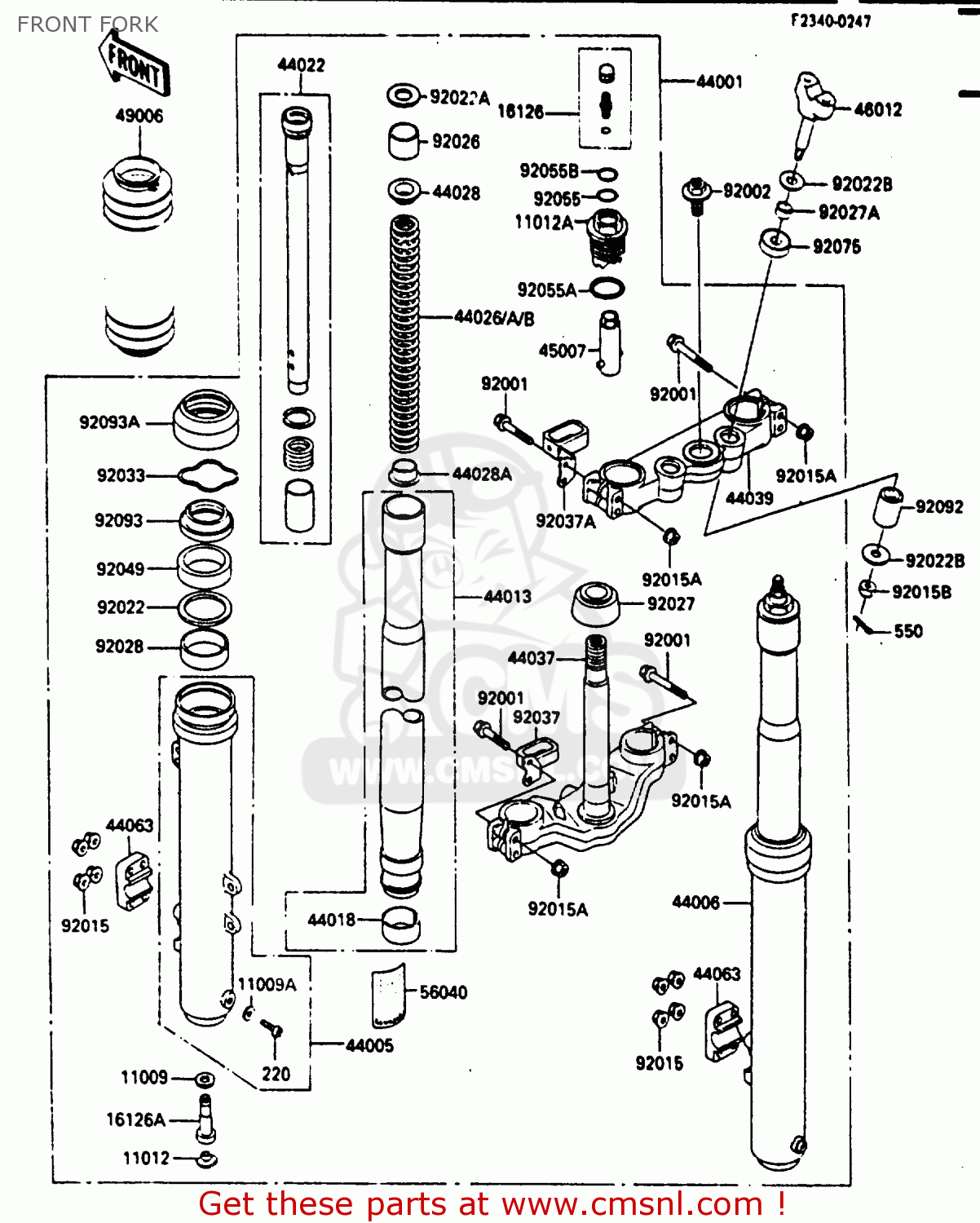

Front fork diagram KX250-D1 1985 UNITED KINDOM AL
FRONT FORK KX250-D1 1985 UNITED KINDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091324
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 3.50
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
11012A
110121439
ref: 11012A
CAP
€ 51.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
16126A
161261134
ref: 16126A
VALVE,FORK CYLINDER
€ 121.50
44001
440011561
ref: 44001
FORK-FRONT
€ 990.00
44005
440051224
ref: 44005
PIPE-LEFT FORK OUTER
€ 111.50
44006
440061224
ref: 44006
PIPE-RIGHT FORK OUTER
€ 207.50
44013
440131223
ref: 44013
PIPE-FORK INNER
€ 227.00
44018
440181005
ref: 44018
BUSHING-FRONT FORK,IN
€ 24.00
44022
440221174
ref: 44022
CYLINDER-FORK
€ 96.50
44026
440261292
ref: 44026
(OPTION)
SPRING-FRONT FORK,K=0
€ 56.50
44026A
440261293
ref: 44026A
SPRING-FRONT FORK
€ 56.50
44026B
440261294
ref: 44026B
(OPTION)
SPRING-FRONT FORK
€ 53.50
44028
440281010
ref: 44028
GUIDE-FORK SPRING
€ 7.00
44028A
440281054
ref: 44028A
GUIDE-FORK SPRING
€ 4.00
44037
440371177
ref: 44037
HOLDER-FORK UNDER
€ 264.00
44039
440391120
ref: 44039
HOLDER-FORK UPPER
€ 141.00
44063
440631008
ref: 44063
HOLDER-FRONT AXLE
€ 31.00
45007
450071055
ref: 45007
ADJUSTER-SPRING,FRONT
€ 37.00
46012
460121124
ref: 46012
HOLDER-HANDLE,LWR
€ 13.00
49006
490061178
ref: 49006
(OPTION)
BOOT,FORK
€ 62.50
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
920011639
ref: 92001
BOLT
€ 4.50
92002
920021399
ref: 92002
BOLT,FORK TOP
€ 25.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151485
ref: 92015A
NUT,FLANGED,8MM
€ 3.50
92015B
92019021
ref: 92015B
NUT,LOCK,10M/M
€ 2.00
92022
920221299
ref: 92022
WASHER
€ 5.50
92022A
920221665
ref: 92022A
WASHER,FORK SPRING
€ 2.50
92022B
92022196
ref: 92022B
WASHER,10.5X30X2
€ 2.00
92026
920261247
ref: 92026
SPACER,FORK SPRING
€ 6.50
92027
920271421
ref: 92027
COLLAR
€ 41.50
92027A
920271850
ref: 92027A
COLLAR,10.5X15.1X6
€ 3.50
92028
920281145
ref: 92028
BUSHING
€ 19.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92037
920371627
ref: 92037
CLAMP
€ 19.50
92037A
920371628
ref: 92037A
CLAMP
€ 12.50
92049
920491104
ref: 92049
SEAL-OIL,FORK OUTER T
€ 13.50
92055
920551062
ref: 92055
RING-O,FORK TOP CAP
€ 3.00
92055A
920551123
ref: 92055A
RING-O
€ 4.00
92055B
920551368
ref: 92055B
RING-O
€ 11.00
92075
920751725
ref: 92075
DAMPER,HANDLE HOLDER
€ 2.50
92092
920921053
ref: 92092
BUSHING-RUBBER
€ 33.50
92093
920931086
ref: 92093
SEAL,FORK DUST
€ 12.50
92093A
920931184
ref: 92093A
SEAL,FORK
€ 12.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
550
550D2020
ref: 550
PIN-COTTER,2.0X20
€ 0.50
