ENGINE COVER
KX250-D1 1985 UNITED KINDOM AL

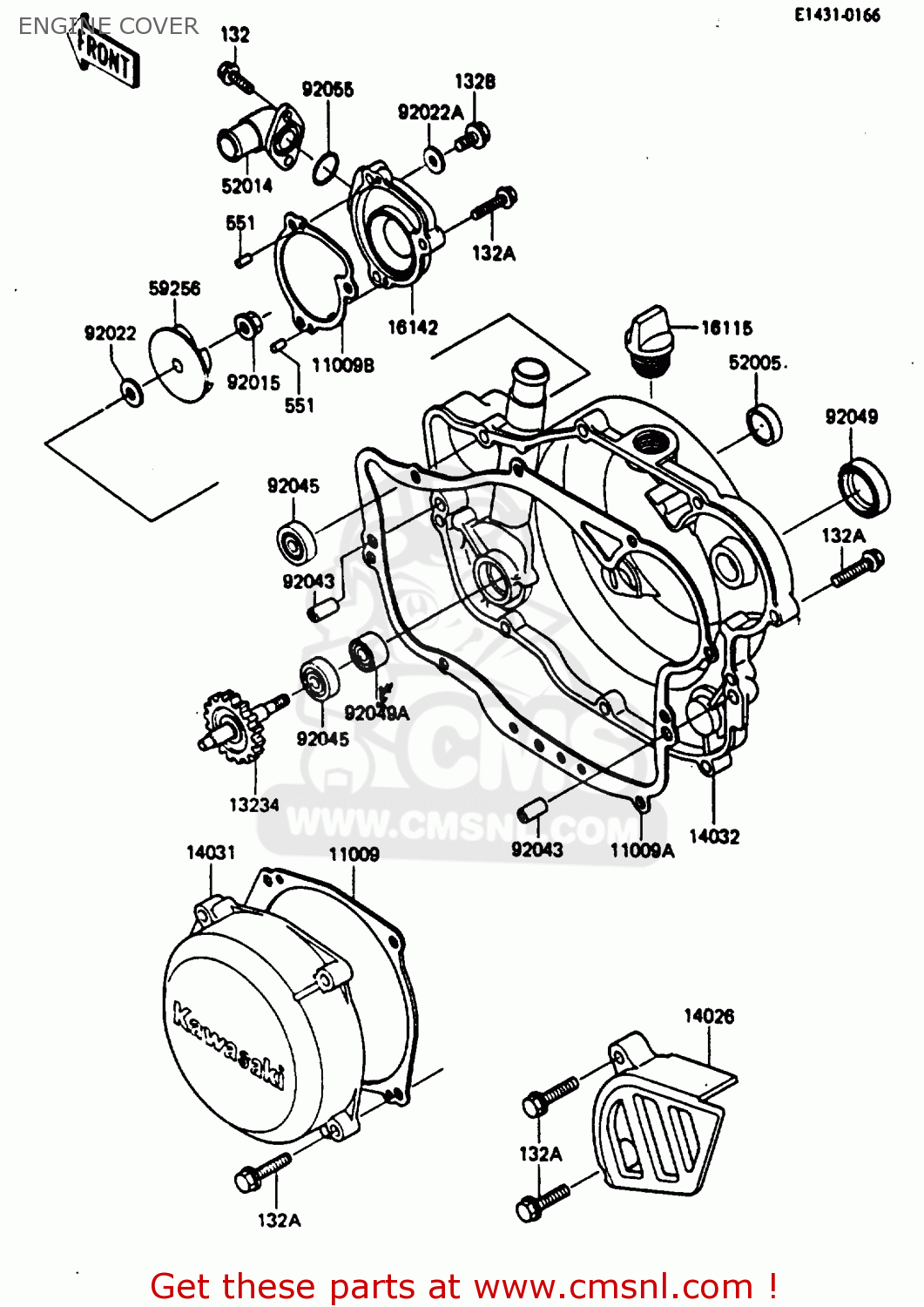

Engine cover diagram KX250-D1 1985 UNITED KINDOM AL
ENGINE COVER KX250-D1 1985 UNITED KINDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091319
ref: 11009
GASKET,GENERATOR COVE (MCA)
€ 8.50
11009A
110091463
ref: 11009A
GASKET,CLUTCH COVER (MCA)
€ 17.50
11009B
110091464
ref: 11009B
GASKET,WATER PUMP COV (MCA)
€ 5.50
13234
132341009
ref: 13234
SHAFT-COMP,WATER PUMP
€ 37.50
14026
140261119
ref: 14026
COVER-CHAIN
€ 12.50
14031
140311104
ref: 14031
COVER-GENERATOR
€ 54.50
14032
140321183
ref: 14032
COVER-CLUTCH
€ 180.00
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
16142
161421059
ref: 16142
COVER-PUMP,WATER
€ 30.50
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
52014
520141004
ref: 52014
ELBOW,CYLINDER
€ 25.50
59256
592561002
ref: 59256
IMPELLER,WATER PUMP
€ 24.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
920221393
ref: 92022
WASHER,6X14X2
€ 2.50
92022A
920221488
ref: 92022A
WASHER,8.2X14X1
€ 3.00
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
920451048
ref: 92045
BEARING-BALL,#608
€ 11.50
92049
92049013
ref: 92049
OIL SEAL,SB18307
€ 9.50
92049A
920491081
ref: 92049A
SEAL-OIL,A9567
€ 12.50
92055
92055055
ref: 92055
'0'RING
€ 2.50
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132G0810
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
551
551A0408
ref: 551
PIN-DOWEL,4X8
€ 0.50
