CRANKCASE
KX250-D1 1985 UNITED KINDOM AL

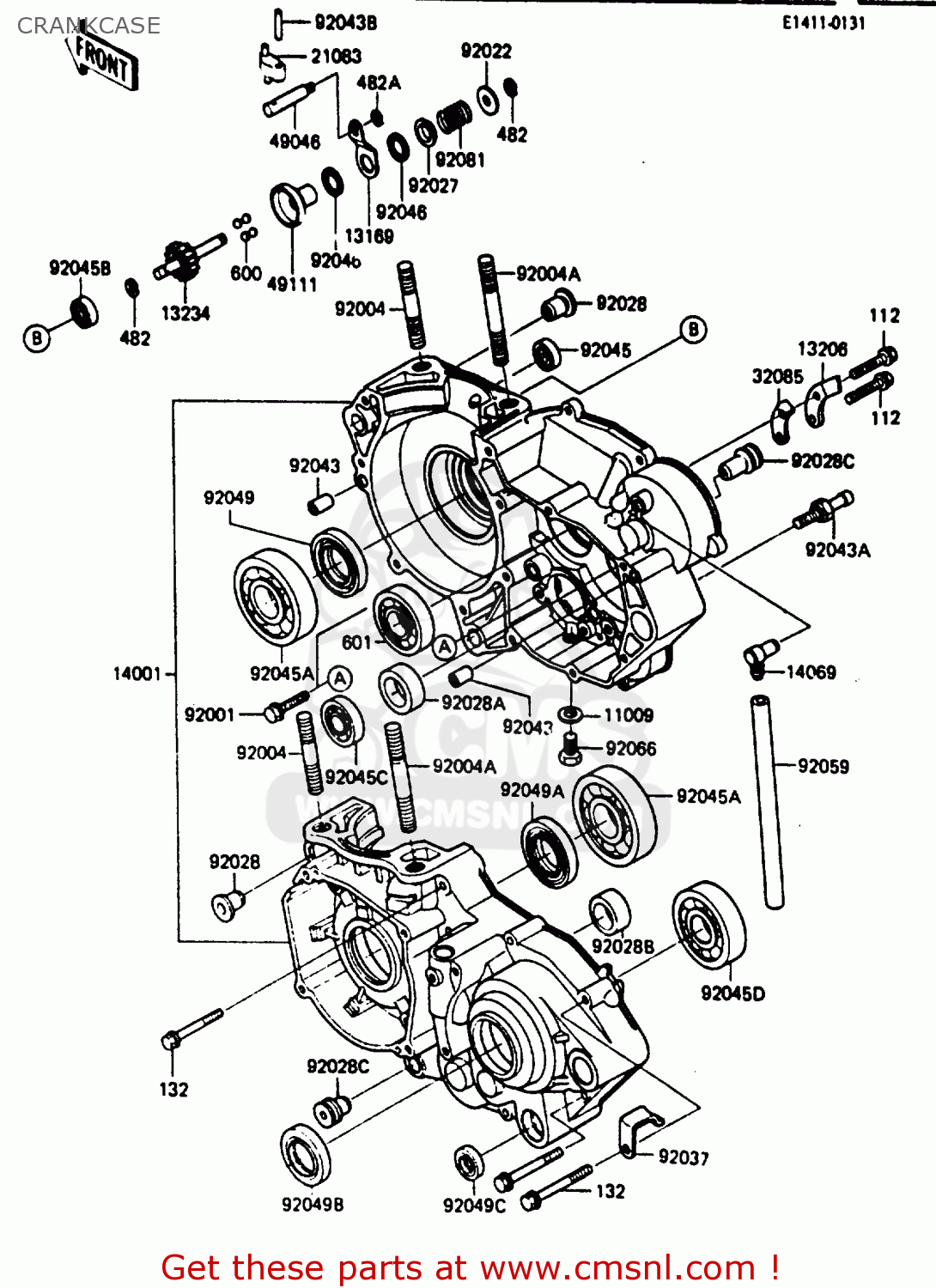

Crankcase diagram KX250-D1 1985 UNITED KINDOM AL
CRANKCASE KX250-D1 1985 UNITED KINDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
13169
131691872
ref: 13169
PLATE
€ 3.50
13206
132061052
ref: 13206
GUIDE-KICK
€ 7.50
13234
132341053
ref: 13234
SHAFT-COMP,WATER PUMP
€ 39.00
14001
140015185
ref: 14001
SET-CRANKCASE
€ 491.00
14069
14069003
ref: 14069
BREATHER
€ 7.00
21083
210831053
ref: 21083
ARM
€ 60.00
32085
320851016
ref: 32085
STOPPER,KICKSTARTER
€ 5.50
49046
490461051
ref: 49046
ROD-GOVERNOR
€ 13.00
49111
491111051
ref: 49111
HOLDER-GOVERNOR WEIGH
€ 44.00
92001
920011820
ref: 92001
BOLT,12X300
€ 19.50
92004
920041065
ref: 92004
STUD,10X45
€ 4.50
92004A
920041065
ref: 92004A
STUD,10X45
€ 4.50
92022
920221634
ref: 92022
WASHER,8.3X28X1.6
€ 2.50
92027
920271833
ref: 92027
COLLAR,6.8X10X17
€ 3.50
92028
920281133
ref: 92028
BUSHING
€ 9.50
92028A
92028131
ref: 92028A
BUSHING
€ 28.00
92028B
92028132
ref: 92028B
BUSHING
€ 28.00
92028C
920281366
ref: 92028C
BUSHING
€ 15.50
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
920431055
ref: 92043A
PIN,CHANGE PEDAL
€ 4.00
92043B
920431258
ref: 92043B
PIN,4X32
€ 3.00
92045
920451010
ref: 92045
BEARING,BALL 626
€ 11.00
92045A
920451024
ref: 92045A
BEARING-BALL,#6305SH2
€ 45.50
92045B
920451048
ref: 92045B
BEARING-BALL,#608
€ 11.50
92045C
920451058
ref: 92045C
BEARING-BALL,6905Z
€ 36.50
92045D
920451115
ref: 92045D
BEARING-BALL,6205
€ 23.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92049
920491051
ref: 92049
OIL SEAL,TCJ25457
€ 22.50
92049A
920491052
ref: 92049A
OIL SEAL,TCJ20407
€ 19.50
92049B
92050033
ref: 92049B
SEAL-OIL,TB3040
€ 14.00
92049C
92051003
ref: 92049C
OIL SEAL TB16267
€ 6.00
92059
92059061
ref: 92059
PIPE-BREATHER
€ 3.00
92066
92067001
ref: 92066
PLUG-OIL DRAIN
€ 3.00
92081
920811844
ref: 92081
SPRING,GOVERNOR
€ 2.00
112
112G0618
ref: 112
BOLT-UPSET
€ 0.50
132
132G0640
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
482
482J6000
ref: 482
CIRCLIP-TYPE-E,6MM
€ 0.50
482A
482K4000
ref: 482A
CIRCLIP-TYPE-E,4MM
€ 0.50
600
600A1000
ref: 600
BALL-STEEL,5/16
€ 0.50
601
601B6204
ref: 601
BEARING-BALL,#6204C3
€ 8.00
