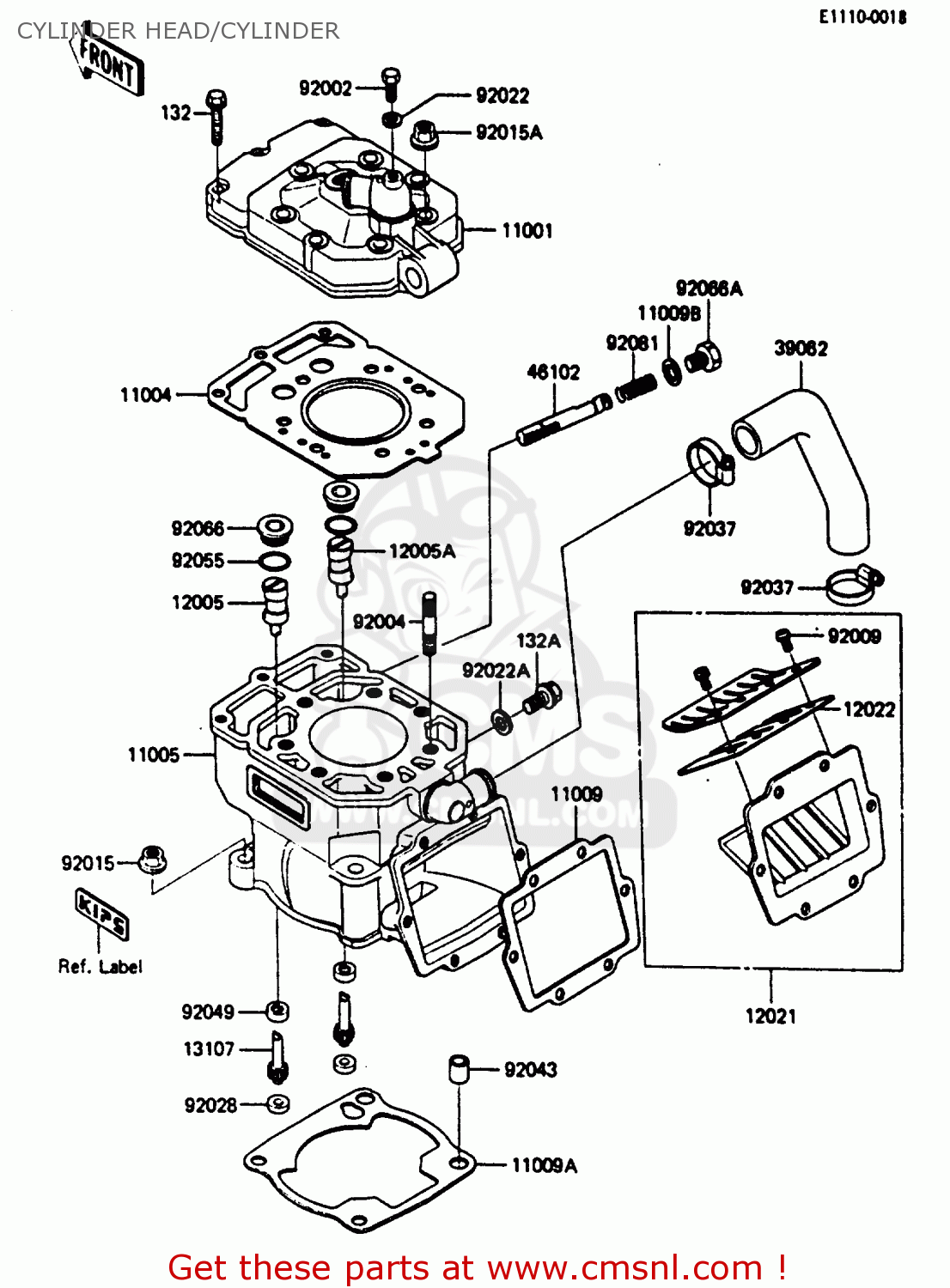

CYLINDER HEAD/CYLINDER

ref

part #

description

quantity

11001

110011188
ref: 11001

HEAD-CYLINDER

€ 81.50

11004

110041126
ref: 11004

GASKET-HEAD,CYLINDER (MCA)

€ 30.00

11005

110051415
ref: 11005

CYLINDER-ENGINE

€ 688.00

11009

110091252
ref: 11009

GASKET,REED VALVE (MCA)

€ 7.50

11009A

110091462
ref: 11009A

GASKET,CYLINDER BASE (MCA)

€ 6.50

11009B

92065058
ref: 11009B

GASKET, 10,5X16X1 (NAS)

€ 2.50

12005

120051059
ref: 12005

VALVE-EXHAUST,LH

€ 53.50

12005A

120051061
ref: 12005A

VALVE-EXHAUST,RH

€ 48.00

12021

120211058
ref: 12021

VALVE-ASSY-REED

€ 108.50

12022

120221017
ref: 12022

VALVE-REED

€ 19.50

13107

131071139
ref: 13107

SHAFT,EXHAUST VALVE

€ 19.50

39062

390621105
ref: 39062

HOSE-COOLING

€ 8.00

46102

461021132
ref: 46102

ROD,GOVERNOR

€ 31.00

92002

920021222
ref: 92002

BOLT,6X10

€ 5.50

92004

920041139
ref: 92004

STUD,8X40

€ 3.00

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92015

92015077
ref: 92015

NUT, 10MM

€ 3.00

92015A

920151143
ref: 92015A

NUT,8MM

€ 0.50

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92022A

920221488
ref: 92022A

WASHER,8.2X14X1

€ 3.00

92028

920281342
ref: 92028

BUSHING,6X13X5

€ 6.50

92037

920371589
ref: 92037

CLAMP,COOLING HOSE

€ 13.00

92043

92042028
ref: 92043

PIN-DOWEL

€ 1.00

92049

920491208
ref: 92049

SEAL-OIL,SO6134

€ 8.00

92055

92055022
ref: 92055

'O' RING

€ 4.00

92066

920661193
ref: 92066

PLUG,EXHAUST VALVE

€ 13.00

92066A

92067001
ref: 92066A

PLUG-OIL DRAIN

€ 3.00

92081

920811789
ref: 92081

SPRING,ROD

€ 3.00

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132G0810
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50
