SUSPENSION
KX250-C2 1984 USA CANADA UK AL

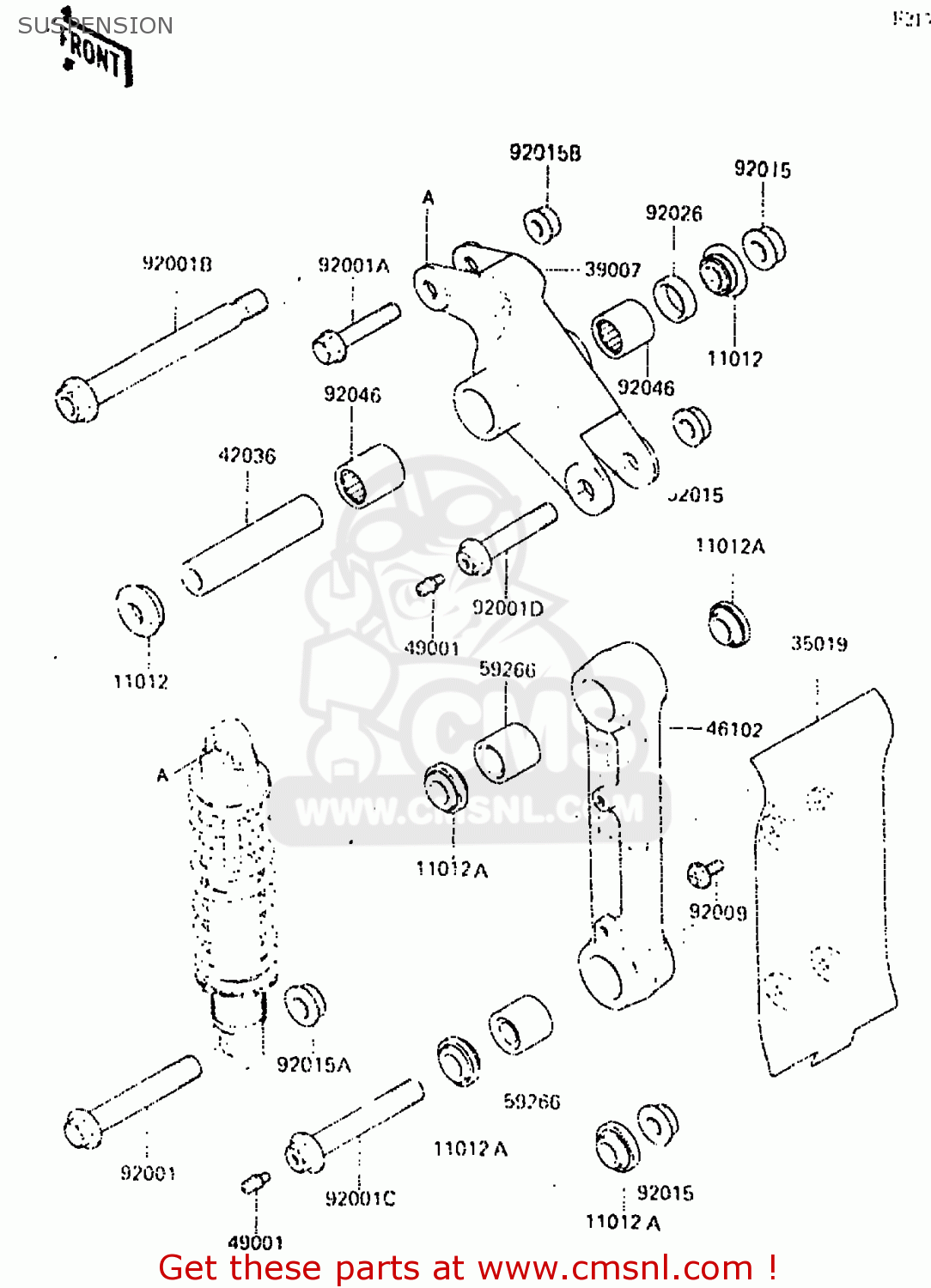

Suspension diagram KX250-C2 1984 USA CANADA UK AL
SUSPENSION KX250-C2 1984 USA CANADA UK AL
×
prices are in EUR
ref
part #
description
quantity
11012
110121207
ref: 11012
CAP
€ 12.00
11012A
110121258
ref: 11012A
CAP,ROD
€ 12.50
35019
350191112
ref: 35019
FLAP,ROD
€ 12.50
39007
390071052
ref: 39007
ARM-SUSP,UNI TRAK
€ 122.00
42036
420361119
ref: 42036
SLEEVE,SUSPENSION ARM
€ 23.00
46102
461021112
ref: 46102
ROD,UNI TRAK,L=197
€ 302.00
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
€ 2.00
59266
592661052
ref: 59266
JOINT-BALL,SB142820E0
€ 66.00
92001
920011693
ref: 92001
BOLT,FLANGED,12X88
€ 11.00
92001A
920011913
ref: 92001A
BOLT,10X50
€ 4.00
92001B
920011923
ref: 92001B
BOLT,14X143
€ 24.00
92001C
920011972
ref: 92001C
BOLT,14X82
€ 13.50
92001D
920011973
ref: 92001D
BOLT,14X60
€ 8.50
92009
920091286
ref: 92009
SCREW,6X10
€ 2.50
92015
920151032
ref: 92015
NUT,14M/M
€ 6.50
92015A
920151156
ref: 92015A
NUT,12MM
€ 4.50
92015B
920151234
ref: 92015B
NUT,FLANGED,10MM
€ 3.00
92026
920261203
ref: 92026
SPACER,SUSPENSION ARM
€ 4.00
92046
920461031
ref: 92046
BEARING-NEEDLE,HMK203
€ 20.50
