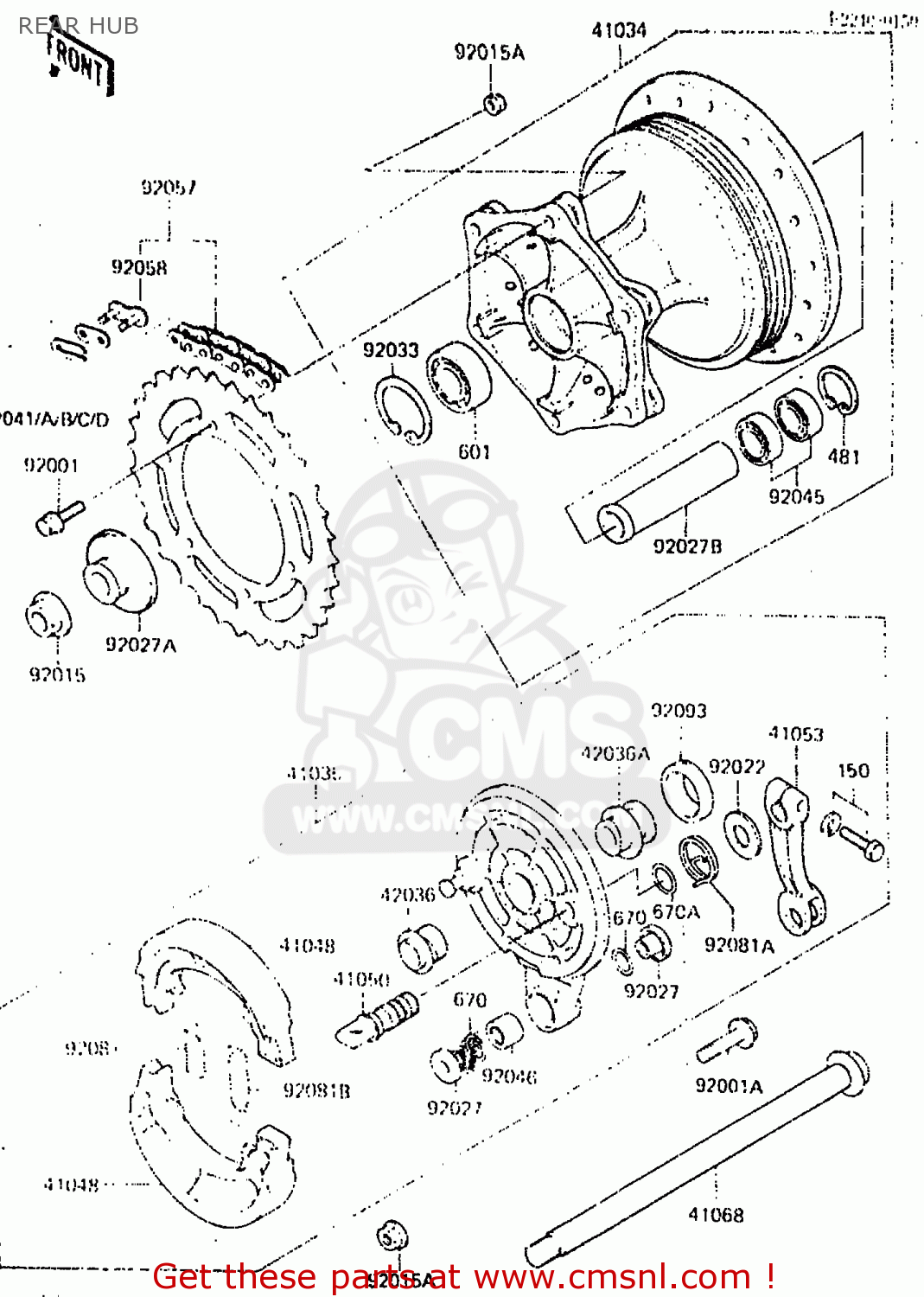

REAR HUB

ref

part #

description

quantity

41034

410341102
ref: 41034

DRUM-ASSY,RR

€ 317.50

41035

410351152
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 330.50

41048

42019010
ref: 41048

SHOE,BRAKE (MCA)

€ 26.00

41050

410501027
ref: 41050

CAM-BRAKE,RR

€ 29.00

41053

410531034
ref: 41053

LEVER-BRAKE CAM,RR

€ 84.00

41068

410681166
ref: 41068

AXLE,RR,L=283

€ 99.50

42036

420361052
ref: 42036

SLEEVE

€ 44.00

42036A

420361106
ref: 42036A

SLEEVE,RH,L=27.5

€ 48.50

42041

420411044
ref: 42041
(OPTION)

REAR SPROCKET,52T

€ 104.50

42041A

420411079
ref: 42041A
(OPTION)

SPROCKET-HUB,51T

€ 64.50

42041B

420411125
ref: 42041B
(OPTION)

SPROCKET-HUB,48T

€ 76.00

42041C

420411132
ref: 42041C

SPROCKET-HUB,50T

€ 88.00

42041D

420411183
ref: 42041D
(OPTION)

SPROCKET-HUB,49T

€ 66.50

92001

920011040
ref: 92001

BOLT,HEX HEAD,8X32

€ 5.50

92001A

920011578
ref: 92001A

BOLT,FLANGED,8X40

€ 4.00

92015

920151015
ref: 92015

NUT,16MM

€ 13.50

92015A

920151143
ref: 92015A

NUT,8MM

€ 0.50

92022

920221402
ref: 92022

WASHER,14X30X0.8

€ 3.00

92027

920271040
ref: 92027

COLLAR,L=11.5

€ 12.50

92027A

920271543
ref: 92027A

COLLAR,L=23.5

€ 25.00

92027B

920271748
ref: 92027B

COLLAR,L=99

€ 49.00

92033

920331040
ref: 92033

RING,SNAP,40M/M

€ 4.00

92045

920451002
ref: 92045

BEARING,B,6003VC3

€ 21.50

92046

920461009
ref: 92046

BEARING-NEEDLE,HK1216

€ 14.50

92057

920571108
ref: 92057

CHAIN,114L

€ 103.50

92058

920581013
ref: 92058

JOINT-CHAIN,DRIVE

€ 6.50

92081

41049002
ref: 92081

SPRING-BRAKE SHOE

€ 5.50

92081A

920811520
ref: 92081A

SPRING,BRAKE LEVER

€ 4.00

92081B

920811550
ref: 92081B

SPRING,BRAKE SHOE

€ 6.00

92093

920931004
ref: 92093

OIL SEAL

€ 3.50

150

150G0622
ref: 150

BOLT-WS

€ 1.50

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6203U
ref: 601

BEARING-BALL,#6203LUC

€ 35.50

670

670B2011
ref: 670

O RING,11MM

€ 1.00

670A

670B2015
ref: 670A

O RING,15MM

€ 1.00

all assemblies
