GEAR CHANGE MECHANISM

KX250-C2 1984 USA CANADA UK AL

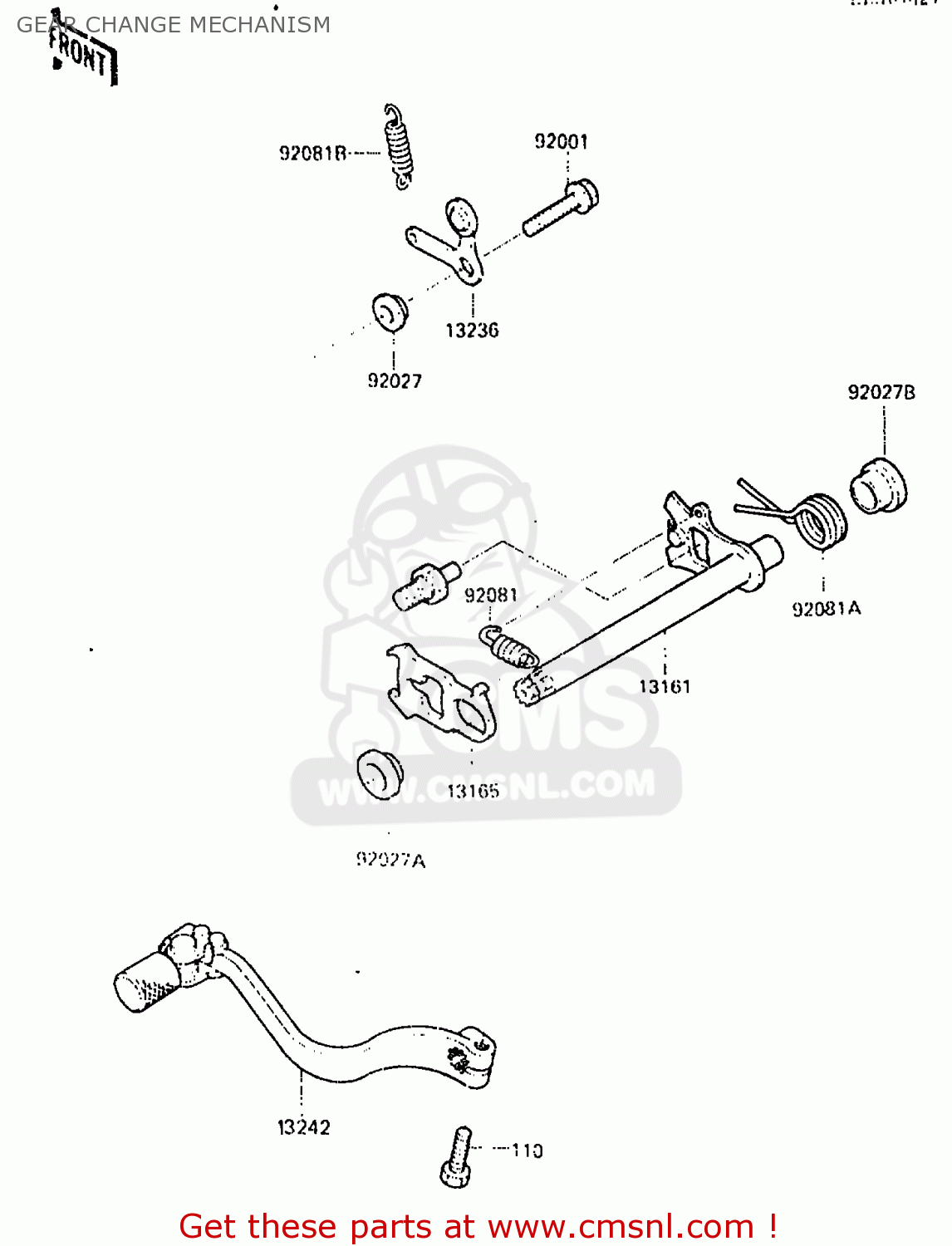

Gear change mechanism diagram KX250-C2 1984 USA CANADA UK AL

prices are in EUR

ref

part #

description

quantity

13161

131611109
ref: 13161

LEVER-COMP-CHANGE SHA

€ 41.00

13165

131651101
ref: 13165

PAWL,CHANGE LEVER

€ 7.00

13236

132361021
ref: 13236

LEVER,CHANGE DRUM

€ 7.50

13242

132421166
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 39.00

92001

920011628
ref: 92001

BOLT,FLANGED,6X16

€ 1.00

92027

920271248
ref: 92027

COLLAR

€ 3.50

92027A

920271512
ref: 92027A

COLLAR,CHANGE SHAFT,L

€ 8.00

92027B

920271682
ref: 92027B

COLLAR,RETURN SPRING

€ 6.00

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92081A

920811716
ref: 92081A

SPRING,CHANGE SHAFT R

€ 6.50

92081B

92083012
ref: 92081B

SPRING,CHNG DRUM LEV

€ 3.00

110

110G0620
ref: 110

BOLT-HEX HEAD,6X20

€ 1.00
