CARBURETOR
KX250-C2 1984 USA CANADA UK AL

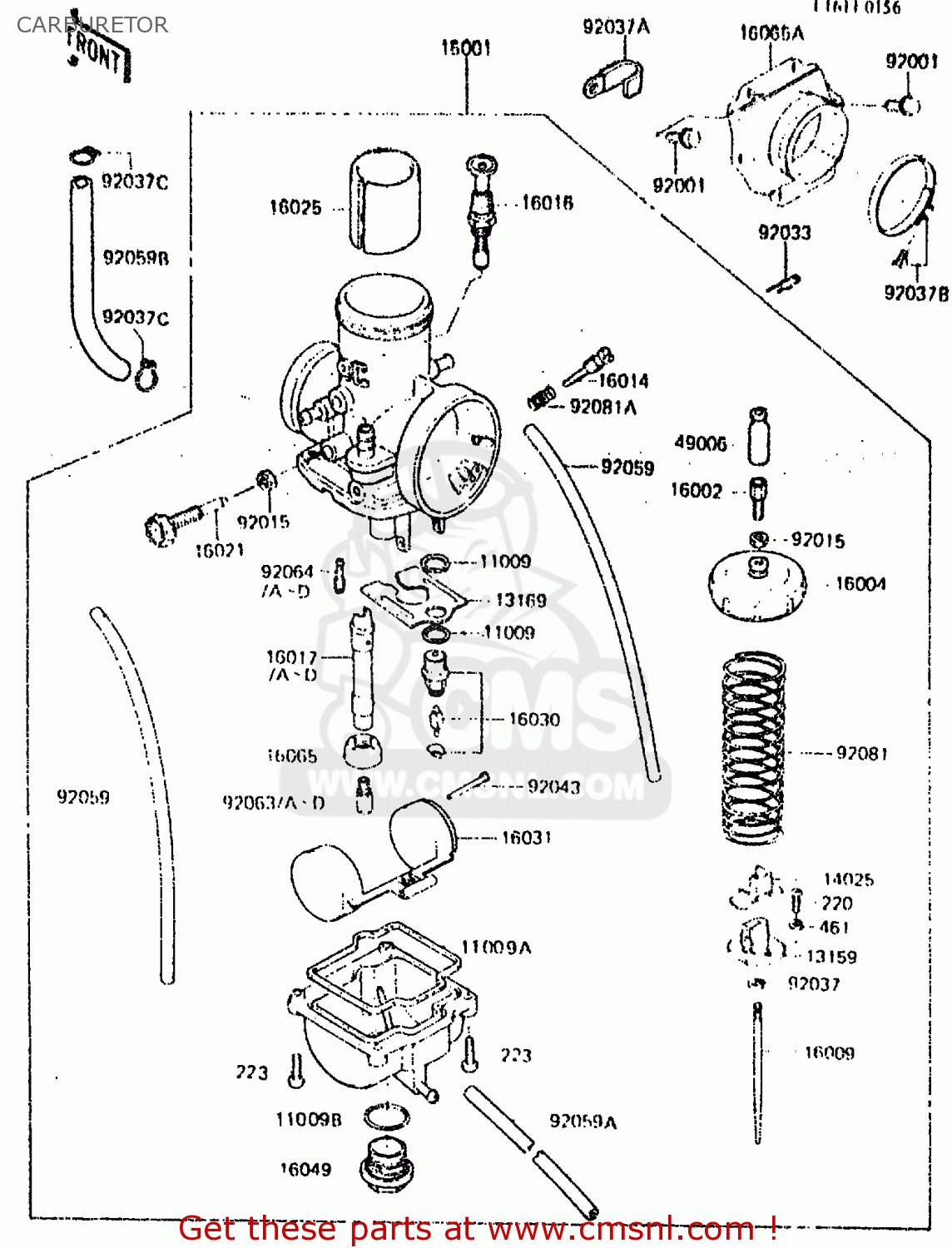

Carburetor diagram KX250-C2 1984 USA CANADA UK AL
CARBURETOR KX250-C2 1984 USA CANADA UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091076
ref: 11009
GASKET,FLOAT VALVE (NAS)
€ 2.00
11009A
16019028
ref: 11009A
GASKET,FLOAT CHAMBER (NAS)
€ 11.50
11009B
16038009
ref: 11009B
GASKET,MAIN JET COVER
€ 5.50
13159
131591004
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13169
131691520
ref: 13169
PLATE,FLOAT CHAMBER
€ 7.50
14025
140251478
ref: 14025
COVER,THROTTLE
€ 5.50
15001
160011927
ref: 15001
CARBURETOR
€ 271.50
16002
16002011
ref: 16002
CABLE ADJUSTER
€ 9.50
16004
16004026
ref: 16004
CAP-CHAMBER,MIXING
€ 31.00
16009
160091225
ref: 16009
NEEDLE-JET,6J04
€ 19.50
16014
16014006
ref: 16014
SCREW-PILOT AIR
€ 9.00
16016
160161009
ref: 16016
PLUNGER ASSY,STARTER
€ 24.50
16017
160171212
ref: 16017
(OPTION)
JET-NEEDLE,R-4
€ 26.50
16017A
160171213
ref: 16017A
(OPTION)
JET-NEEDLE,R-6
€ 25.00
16017B
160171237
ref: 16017B
JET-NEEDLE,R-2
€ 26.50
16017C
160171238
ref: 16017C
(OPTION)
JET-NEEDLE,R-0
€ 18.00
16017D
160171239
ref: 16017D
(OPTION)
JET-NEEDLE,Q-8
€ 20.50
16021
160211105
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251112
ref: 16025
VALVE-THROTTLE,CA 2.5
€ 63.00
16030
160301025
ref: 16030
VALVE,FLOAT
€ 31.50
16031
16031030
ref: 16031
FLOAT
€ 36.00
16049
160491005
ref: 16049
COVER-MAIN JET
€ 12.50
16065
160651040
ref: 16065
HOLDER-CARBURETOR
€ 40.50
16065A
160651048
ref: 16065A
HOLDER-CARBURETOR
€ 43.00
49006
490061085
ref: 49006
BOOT,CARBURETOR
€ 22.00
92001
920011629
ref: 92001
BOLT FLANGED 6X20
€ 1.50
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
920371069
ref: 92037A
CLAMP,L=60
€ 1.50
92037B
920371313
ref: 92037B
CLAMP,CARBURETOR HOLD
€ 7.00
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
€ 4.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92059
920591142
ref: 92059
TUBE,3.5X6.5X410
€ 16.50
92059A
920591233
ref: 92059A
TUBE,3.5X6.5X300
€ 4.50
92059B
920591252
ref: 92059B
TUBE,FUEL,6.5X11.5
€ 8.50
92063
92063045
ref: 92063
(OPTION)
MAIN JET #300
€ 6.00
92063A
92063046
ref: 92063A
(OPTION)
JET-MAIN,#310
€ 8.00
92063B
92063047
ref: 92063B
JET-MAIN,#320
€ 8.50
92063C
92063048
ref: 92063C
(OPTION)
JET-MAIN,#330
€ 12.50
92063D
92063049
ref: 92063D
(OPTION)
JET-MAIN,#340
€ 10.50
92064
92064022
ref: 92064
PILOT JET #30 ISO
€ 11.50
92064A
92064023
ref: 92064A
(OPTION)
JET-PILOT,#35
€ 13.00
92064B
92064024
ref: 92064B
(OPTION)
JET-PILOT,#40
€ 14.00
92064C
92064032
ref: 92064C
(OPTION)
PILOT JET #25
€ 12.50
92064D
920641033
ref: 92064D
(OPTION)
JET-PILOT,#27.5
€ 11.50
92081
16006028
ref: 92081
SPRING,THROTTLE VALVE
€ 8.50
92081A
16022007
ref: 92081A
SPRING-THR STOP SCREW
€ 5.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
223
223B0516
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
