CYLINDER HEAD/CYLINDER

KX250-C2 1984 USA CANADA UK AL

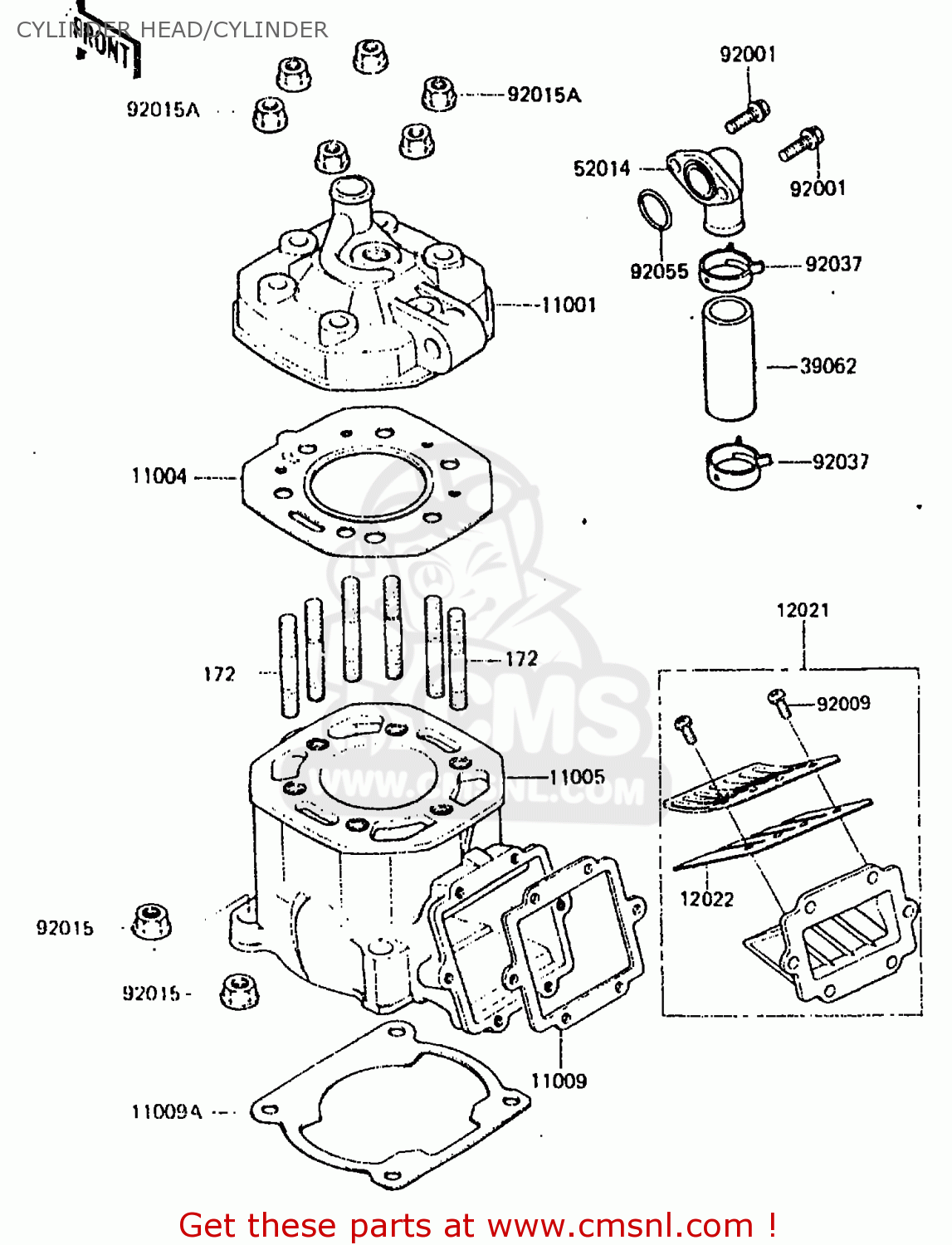

Cylinder head/cylinder diagram KX250-C2 1984 USA CANADA UK AL

prices are in EUR

ref

part #

description

quantity

11001

110011159
ref: 11001

HEAD-CYLINDER

€ 90.00

11004

110041057
ref: 11004

GASKET-HEAD,CYLINDER (MCA)

€ 26.50

11005

110051347
ref: 11005

CYLINDER-ENGINE

€ 779.00

11009

110091252
ref: 11009

GASKET,REED VALVE (MCA)

€ 7.50

11009A

110091318
ref: 11009A

GASKET,CYLINDER BASE (MCA)

€ 6.50

12021

120211019
ref: 12021

VALVE-ASSY-REED

€ 113.00

12022

120221017
ref: 12022

VALVE-REED

€ 19.50

39062

390621010
ref: 39062

HOSE-COOLING,19.5X25X

€ 17.00

52014

520141004
ref: 52014

ELBOW,CYLINDER

€ 25.50

92001

920011628
ref: 92001

BOLT,FLANGED,6X16

€ 1.00

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92015

92015077
ref: 92015

NUT, 10MM

€ 3.00

92015A

920151143
ref: 92015A

NUT,8MM

€ 0.50

92037

920371485
ref: 92037

CLAMP,COOLING HOSE

€ 8.00

92055

92055055
ref: 92055

'0'RING

€ 2.50

172

172G0835
ref: 172

STUD,8X35

€ 4.00
