CRANKCASE
KX250-C2 1984 USA CANADA UK AL

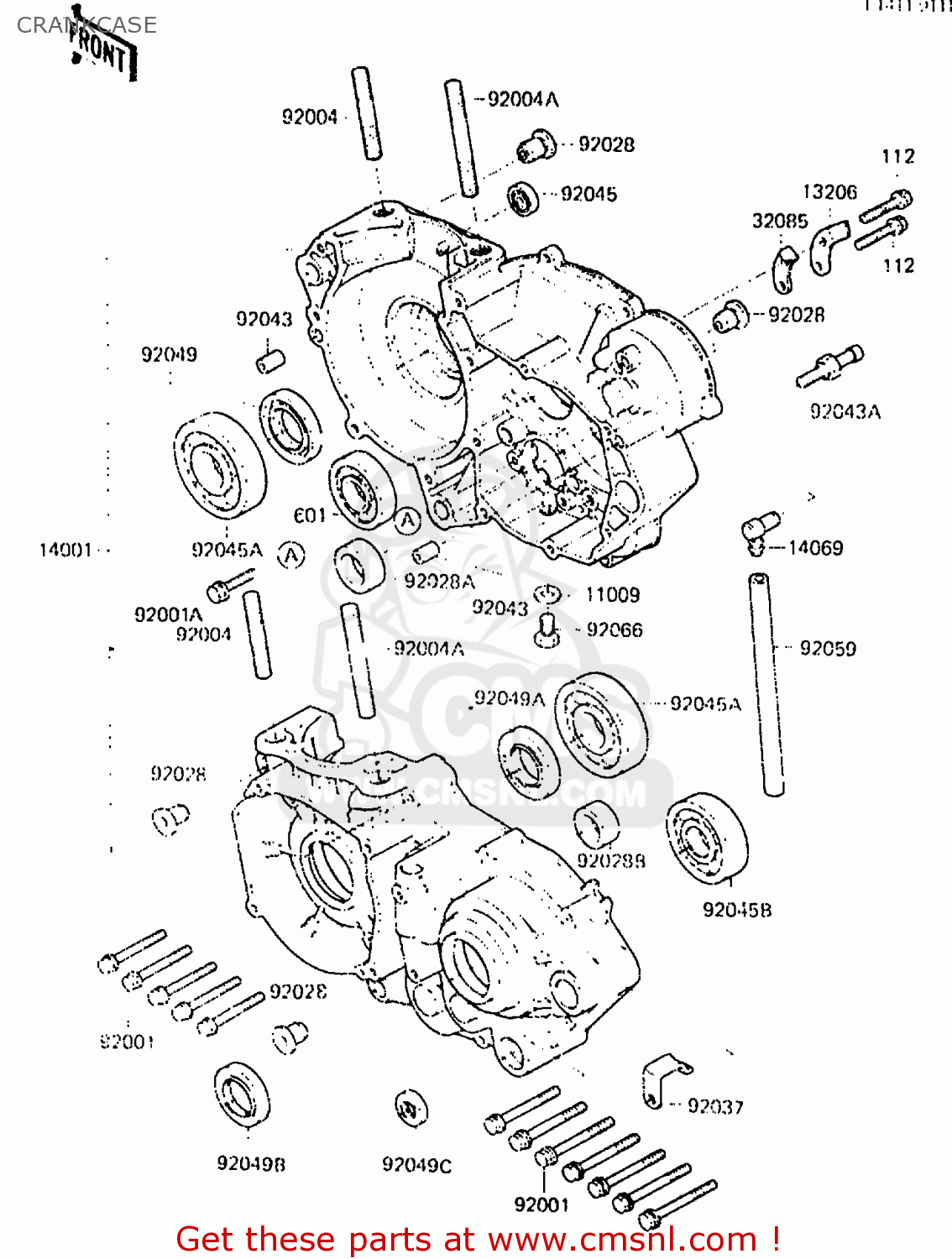

Crankcase diagram KX250-C2 1984 USA CANADA UK AL
CRANKCASE KX250-C2 1984 USA CANADA UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
13206
132061052
ref: 13206
GUIDE-KICK
€ 7.50
14001
140015130
ref: 14001
SET-CRANKCASE
€ 439.50
14069
14069003
ref: 14069
BREATHER
€ 7.00
32085
320851016
ref: 32085
STOPPER,KICKSTARTER
€ 5.50
92001
920011633
ref: 92001
BOLT,FLANGED,6X40
€ 2.50
92001A
920011829
ref: 92001A
BOLT,W/WASHER,6X14
€ 2.50
92004
920041063
ref: 92004
STUD,10X35
€ 3.50
92004A
920041065
ref: 92004A
STUD,10X45
€ 4.50
92028
920281133
ref: 92028
BUSHING
€ 9.50
92028A
92028131
ref: 92028A
BUSHING
€ 28.00
92028B
92028132
ref: 92028B
BUSHING
€ 28.00
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
920431055
ref: 92043A
PIN,CHANGE PEDAL
€ 4.00
92045
920451010
ref: 92045
BEARING,BALL 626
€ 11.00
92045A
920451024
ref: 92045A
BEARING-BALL,#6305SH2
€ 45.50
92045B
920451115
ref: 92045B
BEARING-BALL,6205
€ 23.00
92049
920491051
ref: 92049
OIL SEAL,TCJ25457
€ 22.50
92049A
920491052
ref: 92049A
OIL SEAL,TCJ20407
€ 19.50
92049B
92050033
ref: 92049B
SEAL-OIL,TB3040
€ 14.00
92049C
92051005A
ref: 92049C
OIL SEAL,TB13225.5
€ 5.50
92059
92059061
ref: 92059
PIPE-BREATHER
€ 3.00
92066
92067001
ref: 92066
PLUG-OIL DRAIN
€ 3.00
112
112G0618
ref: 112
BOLT-UPSET
€ 0.50
601
601B6204
ref: 601
BEARING-BALL,#6204C3
€ 8.00
