FRAME FITTING
KX250-C2 1984 USA CANADA UK AL

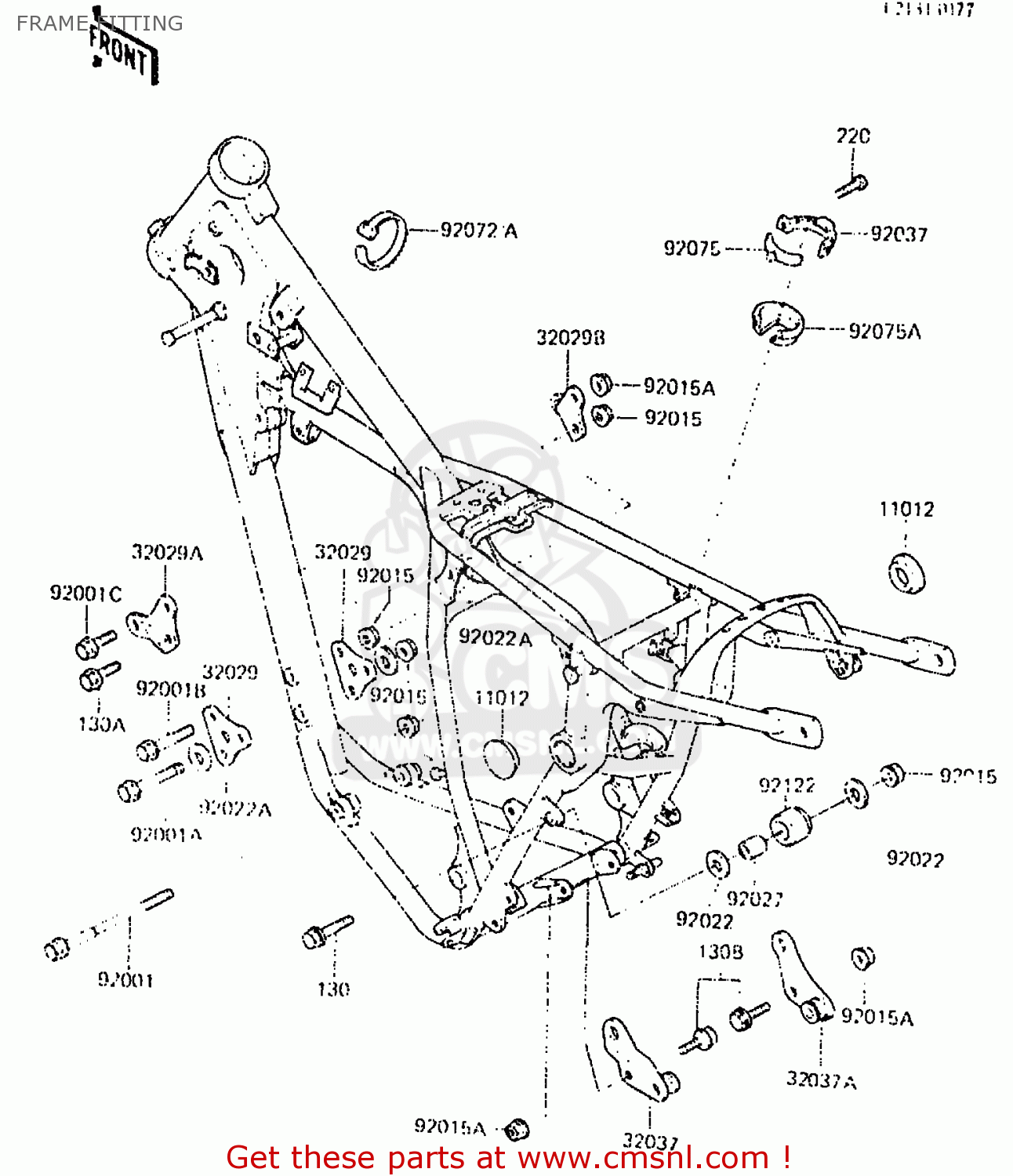

Frame fitting diagram KX250-C2 1984 USA CANADA UK AL
FRAME FITTING KX250-C2 1984 USA CANADA UK AL
×
prices are in EUR
ref
part #
description
quantity
11012
110121211
ref: 11012
CAP,UNI-TRAK
€ 3.50
32029
320291228
ref: 32029
BRACKET-ENGINE,FR
€ 24.50
32029A
320291229
ref: 32029A
BRACKET-ENGINE,UPP,LH
€ 18.50
32029B
320291230
ref: 32029B
BRACKET-ENGINE,UPP,RH
€ 12.50
32037
320371230
ref: 32037
BRACKET-SHOCKABSORBER
€ 27.50
32037A
320371231
ref: 32037A
BRACKET-SHOCKABSORBER
€ 28.00
92001
920011116
ref: 92001
BOLT-FLANGED,8X140
€ 6.50
92001A
920011640
ref: 92001A
BOLT,FLANGED,8X80,BLA
€ 3.00
92001B
920011642
ref: 92001B
BOLT,FLANGED,8X75,BLA
€ 4.50
92001C
920011692
ref: 92001C
BOLT,FLANGED,10X50
€ 4.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151234
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92022
92022092
ref: 92022
WASHER
€ 2.50
92022A
92022195
ref: 92022A
WASHER-PLAIN
€ 2.50
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92037
920371375
ref: 92037
CLAMP,RESERVE TANK,UP
€ 15.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92075
920751431
ref: 92075
DAMPER,RESERVE TANK,U
€ 12.50
92075A
920751432
ref: 92075A
DAMPER,RESERVE TANK,L
€ 8.50
92122
921221104
ref: 92122
ROLLER,CHAIN GUIDE
€ 12.00
130
130G0850
ref: 130
BOLT,8X50
€ 1.00
130A
130P0830
ref: 130A
BOLT-FLANGED,8X30
€ 1.00
130B
130P1020
ref: 130B
BOLT-FLANGED,10X20
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
