Genuine KX Kawasaki Parts delivered quickly!


SWING ARM/SHOCK ABSORBERS (KX250

KX250 1974

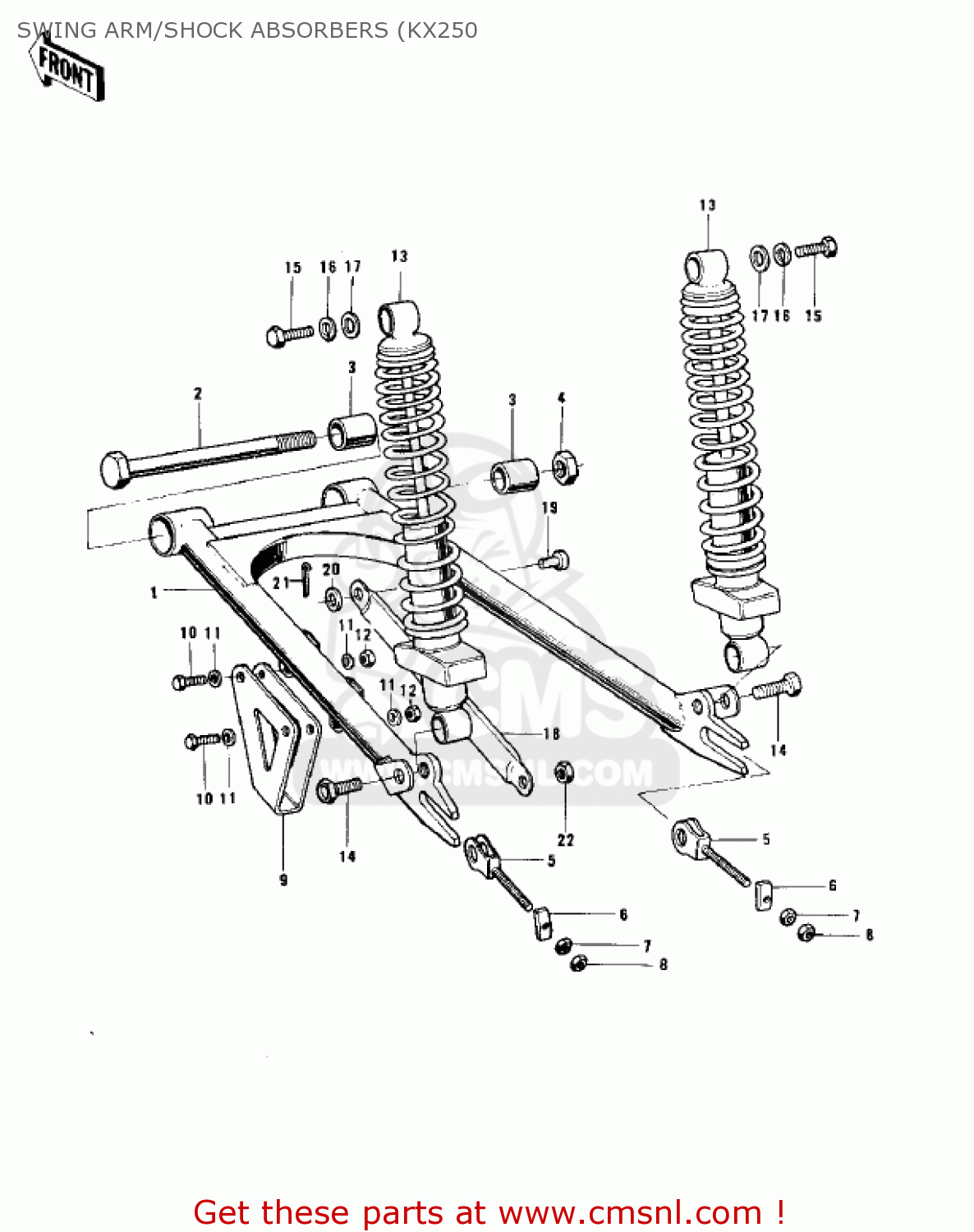

Swing arm/shock absorbers (kx250 diagram KX250 1974

SWING ARM/SHOCK ABSORBERS (KX250 KX250 1974
SWING ARM/SHOCK ABSORBERS (KX250 KX250 1974
SWING ARM/SHOCK ABSORBERS (KX250 KX250 1974
prices are in EUR
ref
part #
description
quantity
1
33001064
ref: 1
KX250
ARM,SWINGING
€ 104.00
2
33032042
ref: 2
SHAFT,SWING ARM PIVO
33032042
€ 47.00
3
33033012
ref: 3
BUSHING,SWINGING ARM
33033012
€ 7.00
4
92019017
ref: 4
NUT,12MM
92019017
€ 2.00
5
33040055
ref: 5
ADJUSTER,CHAIN
33040055
€ 19.50
6
33041002
ref: 6
PLATE,CHAIN ADJUSTER
33041002
€ 9.50
7
311G0800
ref: 7
NUT-HEX,8MM
€ 2.50
8
92019018
ref: 8
NUT,8MM
92019018
€ 5.50
9
55020015
ref: 9
GUARD,CHAIN
€ 13.50
10
110G0650
ref: 10
BOLT,HEX HEAD,6X50
110G0650
€ 1.00
11
92022125
ref: 11
WASHER,6.5X20X1.6
92022125
€ 1.00
12
92019019
ref: 12
NUT,6MM
€ 4.00
13
45014094
ref: 13
SHOCK ABSORBER,REAR
€ 198.00
14
92001133
ref: 14
BOLT,HEX HEAD,12X35
92001133
€ 3.00
15
112G0612
ref: 15
BOLT-UPSET
112G0612
€ 2.50
16
461F0600
ref: 16
WASHER-SPRING,6MM
461F0600
€ 0.50
17
92022286
ref: 17
WASHER PLAIN 6M/M
92022286
€ 3.00
18
43007040
ref: 18
TORQUE LINK,RR BRAKE
€ 3.50
19
92043105
ref: 19
PIN,TORQUE LINK
€ 6.50
20
92022239
ref: 20
WASHER-PLAIN
92022239
€ 2.50
21
550D2020
ref: 21
PIN-COTTER,2.0X20
550D2020
€ 0.50
22
92019016
ref: 22
NUT,10MM
€ 3.00
