CABLES (74-76)
KX250 1974

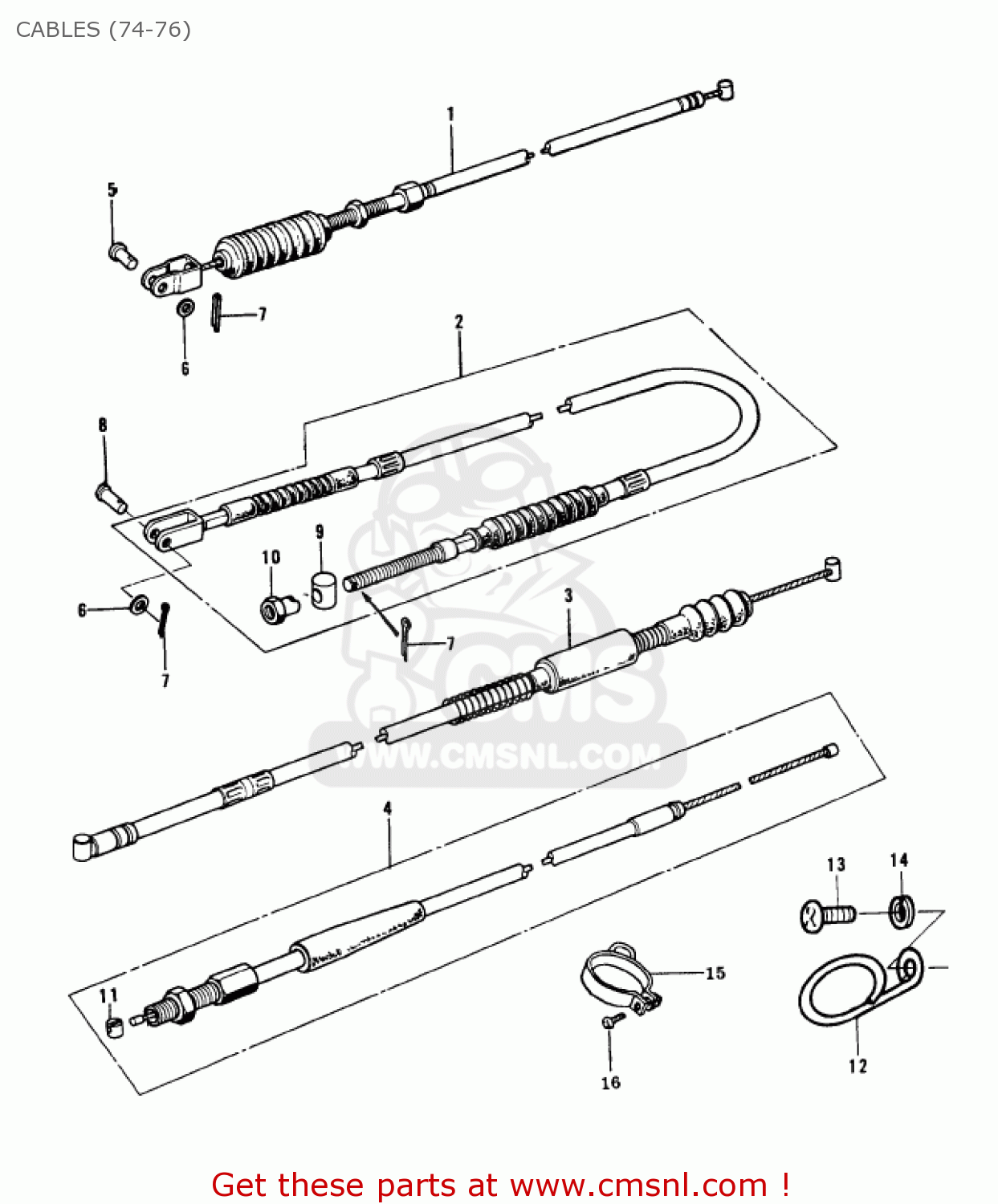

Cables (74-76) diagram KX250 1974
CABLES (74-76) KX250 1974
×
prices are in EUR
ref
part #
description
quantity
1
54005076
ref: 1
CABLE,FRONT BRAKE
€ 50.00
1
54005084
ref: 1
KX250A/-A3
CABLE,FRONT BRAKE
€ 46.50
2
54022025
ref: 2
CABLE,REAR BRAKE
€ 17.50
2
54022029
ref: 2
KX250A/-A3
CABLE,REAR BRAKE
€ 24.00
3
54011063
ref: 3
CABLE,CLUTCH
€ 48.50
4
54012101
ref: 4
CABLE,THROTTLE
€ 18.00
5
92043064
ref: 5
PIN-BRAKE ROD FITTING
€ 4.50
6
410B0600
ref: 6
WASHER-PLAIN-SMALL,6M
€ 0.50
7
550D1615
ref: 7
PIN-COTTER,1.6X15
€ 1.50
7
550D2015
ref: 7
KX250-A3
PIN-COTTER,2.0X15
€ 1.00
8
92043034
ref: 8
PIN-R BRK CABLE JOINT
€ 7.00
9
92043065
ref: 9
PIN-BRAKE ROD
€ 3.50
10
92015042
ref: 10
NUT-BRAKE ROD ADJUST
€ 4.00
11
54013001
ref: 11
PIECE-THROTTLE CABLE
€ 6.50
12
92037159
ref: 12
KX250A/-A3
CLAMP,CABLE
€ 1.50
13
220B0612
ref: 13
KX250A/-A3
SCREW-PAN HEAD,6X12
€ 1.00
14
461F0600
ref: 14
KX250A/-A3
WASHER-SPRING,6MM
€ 0.50
15
92037196
ref: 15
FRONT BRAKE CABLE CLAMP
€ 13.50
16
220B0620
ref: 16
SCREW-PAN HEAD,6X20
€ 2.50
