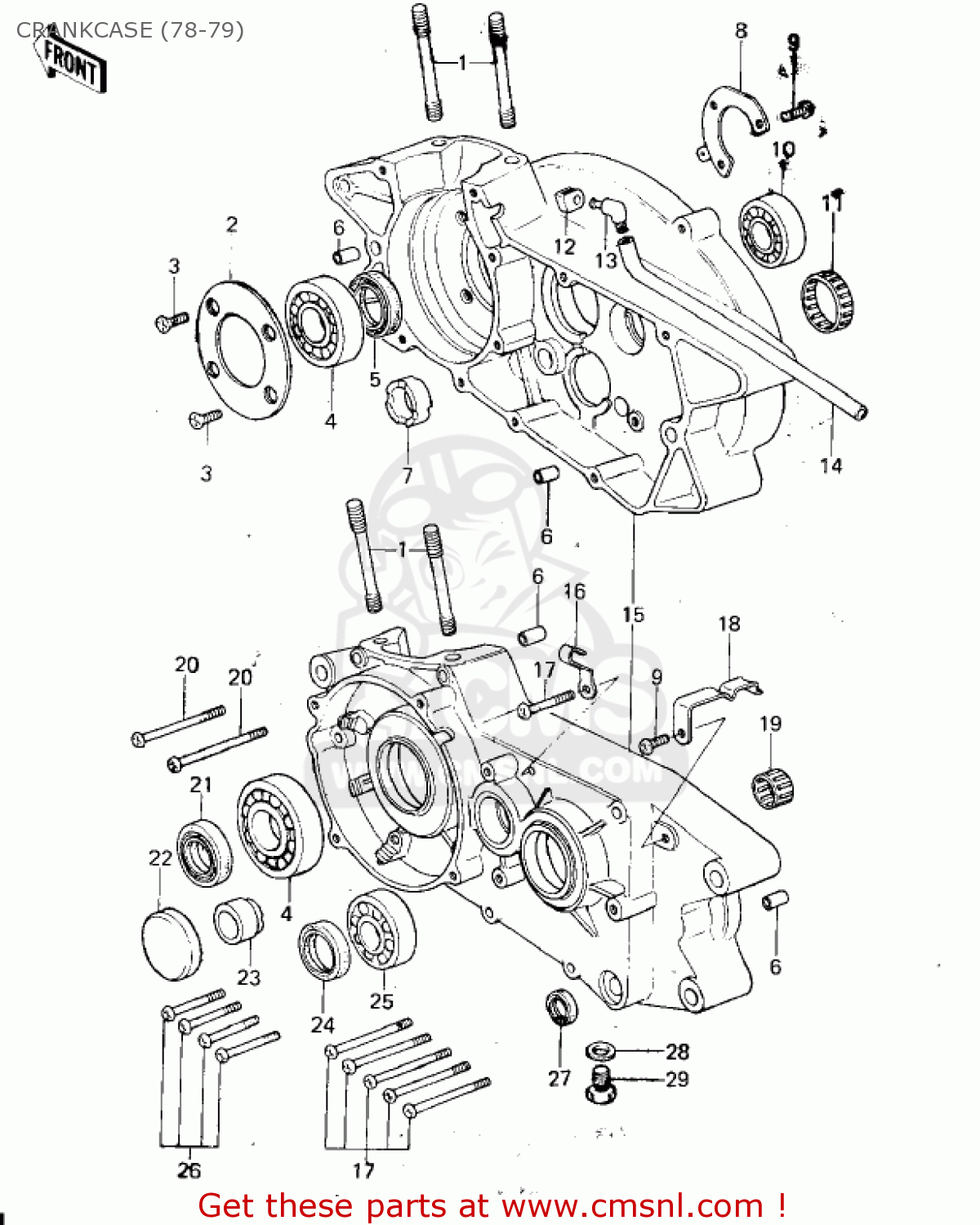

CRANKCASE (78-79)

ref

part #

description

quantity

1

920041006
ref: 1

STUD,10X65

€ 7.00

2

14014030
ref: 2

HOLDER,CRANK BEARING

€ 3.50

3

221B0614
ref: 3

SCREW-CNTSNK HD,6X14

€ 2.50

4

920451024
ref: 4
KX250-A4

BEARING-BALL,#6305SH2

€ 45.50

4

920451024
ref: 4
KX250-A5+

BEARING-BALL,#6305SH2

€ 45.50

5

653B324507
ref: 5

OIL SEAL,TB32457

€ 11.50

6

920431037
ref: 6

PIN,DOWEL,10X8.2X14

€ 0.50

7

92028147
ref: 7

BUSHING,MISSION

€ 7.00

8

14014031
ref: 8

HOLDER,CRANK BEARING

€ 4.50

9

220B0614
ref: 9

SCREW-PAN HEAD,6X14

€ 2.00

10

601B6204
ref: 10

BEARING-BALL,#6204C3

€ 8.00

11

92046040
ref: 11

BEARING-NEEDLE,#34401

€ 22.00

12

92071042
ref: 12

GROMMET

€ 2.50

13

140691001
ref: 13

BREATHER

€ 17.50

14

920591372
ref: 14

TUBE,6X9X750

€ 9.00

15

140015009
ref: 15
KX250-A4

CRANK CASE SET

€ 513.00

15

140015024
ref: 15
KX250-A5+

CRANKCASE SET

€ 487.50

16

92037016
ref: 16

CLAMP,WIRING HARNESS

€ 1.50

17

220B0665
ref: 17

SCREW-PAN HEAD,6X65

€ 2.50

18

92037142
ref: 18

CLAMP,WIRING HARNESS

€ 5.50

19

92046037
ref: 19

BEARING-NEEDLE,7E-HK1

€ 17.00

20

220B0670
ref: 20

SCREW-PAN HEAD,6X70

€ 2.50

21

653B254507
ref: 21

OIL SEAL,TB25457

€ 8.00

22

92073025
ref: 22

CAP,CRANK CASE

€ 6.50

23

92028146
ref: 23

BUSHING,NEEDLE BEARIN

€ 8.50

24

92050033
ref: 24

SEAL-OIL,TB3040

€ 14.00

25

601B6205
ref: 25

BEARING-BALL,#6205C3

€ 14.00

26

220B0645
ref: 26

SCREW-PAN HEAD,6X45

€ 2.50

27

92051005A
ref: 27

OIL SEAL,TB13225.5

€ 5.50

28

92065058
ref: 28

GASKET, 10,5X16X1 (NAS)

€ 2.50

29

92067001
ref: 29

PLUG-OIL DRAIN

€ 3.00
