CRANKSHAFT/PISTON (74-76)
KX250 1974

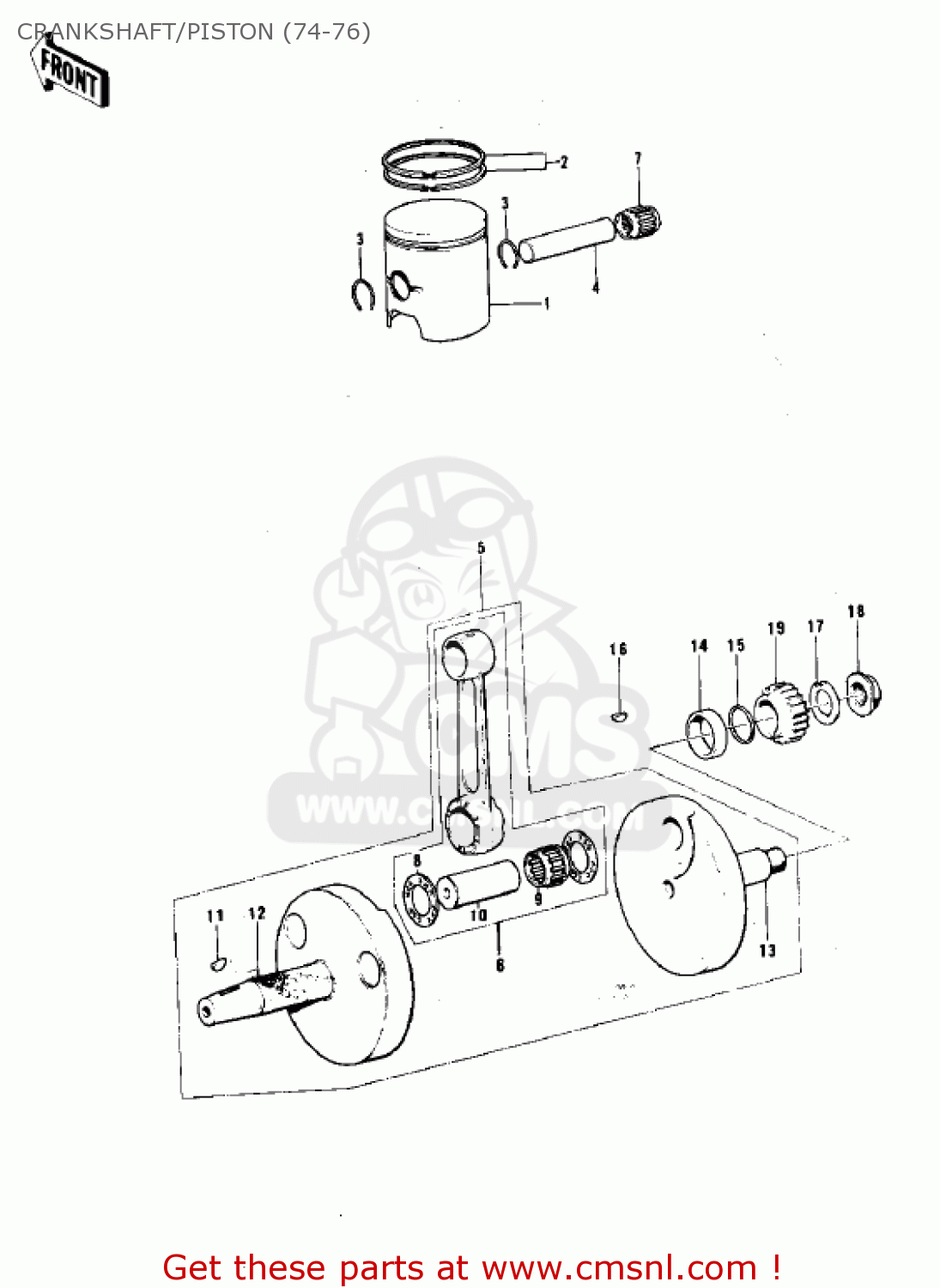

Crankshaft/piston (74-76) diagram KX250 1974
CRANKSHAFT/PISTON (74-76) KX250 1974
×
prices are in EUR
ref
part #
description
quantity
1
13001070
ref: 1
PISTON,STD
€ 66.50
1
13001075
ref: 1
KX250A/-A3
PISTON,STD
€ 64.00
1
13029069
ref: 1
KX250 (ONLY)
PISTON,0.020' O/S
€ 111.00
2
13008051
ref: 2
RING SET,STD
€ 43.00
2
13008056
ref: 2
KX250A/-A3
RING SET,STD
€ 41.00
2
13025055
ref: 2
KX250 (ONLY)
RING SET,0.020' O/S
€ 15.50
3
92036015
ref: 3
RING-SNAP,PISTON PIN
€ 3.00
4
13002017
ref: 4
PIN-PISTON
€ 17.50
4
13002017
ref: 4
KX250-A3
PIN-PISTON
€ 17.50
5
13036046
ref: 5
CRANK&CONROD ASSY
€ 220.00
6
13044037
ref: 6
CONNECTING ROD SET
€ 198.50
6
13044037
ref: 6
KX250A/-A3
CONNECTING ROD SET
€ 198.50
7
130331010
ref: 7
KBK182223.8X
BEARING-NEEDLE,KBK18X
€ 22.50
7
130331010
ref: 7
KX250-A3
BEARING-NEEDLE,KBK18X
€ 22.50
8
920261241
ref: 8
SPACER
€ 4.00
9
13034049
ref: 9
PK243219.8X
BEARING-NEEDLE,PK2432
€ 36.00
9
13034049
ref: 9
KX250A/-A3
BEARING-NEEDLE,PK2432
€ 36.00
10
13035034
ref: 10
PIN-CRANK
€ 54.50
11
92038001
ref: 11
WOODRUFF KEY
€ 3.00
12
13037060
ref: 12
CRANKSHAFT,L.H
€ 69.50
12
13037070
ref: 12
FILLED BALANCE HOLES
CRANKSHAFT,L.H
€ 111.00
13
13038055
ref: 13
CRANKSHAFT,R.H
€ 69.50
13
13038058
ref: 13
FILLED BALANCE HOLES
CRANKSHAFT,R.H
€ 78.00
14
92027212
ref: 14
COLLAR,CRANKSHAFT
€ 8.50
15
670B2020
ref: 15
O RING,20MM
€ 1.00
16
510A5100
ref: 16
KEY-WOODRUFF
€ 1.50
17
92024061
ref: 17
WASHER,LOCK
€ 2.50
18
92015069
ref: 18
NUT,14MM
€ 20.00
19
13121029
ref: 19
22T
GEAR,PRIMARY
€ 70.00
