FRONT HUB/BRAKE (78-79)
KX250 1974

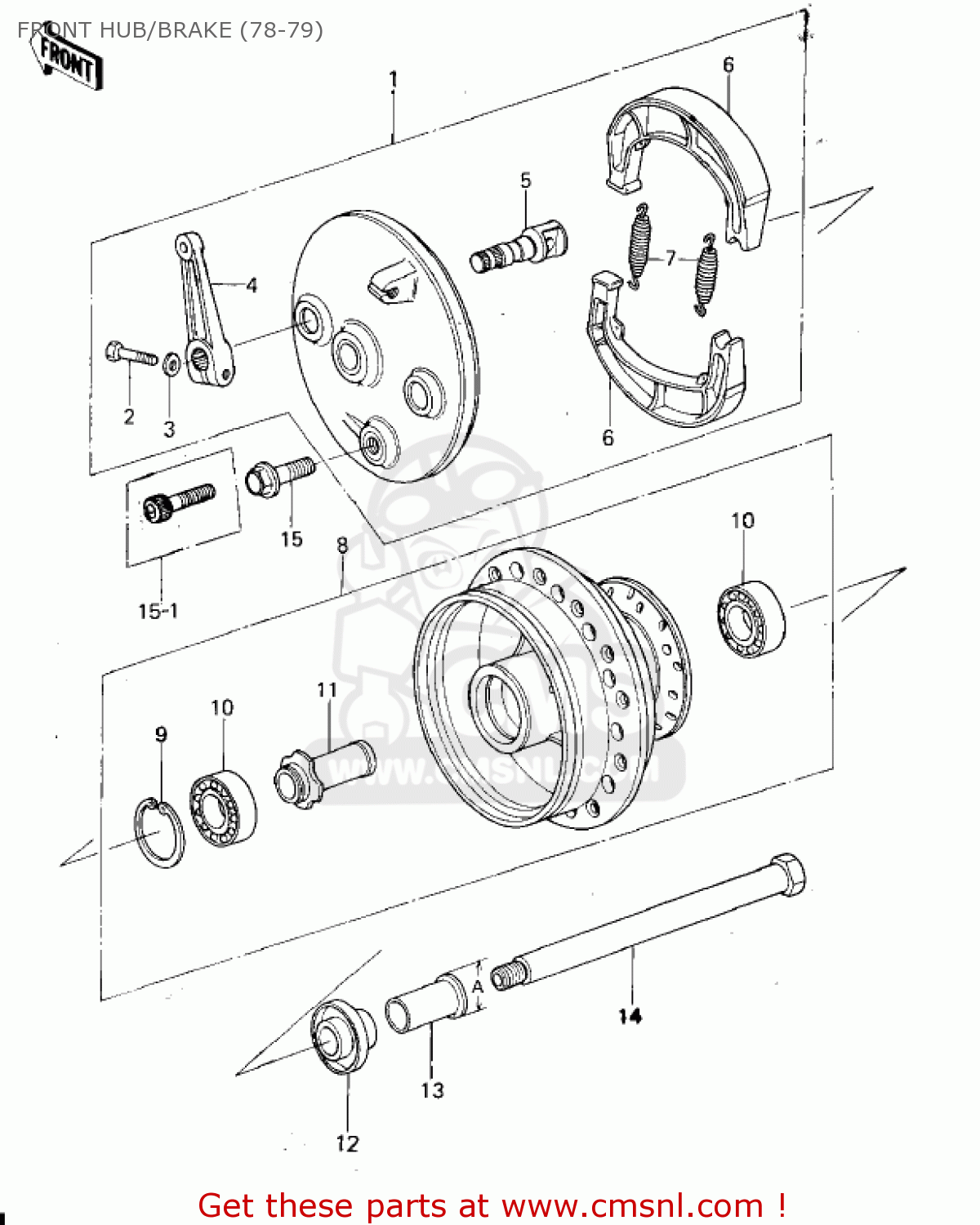

Front hub/brake (78-79) diagram KX250 1974
FRONT HUB/BRAKE (78-79) KX250 1974
×
prices are in EUR
ref
part #
description
quantity
1
410351002
ref: 1
PANEL ASSY,FRNT BRAKE
€ 289.00
2
112G0622
ref: 2
BOLT-UPSET
€ 2.50
3
410B0600
ref: 3
WASHER-PLAIN-SMALL,6M
€ 0.50
4
410531003
ref: 4
LEVER,FRNT BRAKE CAM
€ 43.50
5
410501002
ref: 5
CAM-BRAKE
€ 29.00
6
410481068
ref: 6
SHOE-BRAKE (NAS)
€ 16.00
7
42020004
ref: 7
SPRING-BRAKE SHOE
€ 5.50
8
41034100621
ref: 8
DRUM ASSY,FRNT BRAKE
€ 299.50
9
920331041
ref: 9
CIRCLIP,42MM
€ 4.00
10
92045033
ref: 10
BEARING,BALL,#6302NS
€ 20.00
11
920271034
ref: 11
COLLAR,FRNT BRAKE DRM
€ 15.00
12
920271035
ref: 12
COLLAR,FRONT AXLE
€ 12.50
13
920271036
ref: 13
KX250-A4
COLLAR,FRONT AXLE
€ 9.50
13
920271178
ref: 13
KX250-A5+
COLLAR,FRONT AXLE
€ 11.50
14
410681006
ref: 14
AXLE,FRONT
€ 30.00
15
920011039
ref: 15
KX250-A4
BOLT,HEX HEAD,10X28
€ 4.00
15-1
920011202
ref: 15-1
KX250-A5+
BOLT,SOCKET,10X45
€ 3.50
