SWING ARM/SHOCK ABSORBERS ('78-'
KX125-A5 1979

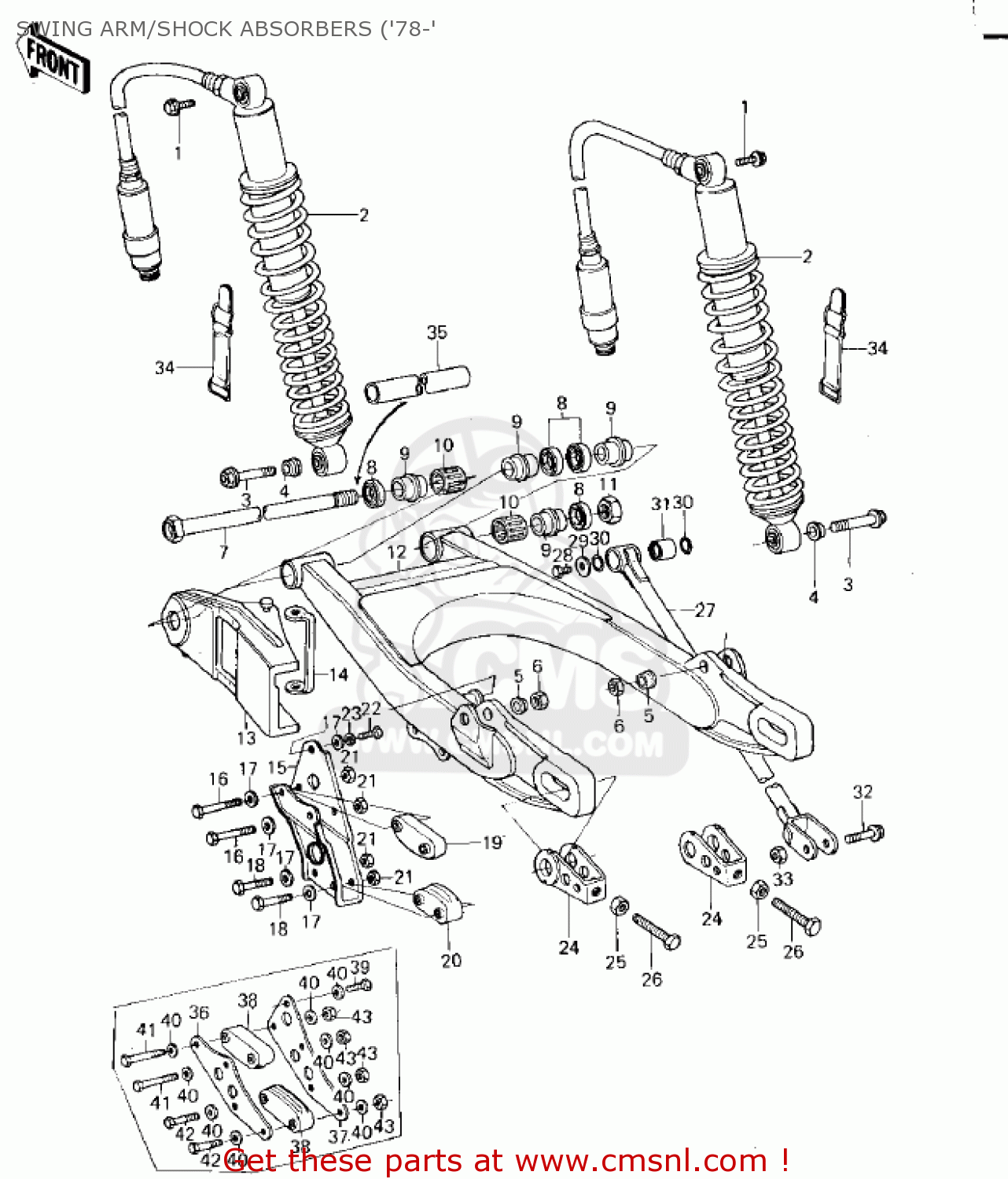

Swing arm/shock absorbers ('78-' diagram KX125-A5 1979
SWING ARM/SHOCK ABSORBERS ('78-' KX125-A5 1979
×
prices are in EUR
ref
part #
description
quantity
1
920011034
ref: 1
6X10
BOLT,HEX HEAD,6X10
€ 7.00
2
450141021
ref: 2
KX125-A4
SHOCK ABSORBER,REAR
€ 388.50
2
450141030
ref: 2
KX125-A5
SHOCK ABSORBER,REAR
€ 384.50
3
920011029
ref: 3
10X28
BOLT,HEX HEAD,10X48
€ 5.50
4
920271029
ref: 4
L=5 M/M
COLLAR,L=5
€ 3.50
5
920271030
ref: 5
L=11 M/M
COLLAR
€ 2.00
6
92019021
ref: 6
NUT,LOCK,10M/M
€ 2.00
7
330321001
ref: 7
KX125-A4
SHAFT,SWING ARM PIVOT
€ 38.00
7
330321010
ref: 7
KX125-A5
SHAFT SWING ARM PIVOT
€ 39.50
8
920491011
ref: 8
OIL SEAL
€ 7.00
9
420361026
ref: 9
SLEEVE,SWING ARM
€ 24.00
10
920461001
ref: 10
BEARING-NEEDLE,HMK202
€ 19.00
11
92019011
ref: 11
NUT,LOCK,14MM
€ 6.00
12
330011010
ref: 12
KX125-A4
ARM,SWING
€ 514.00
12
330011030
ref: 12
KX125-A5
ARM,SWING
€ 498.00
13
120531017
ref: 13
GUIDE,CHAIN,FRONT
€ 34.50
14
920721018
ref: 14
BAND
€ 6.50
15
550201015
ref: 15
KX125-A4
GUAD,CHAIN
€ 9.50
16
110G0650
ref: 16
KX125-A4
BOLT,HEX HEAD,6X50
€ 1.00
17
411B0600
ref: 17
KX125-A4
WASHER-PLAIN,6MM
€ 0.50
18
110R0635
ref: 18
KX125-A4
BOLT 6X35
€ 3.50
19
120531015
ref: 19
KX125-A4
GUIDE-CHAIN
€ 22.00
20
120531011
ref: 20
KX125-A4
GUIDE-CHAIN,RR,LWR
€ 16.50
21
92019008
ref: 21
KX125-A4
NUT-LOCK,6MM
€ 3.00
22
112B0614
ref: 22
KX125-A4
BOLT-UPSET 6X14
€ 2.50
23
461F0600
ref: 23
KX125-A4
WASHER-SPRING,6MM
€ 0.50
24
330401005
ref: 24
ADJUSTER,CHAIN
€ 10.00
25
312G0800
ref: 25
KX125-A4
NUT,8MM
€ 2.00
25
318G0800
ref: 25
KX125-A5
NUT-HEX-SMALL,8MM
€ 1.00
26
920011027
ref: 26
BOLT,CHAIN ADJUSTER
€ 9.50
27
430071003
ref: 27
KX125-A4
ROD,TORQUE
€ 25.00
27
430071009
ref: 27
KX125-A5
TORQUE LINK,REAR BRAK
€ 45.50
28
112G0610
ref: 28
BOLT,6X10
€ 0.50
29
92022228
ref: 29
WASHER-PLAIN,7MM
€ 2.50
30
670B2015
ref: 30
O RING,15MM
€ 1.00
31
920281023
ref: 31
BUSHING,BRAKE ROD
€ 8.50
32
920011041
ref: 32
8X36
BOLT,HEX HEAD,8X36
€ 6.50
33
92017013
ref: 33
NUT,LOCK,8MM
€ 5.50
34
92072076
ref: 34
BAND,L=40
€ 14.00
35
920261014
ref: 35
SPACER,15X19.1X97
€ 12.50
36
550201020
ref: 36
GUARD,CHAIN
€ 12.50
37
550201021
ref: 37
KX125-A5
GUARD,CHAIN
€ 10.50
38
120531033
ref: 38
KX125-A5
GUIDE-CHAIN
€ 17.50
39
112B0614
ref: 39
KX125-A5
BOLT-UPSET 6X14
€ 2.50
40
411B0600
ref: 40
KX125-A5
WASHER-PLAIN,6MM
€ 0.50
41
110G0650
ref: 41
KX125-A5
BOLT,HEX HEAD,6X50
€ 1.00
42
112G0640
ref: 42
KX125-A5
BOLT-UPSET,6X40
€ 2.50
43
92019008
ref: 43
KX125-A5
NUT-LOCK,6MM
€ 3.00
