FRONT FORK (KX125-A5)
KX125-A5 1979

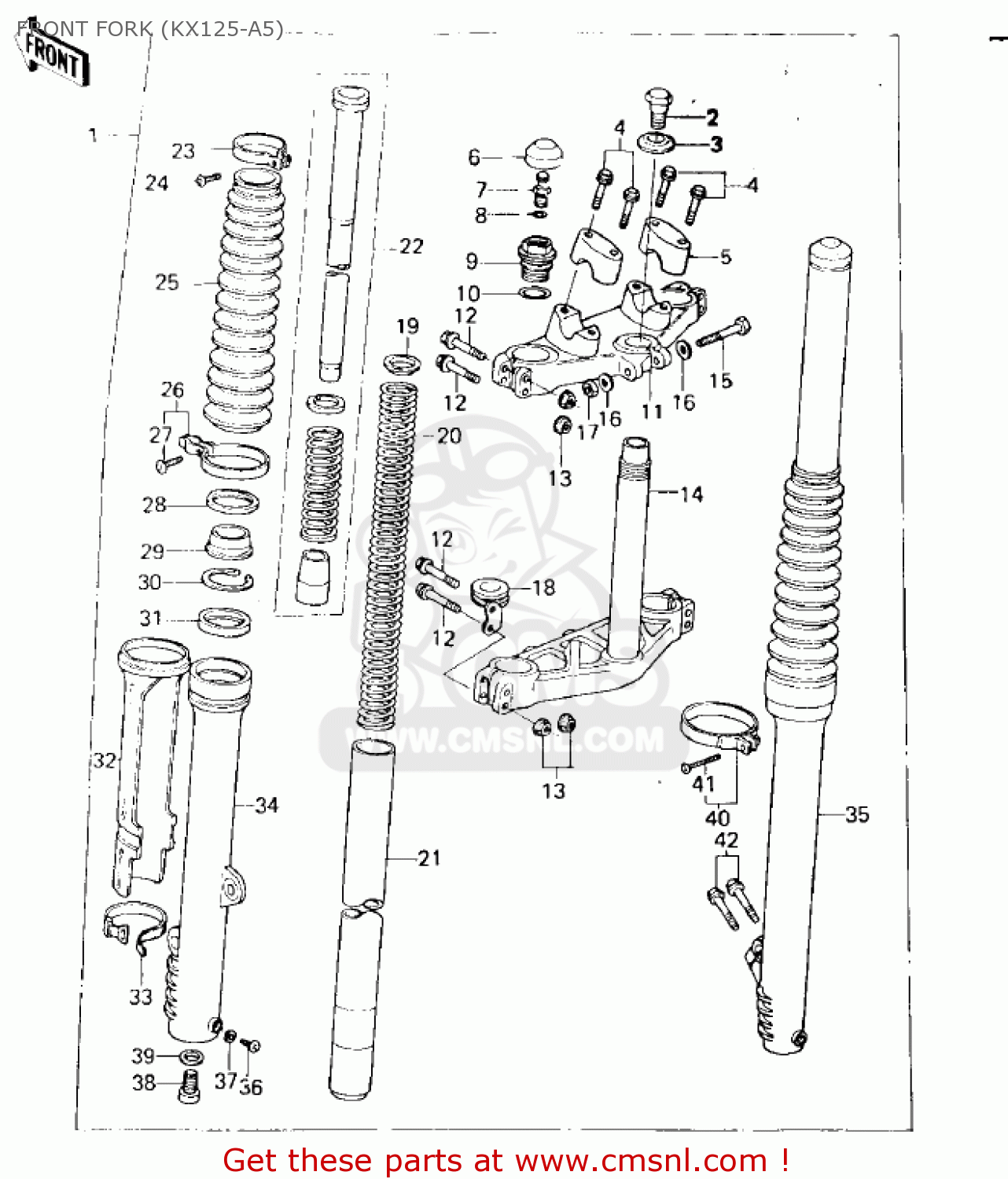

Front fork (kx125-a5) diagram KX125-A5 1979
FRONT FORK (KX125-A5) KX125-A5 1979
×
prices are in EUR
ref
part #
description
quantity
1
440011070
ref: 1
FRONT FORK ASSY
€ 1,257.50
2
44041065
ref: 2
14X20
BOLT,FORK TOP
€ 18.50
3
44043052
ref: 3
WASHER,PLAIN
€ 6.00
4
920011059
ref: 4
BOLT,HEX HEAD,8X35
€ 5.50
5
460121003
ref: 5
HOLDER,HANDLEBAR
€ 8.50
6
440291009
ref: 6
SEAT-FORK SPRING
€ 4.00
7
161261003
ref: 7
VALVE,AIR
€ 22.50
8
920551018
ref: 8
RING-O,AIR VALVE
€ 2.50
9
440291011
ref: 9
SEAT-FORK SPRING
€ 46.00
10
920551051
ref: 10
ORING,FORK TOP CAP
€ 3.50
11
440391018
ref: 11
HEAD,STEERING STEM
€ 169.00
12
920011060
ref: 12
BOLT,HEX HEAD,8X53
€ 2.00
13
440071002
ref: 13
NUT,8M/M
€ 2.00
14
440371021
ref: 14
STEM,STEERING
€ 146.00
15
920011141
ref: 15
BOLT,HEX HEAD,8X57
€ 2.00
16
410B0800
ref: 16
WASHER-PLAIN-SMALL,8M
€ 0.50
17
920151124
ref: 17
NUT,LOCK,8MM
€ 3.50
18
920721027
ref: 18
BAND,CABLE
€ 12.50
19
440281004
ref: 19
GUIDE-FORK SPRING
€ 7.50
20
440261030
ref: 20
SPRING,FORK INNER
€ 23.00
21
440131020
ref: 21
TUBE,FORK INNER
€ 151.50
22
440221021
ref: 22
CYLINDER ASSY,FORK
€ 45.50
23
920721008
ref: 23
BAND,BOOTS
€ 7.50
24
220B0420
ref: 24
SCREW-PAN-CROS
€ 2.00
25
490061028
ref: 25
LIME GREEN
BOOT,FORK,L.GREEN
€ 41.50
26
920721011
ref: 26
BAND,BOOTS,L.H
€ 8.50
27
220B0620
ref: 27
SCREW-PAN HEAD,6X20
€ 2.50
28
320991002
ref: 28
CASE,DUST SHIELD
€ 16.00
29
920931007
ref: 29
DUST SHIELD,FORK
€ 8.50
30
920331005
ref: 30
RING-SNAP
€ 8.50
31
920491009
ref: 31
OIL SEAL,FORK OUTER
€ 16.00
32
550201024
ref: 32
LIME GREEN
GUARD,FORK
€ 13.50
33
920721009
ref: 33
BAND,BOOTS
€ 3.00
34
440051023
ref: 34
TUBE,L.H,FORK OUTER
€ 205.00
35
440061023
ref: 35
TUBE,R.H,FORK,OUTER
€ 205.00
36
220B0408
ref: 36
SCREW-PAN-CROS
€ 0.50
37
44045002
ref: 37
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
38
44041040
ref: 38
BOLT-FORK CYLINDER
€ 4.50
39
44045057
ref: 39
GASKET (NAS)
€ 3.00
40
920721010
ref: 40
BAND,BOOTS,R.H
€ 3.00
41
220B0425
ref: 41
SCREW-PAN-CROS
€ 0.50
42
920011058
ref: 42
BOLT,HEX HEAD,8X25
€ 2.00
