CARBURETOR ('74-'76 KX125/A/A3)
KX125-A5 1979

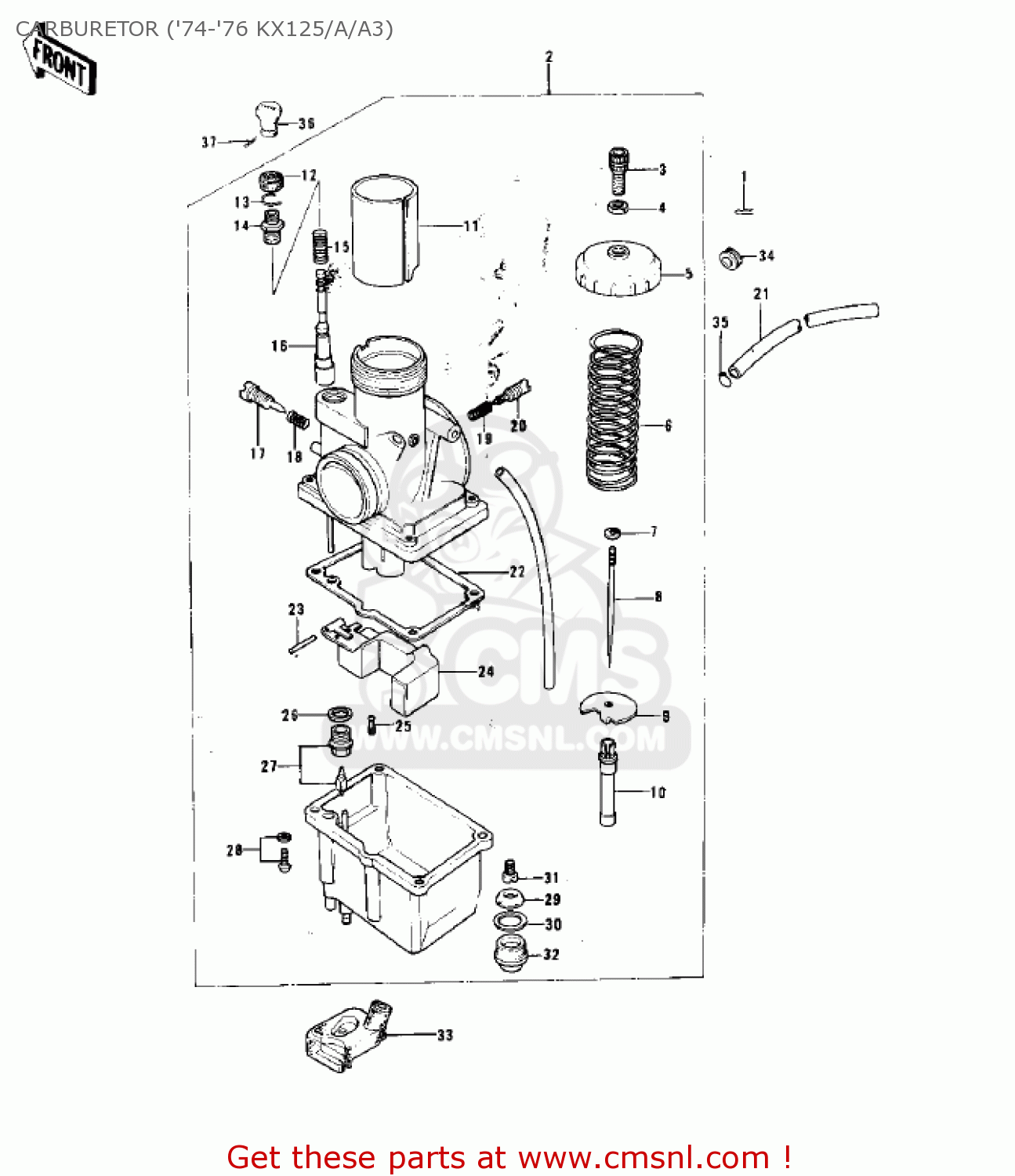

Carburetor ('74-'76 kx125/a/a3) diagram KX125-A5 1979
CARBURETOR ('74-'76 KX125/A/A3) KX125-A5 1979
×
prices are in EUR
ref
part #
description
quantity
1
92036018
ref: 1
CIRCLIP
€ 2.50
2
16001208
ref: 2
VM26SC
CARBURETOR ASSY
€ 262.00
3
16002014
ref: 3
ADJUSTER-CABLE
€ 8.00
4
16003006
ref: 4
NUT-CABLE ADJUST LOCK
€ 4.50
5
16004025
ref: 5
CAP,MIXING CHAMBER
€ 23.50
6
16006023
ref: 6
SPRING,THROTTLE VALV
€ 10.00
7
16008010
ref: 7
CLAMP,E-TYPE
€ 5.00
8
16009040
ref: 8
4EJ3
NEEDLE-JET,4EJ3
€ 28.00
9
16007025
ref: 9
SPRING,THRTTL VALVES
€ 6.00
10
16017082
ref: 10
0-2
NEEDLE JET,O-2
€ 17.00
11
16025079
ref: 11
CA2.5
VALVE,THROTTLE,CA2.5
€ 45.50
12
16036012
ref: 12
BOOT,STARTER PLUNGER
€ 4.50
13
920371077
ref: 13
CLAMP
€ 3.00
14
16012021
ref: 14
CAP-STARTER PLUNGER
€ 11.50
15
16013010
ref: 15
SPRING,STARTER PLUNGR
€ 3.50
16
16016014
ref: 16
PLUNGER,STARTER
€ 12.00
17
16021023
ref: 17
SCREW-THROTTLE STOP
€ 12.50
18
16022005
ref: 18
SPRING-THR STOP SCREW
€ 5.50
19
16022007
ref: 19
SPRING-THR STOP SCREW
€ 5.50
20
16014002
ref: 20
SCREW-PILOT AIR
€ 11.00
21
92059109
ref: 21
PIPE,FUEL
€ 15.00
22
16019023
ref: 22
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
23
16032006
ref: 23
PIN,FLOAT
€ 4.00
24
16031026
ref: 24
FLOAT
€ 40.00
25
92064023
ref: 25
#35
JET-PILOT,#35
€ 13.00
26
16029004
ref: 26
WASHER-FLOAT VLV SEAT
€ 2.50
27
16030005
ref: 27
VALVE-FLOAT,2.5
€ 43.00
28
223B0414
ref: 28
SCREW PAN-WS-CROS
€ 2.50
29
16008012
ref: 29
RING,MAIN JET HOLD
€ 13.50
30
16034008
ref: 30
WASHER,MAIN JET COVER (NAS)
€ 4.00
31
92063073
ref: 31
STD
JET-MAIN,#107.5R
€ 9.50
31
920631028
ref: 31
JET-MAIN,#A102.5R
€ 10.00
31
920631042
ref: 31
OPTION
JET-MAIN,#A105R
€ 10.50
31
920631038
ref: 31
OPTION
JET-MAIN,#A110
€ 10.50
31
92063075
ref: 31
OPTION
MAIN JET,#112.5R
€ 10.00
32
92001146
ref: 32
BOLT,BANJO
€ 12.50
33
16136010
ref: 33
GROMMET,OVERFLOW PIP
€ 3.50
34
92071083
ref: 34
GROMMET,FUEL PIPE
€ 1.00
34
92071090
ref: 34
KX125A-3
GROMMET,FUEL PIPE
€ 1.00
35
92037010
ref: 35
CLAMP-FUEL PIPE
€ 2.50
36
92077022
ref: 36
KNOB,CARBURETOR
€ 7.00
37
550D1615
ref: 37
PIN-COTTER,1.6X15
€ 1.50
