GEAR CHANGE MECHANISM ('78-'79 K
KX125-A5 1979

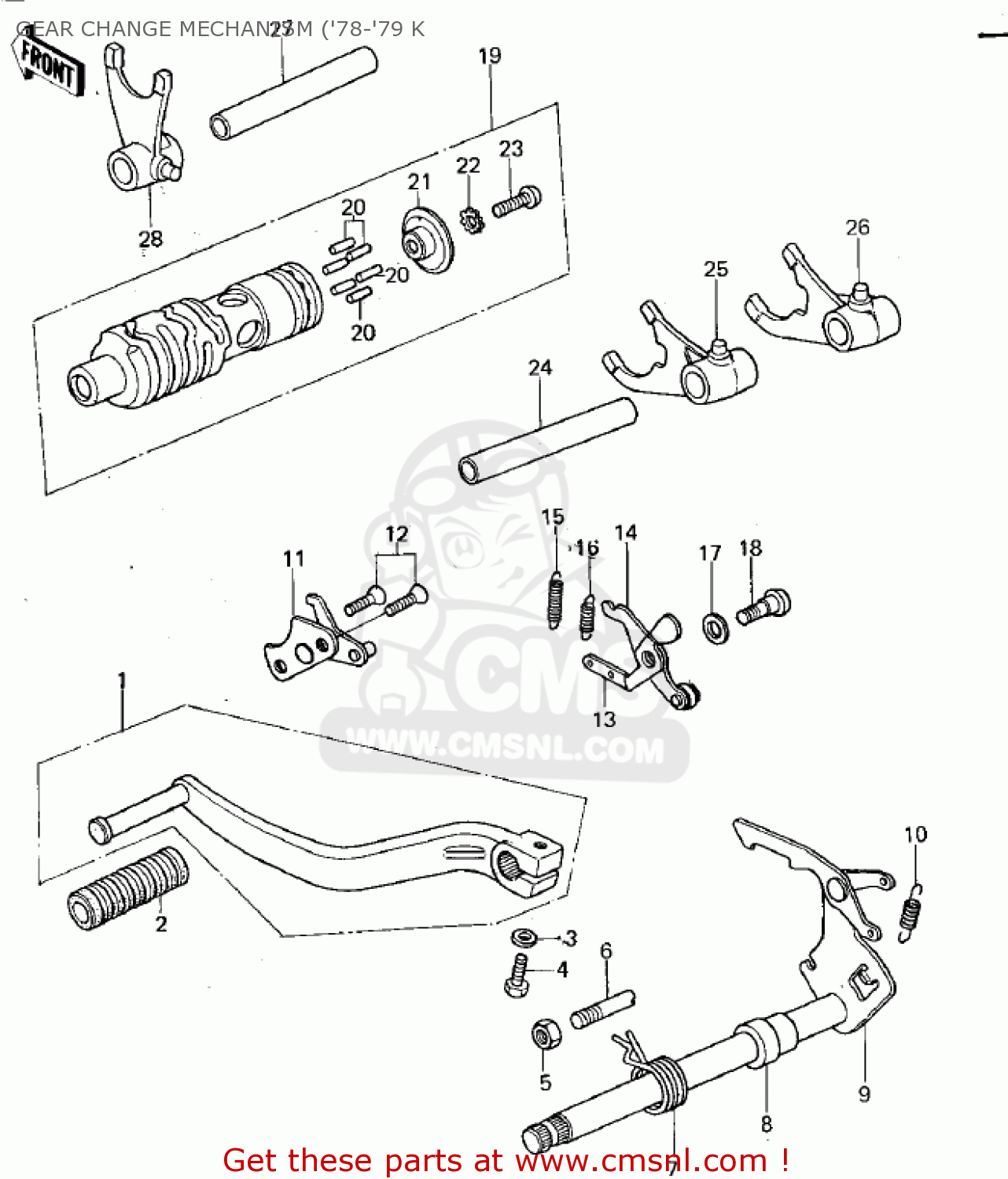

Gear change mechanism ('78-'79 k diagram KX125-A5 1979
GEAR CHANGE MECHANISM ('78-'79 K KX125-A5 1979
×
prices are in EUR
ref
part #
description
quantity
1
131561013
ref: 1
PEDAL ASSY GEAR CHANG
€ 52.50
2
921601108
ref: 2
DAMPER,CHANGE PEDAL
€ 5.50
3
410B0600
ref: 3
WASHER-PLAIN-SMALL,6M
€ 0.50
4
112G0622
ref: 4
BOLT-UPSET
€ 2.50
5
318B0800
ref: 5
KX125-A4
NUT,8MM
€ 0.50
5
312B0800
ref: 5
KX125-A5~
NUT,8MM
€ 0.50
6
92043061
ref: 6
KX125-A4
PIN-CHANGE PEDAL SPRG
€ 1.50
6
920431056
ref: 6
KX125-A5~
PIN,CHNG PAL RTN SPRG
€ 1.50
7
920811129
ref: 7
SPRING,TENTION
€ 6.50
8
920271069
ref: 8
COLLAR
€ 3.50
9
131611031
ref: 9
LEVER-COMP-CHANGE SHA
€ 69.00
10
92081076
ref: 10
SPRING-CHANG LEVER
€ 3.50
11
132441002
ref: 11
KX125-A4
STOPPER ASSY,CHANG DR
€ 9.00
11
132441002
ref: 11
KX125-A5~
STOPPER ASSY,CHANG DR
€ 9.00
12
221B0612
ref: 12
SCREW-CNTSNK HD,6X12
€ 1.50
13
131681012
ref: 13
LEVER A,GEAR CHANGE
€ 2.50
14
132361002
ref: 14
LEVER B,GEAR CHANGE
€ 5.50
15
92081119
ref: 15
SPRING,CHANGE LEVER
€ 3.00
16
920811061
ref: 16
SPRING GEAR CHANGE
€ 2.50
17
920221053
ref: 17
O.D. = 14 M/M
WASHER,PLAIN
€ 1.50
18
92011023
ref: 18
SCREW-PAN HEAD
€ 2.50
19
132391025
ref: 19
KX125-A4
DRUM ASSY,GEAR CHANGE
€ 155.50
19
132391025
ref: 19
KX125-A5~
DRUM ASSY,GEAR CHANGE
€ 155.50
20
920431028
ref: 20
KX125-A4
PIN,DOWEL,4X12.8
€ 1.00
20
92042014
ref: 20
KX125-A5~
PIN-GEAR CHANGE DRUM
€ 0.50
21
13142017
ref: 21
KX125-A4
HOLDER,CHANGE DRUM PI
€ 8.00
21
130911052
ref: 21
KX125-A5~
HOLDER,GEAR CHANGE DR
€ 24.00
22
464H0600
ref: 22
NOT USE FOR P/N 1323
WASHER-LOCK,6MM
€ 0.50
23
220B0614
ref: 23
KX125-A4
SCREW-PAN HEAD,6X14
€ 2.00
23
221B0620
ref: 23
KX125-A5~
SCREW-CNTSNK HD,6X20
€ 0.50
24
490471001
ref: 24
ROD,SHIFT,90MM
€ 7.50
25
131401011
ref: 25
SHIFT FORK
€ 28.00
26
131401012
ref: 26
SHIFT FORK
€ 28.50
27
490471004
ref: 27
ROD,SHIFT,82MM
€ 7.50
28
131401010
ref: 28
SHIFT FORK
€ 40.00
