ENGINE COVERS ('78-'79 KX125-A4/

KX125-A5 1979

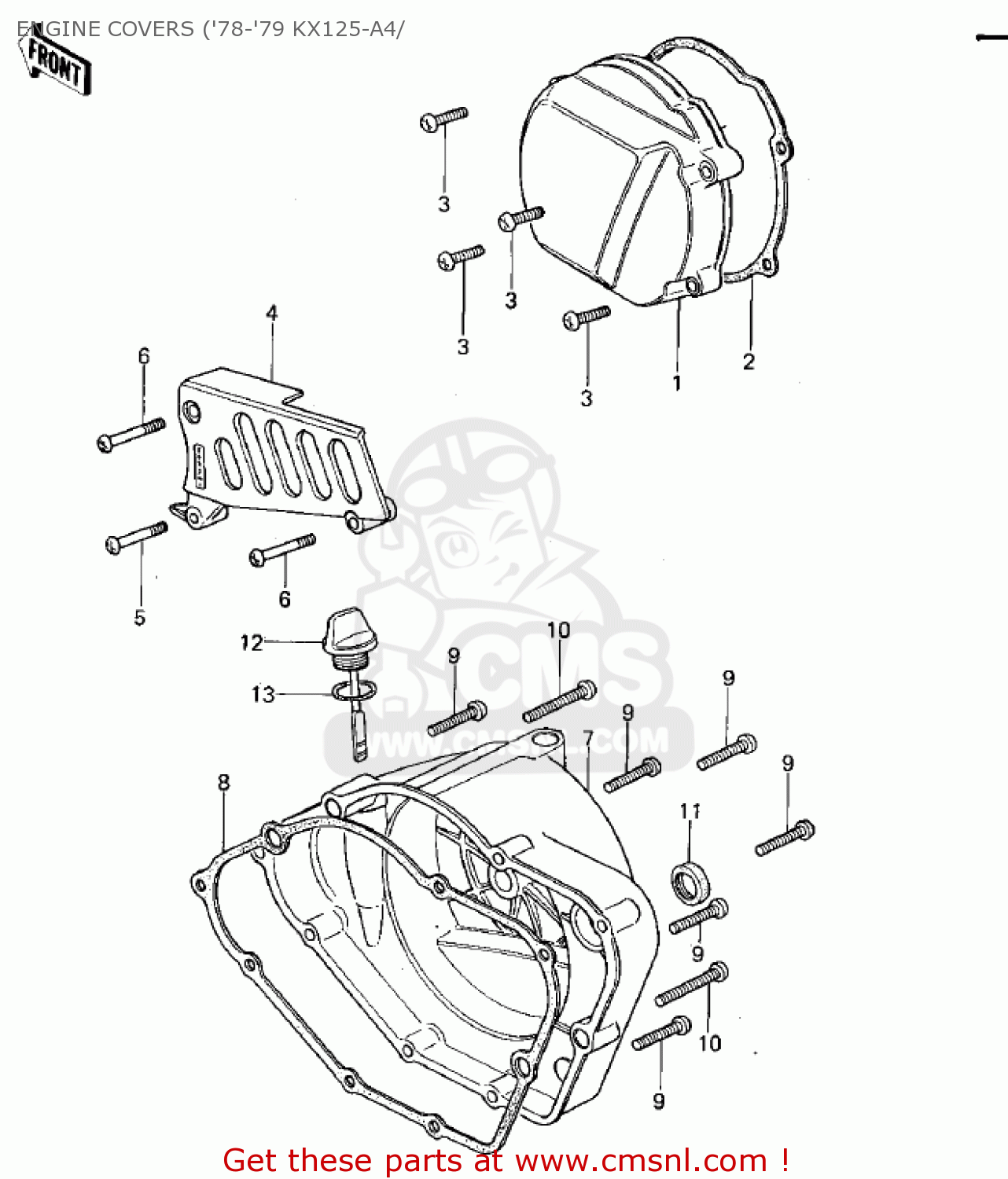

Engine covers ('78-'79 kx125-a4/ diagram KX125-A5 1979

ENGINE COVERS ('78-'79 KX125-A4/ KX125-A5 1979
ENGINE COVERS ('78-'79 KX125-A4/ KX125-A5 1979
ENGINE COVERS ('78-'79 KX125-A4/ KX125-A5 1979
prices are in EUR
ref
part #
description
quantity
1
14031101321
ref: 1
COVER,L.H ENGINE
14031101321
€ 59.50
2
110091041
ref: 2
GASKET,L.H ENGINE (MCA)
110091041
€ 9.00
3
220B0630
ref: 3
SCREW-PAN HEAD,6X30
220B0630
€ 2.50
4
14026101221
ref: 4
COVER,FRONT CHAIN
14026101221
€ 17.50
5
220B0635
ref: 5
SCREW-PAN HEAD,6X35
220B0635
€ 1.00
6
220B0640
ref: 6
SCREW-PAN HEAD,6X40
220B0640
€ 2.00
7
14032100421
ref: 7
COVER R.H ENGINE F.B
€ 131.50
8
110091040
ref: 8
GASKET,R.H ENGINE COV (MCA)
110091040
€ 15.50
9
220B0630
ref: 9
SCREW-PAN HEAD,6X30
220B0630
€ 2.50
10
220B0640
ref: 10
SCREW-PAN HEAD,6X40
220B0640
€ 2.00
11
92049002
ref: 11
OIL SEAL SB16244
92049002
€ 6.00
12
161151001
ref: 12
PLUG,OIL FILLER
€ 7.00
13
670B2020
ref: 13
O RING,20MM
670B2020
€ 1.00
