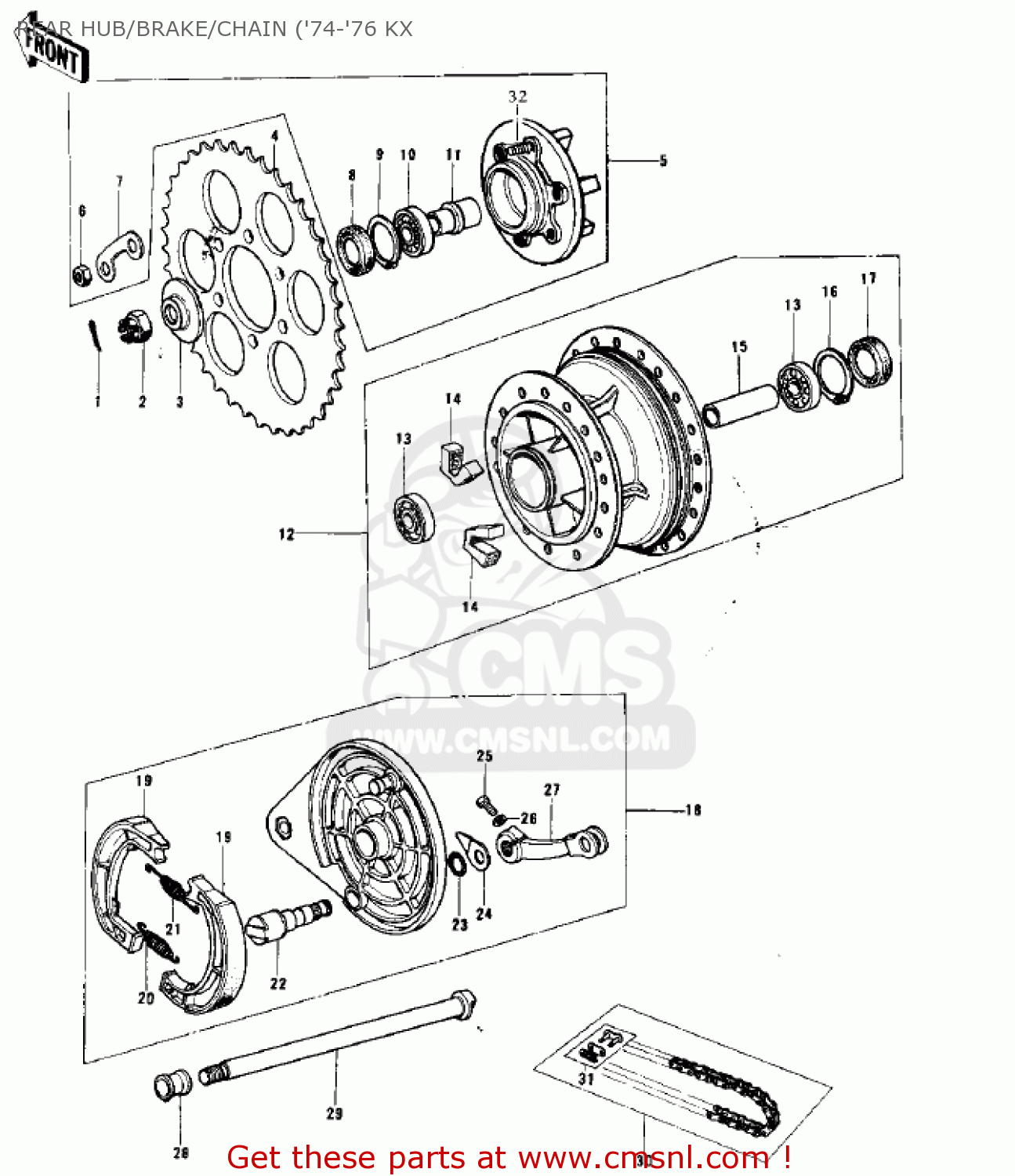

REAR HUB/BRAKE/CHAIN ('74-'76 KX

ref

part #

description

quantity

1

550D4035
ref: 1

PIN-COTTER,4.0X35

€ 1.00

2

92103006
ref: 2

NUT,CASTLE,14MM

€ 9.00

3

42032048
ref: 3

COLLAR,REAR AXLE,L.H

€ 58.00

4

42041141
ref: 4
STD

REAR SPROCKET,60T

€ 65.50

4

42041148
ref: 4
OPTION

REAR SPROCKET,58T

€ 55.00

4

42041149
ref: 4
OPTION

REAR SPROCKET,56T

€ 55.00

5

4200801921
ref: 5

COUPLING ASY,RR HUB

€ 85.50

6

311B0800
ref: 6

NUT,8MM

€ 0.50

7

92088019
ref: 7

WASHER,SPROCKET LOCK

€ 4.00

8

92050060
ref: 8

OIL SEAL,RR HUB BRNK

€ 12.00

9

920331041
ref: 9

CIRCLIP,42MM

€ 4.00

10

601B6004
ref: 10

BEARING-BALL,#6004C3

€ 10.50

11

42036018
ref: 11

SLEEVE,RR HUB COUPLN

€ 19.50

12

4200503821
ref: 12
FLAT BLACK

DRUM ASY,RR BK,BLACK

€ 134.50

12

4200504721
ref: 12
KX125A/A-3

DRUM ASY,RR BK,BLACK

€ 134.50

13

601B6202
ref: 13

BEARING-BALL,#6202C3

€ 14.50

14

42014023
ref: 14

DAMPER,RR HUB SHOCK

€ 10.00

15

42010029
ref: 15

COLLAR,L=60

€ 11.00

15

42010029
ref: 15
KX125A/A-3

COLLAR,L=60

€ 11.00

16

481J3500
ref: 16

CIRCLIP-TYPE-C,35MM

€ 1.00

17

654A223508
ref: 17

OIL SEAL

€ 7.50

18

4200604421
ref: 18
FLAT BLACK

PANEL ASY,RR BK,BLAK

€ 85.00

18

4200607321
ref: 18
FLAT BLACK

PANEL ASSY,REAR BRK

€ 173.00

19

42019010
ref: 19

SHOE,BRAKE (MCA)

€ 26.00

20

920811550
ref: 20

SPRING,BRAKE SHOE

€ 6.00

21

920811766
ref: 21

SPRING,BRAKE SHOE

€ 5.50

22

42026025
ref: 22

CAM SHAFT,REAR BRAKE

€ 13.50

23

92055004
ref: 23

RING-O,BRAKE CAM

€ 3.00

24

41085002
ref: 24

INDICATOR,BRAKE SHOE

€ 2.50

25

112B0622
ref: 25

BOLT, 6X22

€ 2.50

26

410B0600
ref: 26

WASHER-PLAIN-SMALL,6M

€ 0.50

27

42029030
ref: 27

LEVER-BRAKE CAM

€ 44.50

28

42032047
ref: 28

COLLAR,REAR AXLE,R.H

€ 6.50

29

42031046
ref: 29

AXLE,REAR

€ 45.50

30

92057088
ref: 30
1241

CHAIN ASY,DRIVE,122L

€ 54.00

31

920581015
ref: 31

JOINT-CHAIN,EK428SH

€ 3.50

32

920041015
ref: 32

STUD,8X17

€ 2.50
