SEAT/SIDE COVERS ('78-'79 KX125-
KX125 1974

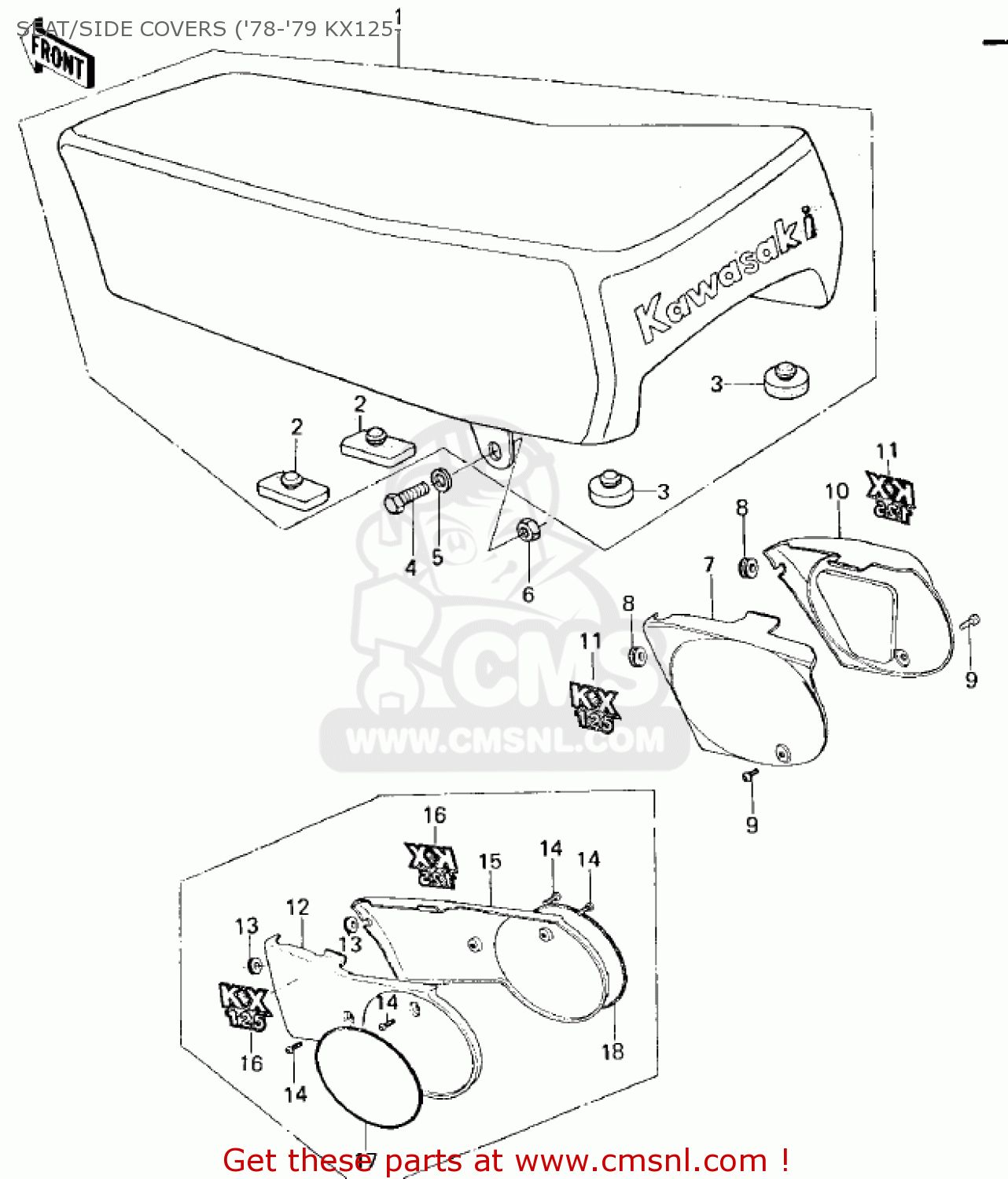

Seat/side covers ('78-'79 kx125- diagram KX125 1974
SEAT/SIDE COVERS ('78-'79 KX125- KX125 1974
×
prices are in EUR
ref
part #
description
quantity
1
530011016
ref: 1
KX125-A4
SEAT ASSY
€ 110.50
1
530011029
ref: 1
KX125-A5~
SEAT ASSY
€ 239.50
2
920751054
ref: 2
DAMPER
€ 3.00
3
92075281
ref: 3
DAMPER,9X24X14
€ 4.00
4
115B0822
ref: 4
BOLT-SMALL-UPSET,8X22
€ 2.00
5
411B0800
ref: 5
WASHER-PLAIN,8MM
€ 0.50
6
920151124
ref: 6
NUT,LOCK,8MM
€ 3.50
7
3600110216W
ref: 7
KX125-A4
COVER,L.H SIDE,L.GREN
€ 73.50
8
920751028
ref: 8
KX125-A4
DAMPER RUBBER
€ 3.00
9
920091287
ref: 9
KX125-A4
SCREW,6X14
€ 1.50
10
3600110226W
ref: 10
KX125-A4
COVER,R.H SIDE,L.GREN
€ 49.00
11
560181025
ref: 11
KX125-A4
EMBLEM,SIDE COVER
€ 9.00
12
3600110666W
ref: 12
KX125-A5~
COVER,L.H.SIDE,L.GRN
€ 65.50
13
920751028
ref: 13
KX125-A5~
DAMPER RUBBER
€ 3.00
14
920091287
ref: 14
KX125-A5~
SCREW,6X14
€ 1.50
15
3600110676W
ref: 15
KX125-A5~
COVER,R.H.SIDE,LOGRN
€ 61.00
16
560181088
ref: 16
KX125-A5~
EMBLEM,SIDE COVER
€ 6.00
17
560271513
ref: 17
KX125-A5~
PATTERN,SIDE COVER,LH
€ 9.00
18
560271514
ref: 18
KX125-A5~
PATTERN,SIDE COVER,RH
€ 9.00
