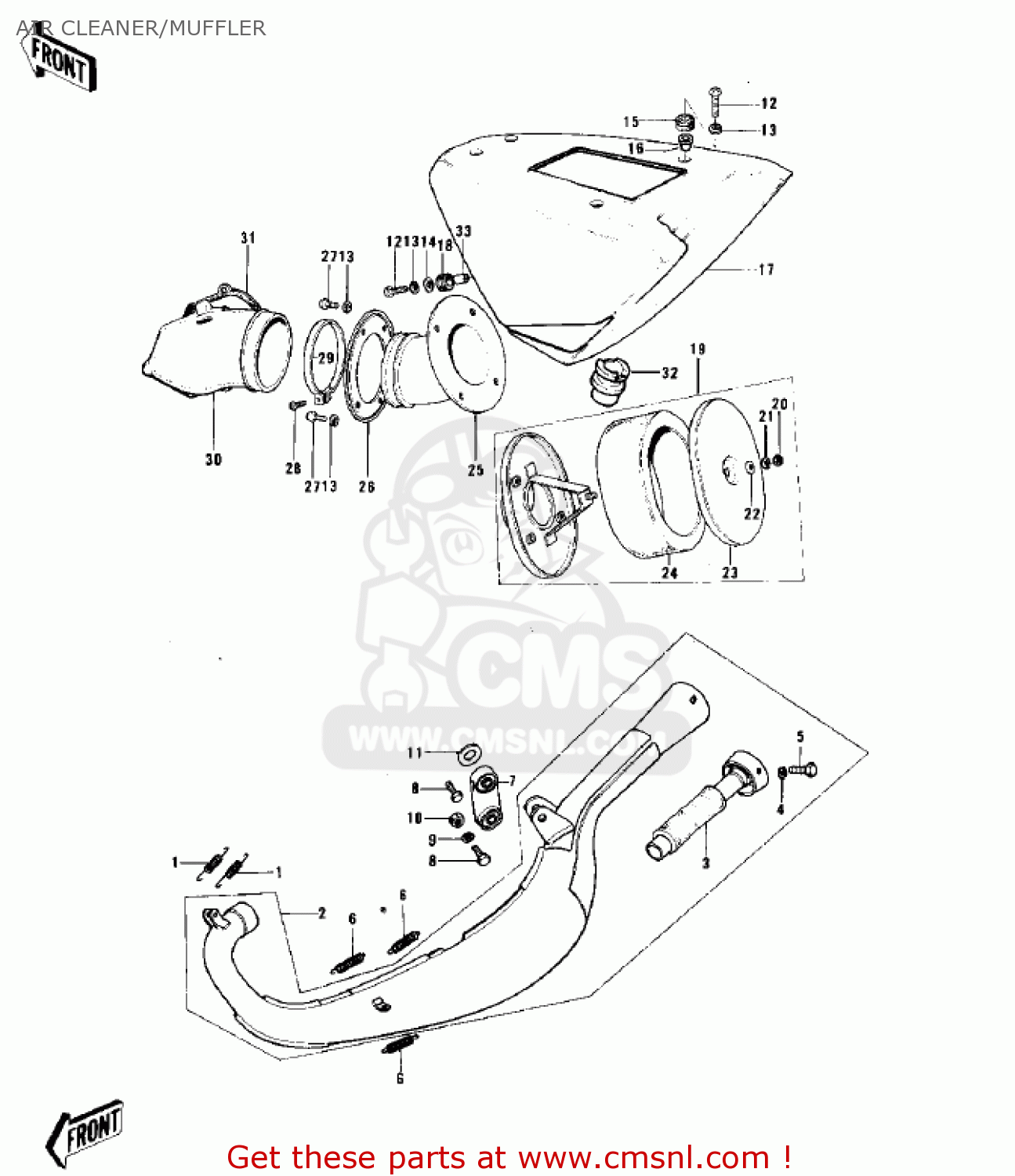

AIR CLEANER/MUFFLER

ref

part #

description

quantity

1

18071003
ref: 1

SPRING,MUFFLER CONNEC

€ 7.50

2

18002117
ref: 2

MUFFLER ASSY

€ 235.50

3

18033082
ref: 3

BAFFLE TUBE

€ 19.50

4

464H0600
ref: 4

WASHER-LOCK,6MM

€ 0.50

5

112G0612
ref: 5

BOLT-UPSET

€ 2.50

6

18071006
ref: 6

SPRING,MUFFLER

€ 7.50

7

18024022
ref: 7

BRACKET,MUFFLER

€ 24.50

8

110N0835
ref: 8

BOLT, HEX HEAD, 8X35

€ 1.50

9

461F0800
ref: 9

WASHER-SPRING,8MM

€ 0.50

10

92019018
ref: 10

NUT,8MM

€ 5.50

11

411B1200
ref: 11

WASHER-PLAIN,12MM

€ 0.50

12

220B0620
ref: 12

SCREW-PAN HEAD,6X20

€ 2.50

13

461F0600
ref: 13

WASHER-SPRING,6MM

€ 0.50

14

92022024
ref: 14

WASHER,7X16X1.2

€ 2.50

15

92075076
ref: 15

DAMPER

€ 3.00

16

92027194
ref: 16

COLLAR

€ 3.50

17

11011037
ref: 17

BODY,AIR CLEANER

€ 129.00

18

92075107
ref: 18

DAMPER

€ 2.00

19

11010075
ref: 19

AIR CLEANER ASSY

€ 87.00

20

92019019
ref: 20

NUT,6MM

€ 4.00

21

461F0600
ref: 21

WASHER-SPRING,6MM

€ 0.50

22

411B0600
ref: 22

WASHER-PLAIN,6MM

€ 0.50

23

11012035
ref: 23

CAP,AIR CLEANER

€ 7.00

24

11013041
ref: 24

ELEMENT,AIR CLEANER

€ 35.50

25

11026011
ref: 25

CONNECTOR

€ 20.50

26

11012044
ref: 26

CAP,CONNECTOR

€ 3.50

27

220B0616
ref: 27

SCREW-PAN HEAD,6X16

€ 2.50

28

220B0535
ref: 28

SCREW-PAN-CROS

€ 2.00

28

220B0540A
ref: 28
KX125A-3

SCREW-PAN HEAD,5X40

€ 2.00

29

92037106
ref: 29

CLAMP

€ 9.00

30

11015044
ref: 30

INLET PIPE

€ 53.50

31

11017012
ref: 31

GASKET,INLET PIPE (MCA)

€ 4.00

32

92067019
ref: 32

PLUG,AIR DRAIN

€ 2.50

33

92027129
ref: 33

COLLAR,6.8X10X8.5

€ 3.00
