GEAR CHANGE MECHANISM ('74-'76 K

KX125 1974

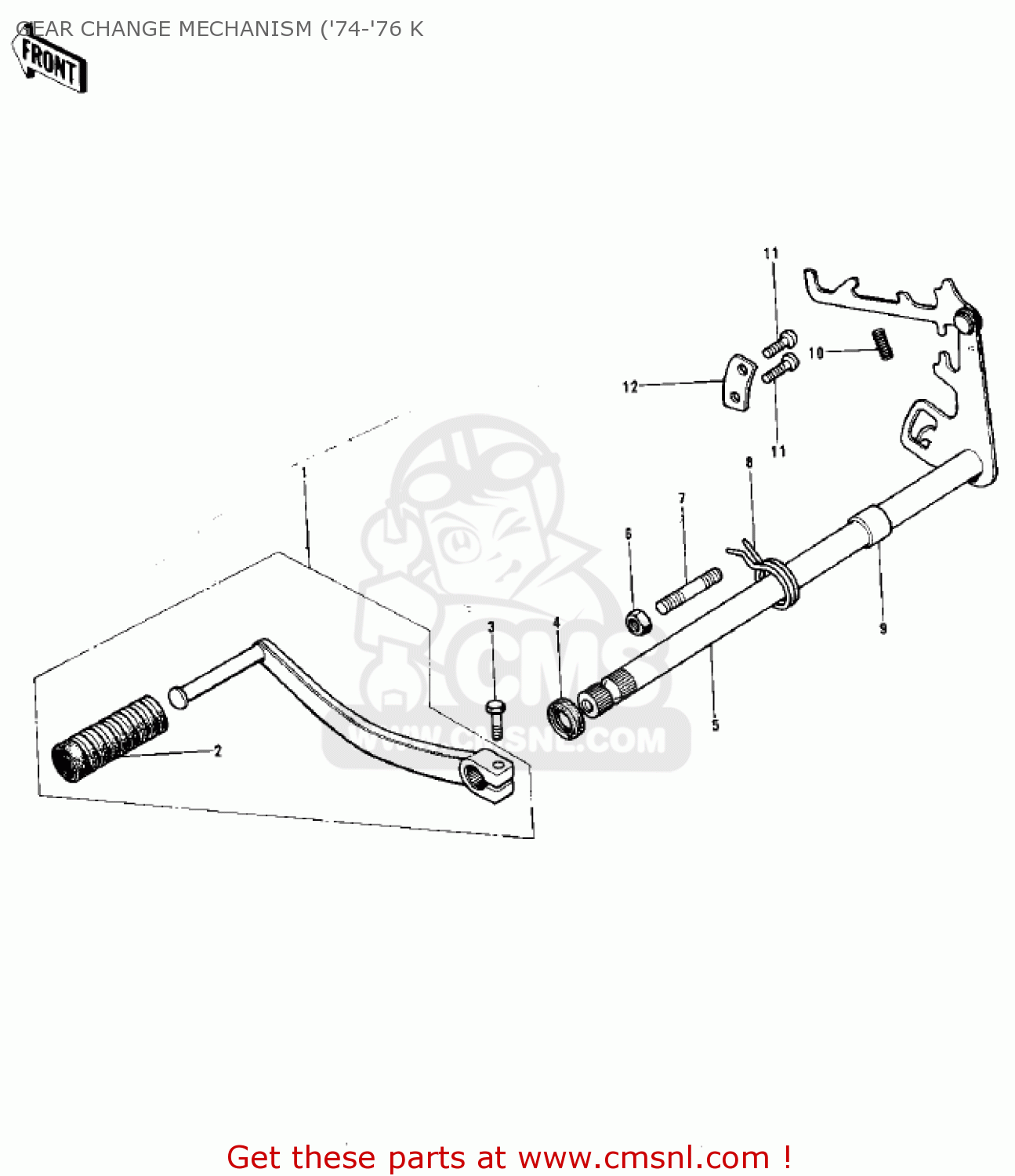

Gear change mechanism ('74-'76 k diagram KX125 1974

GEAR CHANGE MECHANISM ('74-'76 K KX125 1974
GEAR CHANGE MECHANISM ('74-'76 K KX125 1974
GEAR CHANGE MECHANISM ('74-'76 K KX125 1974
prices are in EUR
ref
part #
description
quantity
1
132421272
ref: 1
LEVER-ASSY-CHANGE,PED
€ 25.50
2
13157004
ref: 2
RUBBER-CHANGE PEDAL
13157004
€ 4.00
3
112G0620
ref: 3
BOLT 6X20
112G0620
€ 1.00
4
920491271
ref: 4
SEAL, OIL
920491271
€ 7.00
5
13161040
ref: 5
LEVER-COMP-CHANGE SHA
13161040
€ 51.50
6
312B0800
ref: 6
NUT,8MM
312B0800
€ 0.50
7
920011401
ref: 7
BOLT,RETURN SPRING
920011401
€ 3.00
8
920811129
ref: 8
SPRING,TENTION
920811129
€ 6.50
9
92027205
ref: 9
COLLAR,GEAR CHNG LEV
92027205
€ 4.00
10
92081124
ref: 10
SPRING,GEAR CHANGE
92081124
€ 3.00
11
220B0614
ref: 11
SCREW-PAN HEAD,6X14
220B0614
€ 2.00
12
13169013
ref: 12
PLATE,CHNG DRUM PSTN
13169013
€ 3.00
