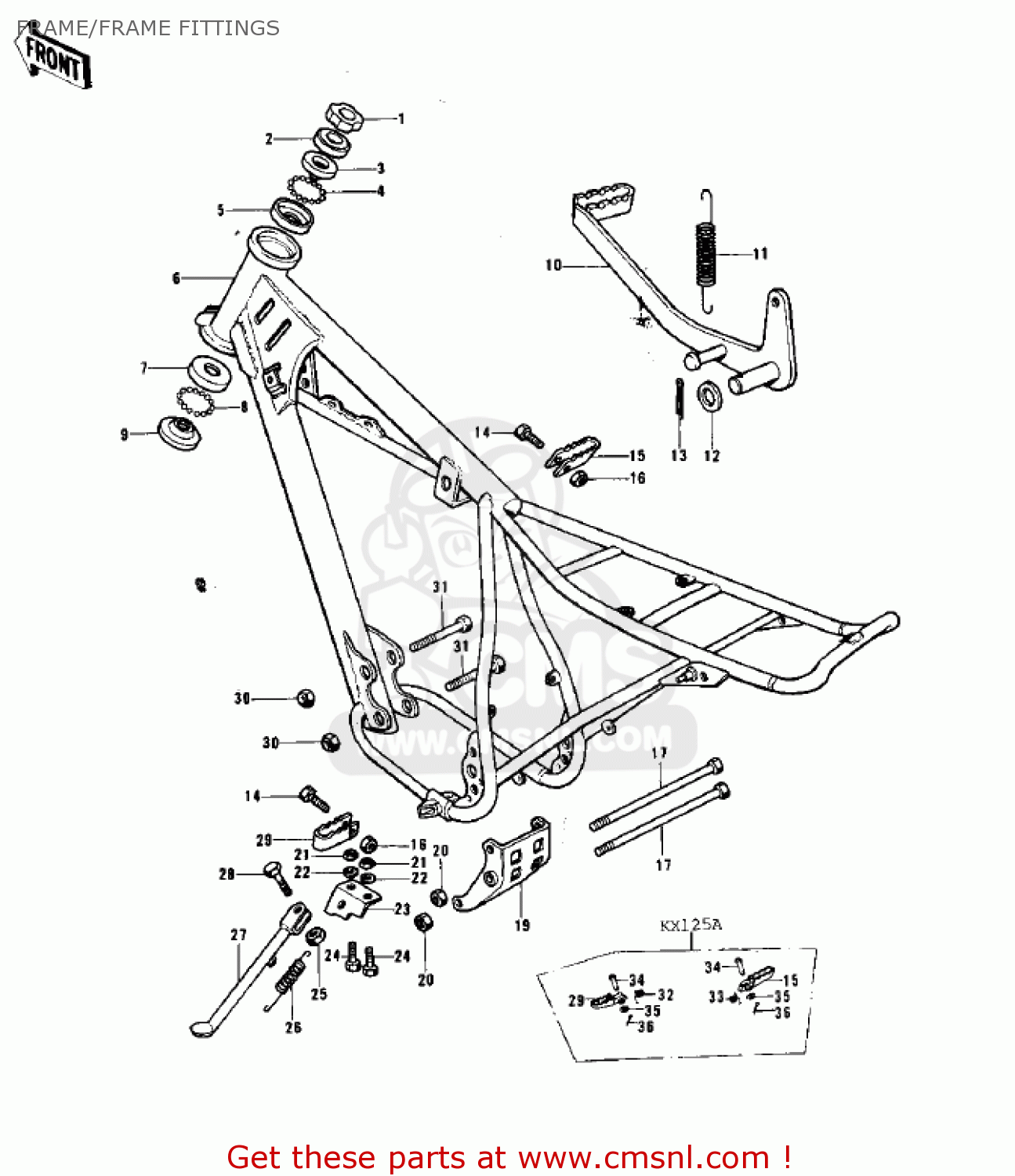

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

92090022
ref: 1

NUT,STEERING LOCK,25M

€ 18.50

2

46098012
ref: 2

CAP,STEERING STEM

€ 4.50

3

92047014
ref: 3

RACE,STEERING STEM BE

€ 12.50

4

600A0600
ref: 4

BALL-STEEL,3/16

€ 0.50

5

92048009
ref: 5

RACE,STRG STM

€ 14.00

6

32002091
ref: 6

FRAME

€ 300.00

6

32002112
ref: 6
KX125A/4-3

FRAME

€ 306.00

7

92048005
ref: 7

RACE-STEERING BEARING

€ 11.50

8

600A0800
ref: 8

BALL-STEEL,1/4

€ 0.50

9

92047010
ref: 9

CONE-STERNG BERG LOW

€ 10.00

10

43001063
ref: 10

PEDAL,BRAKE

€ 45.00

11

43005026
ref: 11

SPRING,BRAKE PEDAL

€ 2.50

12

410B1200
ref: 12

WASHER-PLAIN-SMALL,12

€ 0.50

13

550D2520
ref: 13

PIN-COTTER,2.5X20

€ 1.00

14

110B0838
ref: 14

BOLT,HEX HEAD,8X38

€ 1.00

15

34028018
ref: 15

BAR,R.H FOOTREST

€ 8.00

15

34028026
ref: 15
KX125A/A-3

BAR,FOOTREST,R.H

€ 23.50

16

92019018
ref: 16

NUT,8MM

€ 5.50

17

920011248
ref: 17

BOLT,HEX HEAD,10X125

€ 8.00

19

32117007
ref: 19

BRACKET,ENGINE

€ 16.00

20

92019016
ref: 20

NUT,10MM

€ 3.00

21

312B0800
ref: 21

NUT,8MM

€ 0.50

22

461F0800
ref: 22

WASHER-SPRING,8MM

€ 0.50

23

34008009
ref: 23

BRACKET,SIDE STANDE

€ 15.50

24

115B0822
ref: 24

BOLT-SMALL-UPSET,8X22

€ 2.00

25

315B1000
ref: 25

NUT,10MM

€ 0.50

26

34025004
ref: 26

SPRING-SIDE STAND

€ 4.50

27

34024045
ref: 27

STAND,SIDE

€ 19.50

28

113G1028
ref: 28

BOLT,HEX HEAD,10X28

€ 4.50

29

34028017
ref: 29

BAR,L.H FOOTREST

€ 17.00

29

34028025
ref: 29
KX125A/A-3

BAR,FOOTREST,L.H

€ 23.50

30

92019018
ref: 30

NUT,8MM

€ 5.50

31

110B0865
ref: 31

BOLT,HEX HEAD,8X65

€ 1.00

32

920811254
ref: 32
KX125A/A-3

SPRING,FOOTREST,L.H

€ 3.50

33

920811255
ref: 33
KX125A/A-3

SPRING,FOOTREST,R.H

€ 4.50

34

92043115
ref: 34
KX125A/A-3

PIN,FOOTREST BAR FIT

€ 6.50

35

410B0800
ref: 35
KX125A/A-3

WASHER-PLAIN-SMALL,8M

€ 0.50

36

550D2515
ref: 36
KX125A/A-3

PIN COTTER,295X15

€ 0.50
