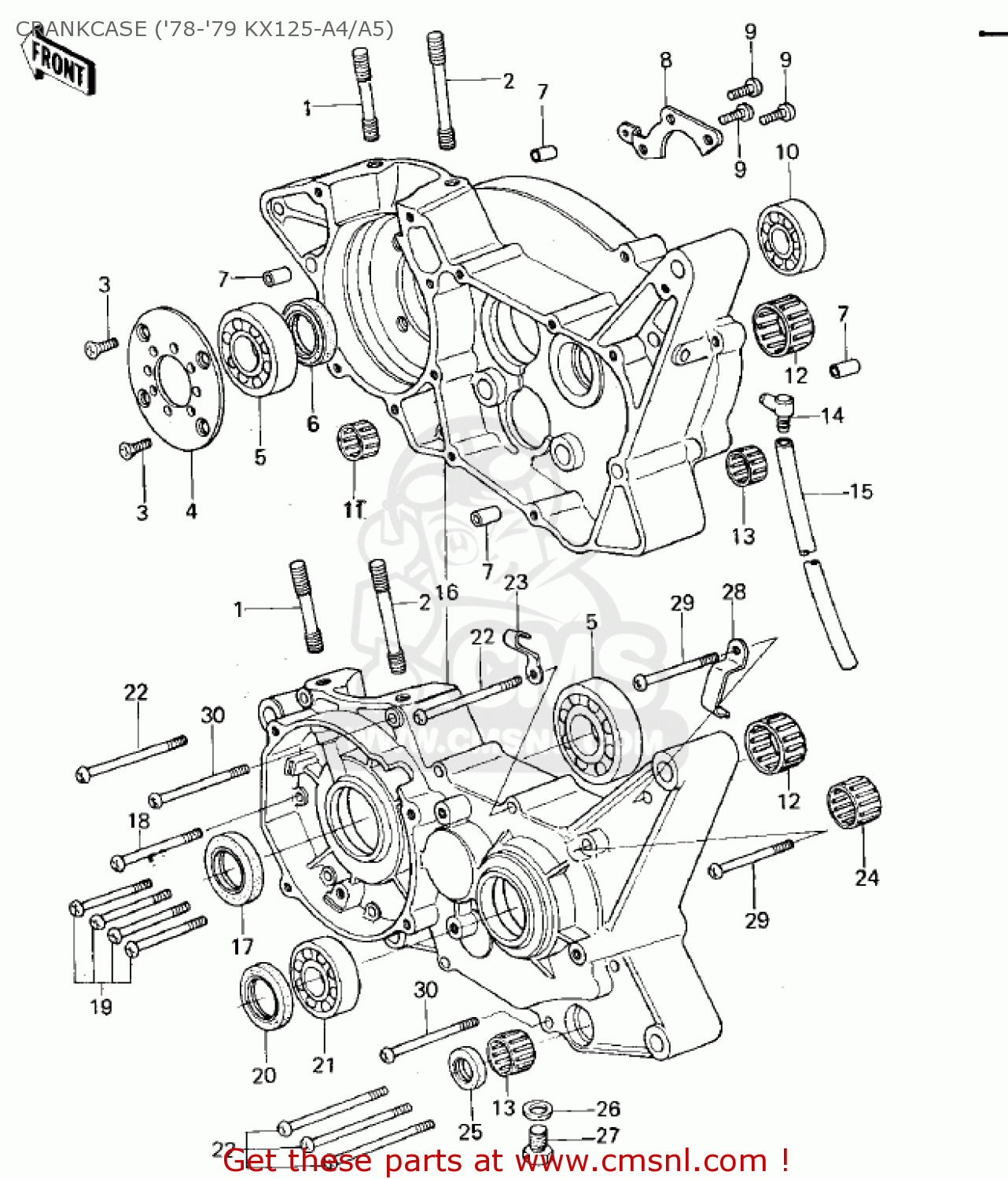

CRANKCASE ('78-'79 KX125-A4/A5)

ref

part #

description

quantity

1

920041008
ref: 1

STUD, 8X25

€ 3.50

2

920041010
ref: 2

STUD,8X56

€ 7.00

3

221B0616
ref: 3

SCREW-CNTSNK HD,6X16

€ 0.50

3

221B0614
ref: 3

SCREW-CNTSNK HD,6X14

€ 2.50

4

140141002
ref: 4

PLATE,POSITIONING

€ 8.00

5

920451006
ref: 5

BEARING-BALL,6304SH2,

€ 27.50

6

920491250
ref: 6

SEAL-OIL

€ 12.00

7

920431037
ref: 7

PIN,DOWEL,10X8.2X14

€ 0.50

8

140141003
ref: 8

PLATE POSITIONING

€ 3.00

9

220B0616
ref: 9

SCREW-PAN HEAD,6X16

€ 2.50

10

601B6303
ref: 10

BEARING-BALL,#6303C3

€ 24.00

11

92046043
ref: 11

BEARING-NEEDLE,36BDM4

€ 17.00

12

920461006
ref: 12

BEARING,NEEDLE

€ 17.00

13

920461008
ref: 13

BEARING,NEEDLE

€ 19.50

14

14069003
ref: 14

BREATHER

€ 7.00

15

92059061
ref: 15

PIPE-BREATHER

€ 3.00

16

140015013
ref: 16
KX125-A4

CRANKCASE SET

€ 405.00

16

140015026
ref: 16
KX125-A5~

CRANKCASE SET

€ 393.50

17

920491010
ref: 17

OIL SEAL

€ 12.50

18

220B0655
ref: 18

SCREW-PAN HEAD,6X55

€ 2.50

19

220B0645
ref: 19

SCREW-PAN HEAD,6X45

€ 2.50

20

92050013
ref: 20

OIL SEAL SC25376

€ 9.50

21

920451007
ref: 21

BEARING-BALL,6204SH2,

€ 21.00

22

220B0670
ref: 22

SCREW-PAN HEAD,6X70

€ 2.50

23

92037016
ref: 23

CLAMP,WIRING HARNESS

€ 1.50

24

920461007
ref: 24

BEARING-NEEDLE,TLA161

€ 18.50

25

92051005A
ref: 25

OIL SEAL,TB13225.5

€ 5.50

26

92065058
ref: 26

GASKET, 10,5X16X1 (NAS)

€ 2.50

27

92067001
ref: 27

PLUG-OIL DRAIN

€ 3.00

28

920371073
ref: 28

CLAMP

€ 2.50

29

220B0650
ref: 29

SCREW-PAN HEAD,6X50

€ 2.00

30

220B0660
ref: 30

SCREW-PAN HEAD,6X60

€ 2.50
