REAR HUB/BRAKE/CHAIN ('78-'79 KX
KX125 1974

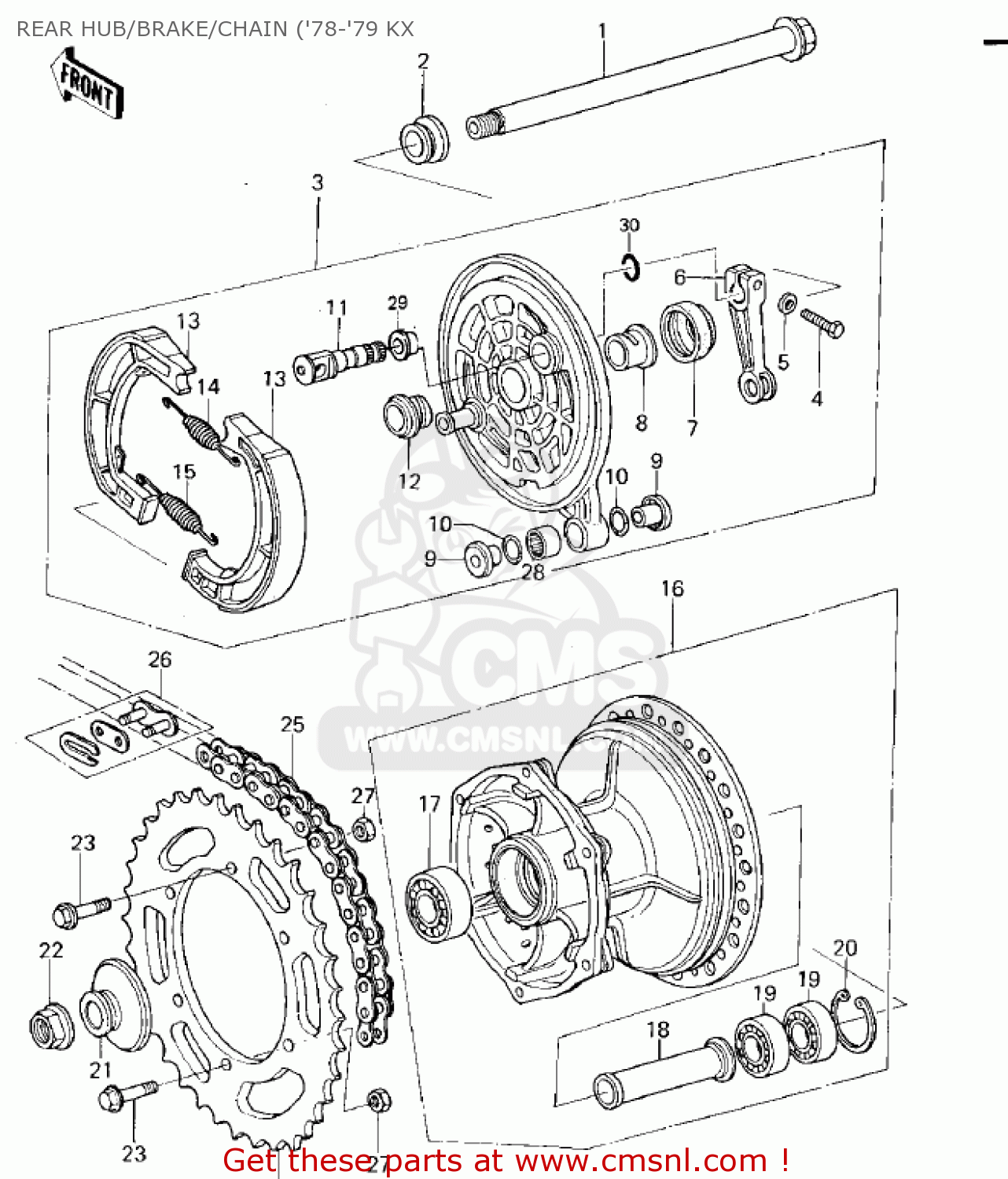

Rear hub/brake/chain ('78-'79 kx diagram KX125 1974
REAR HUB/BRAKE/CHAIN ('78-'79 KX KX125 1974
×
prices are in EUR
ref
part #
description
quantity
1
410681007
ref: 1
AXLE,REAR
€ 65.00
2
920271039
ref: 2
COLLAR,REAR AXLE
€ 3.50
3
41035101221
ref: 3
PANEL ASSY,REAR BRAKE
€ 173.50
4
112G0622
ref: 4
BOLT-UPSET
€ 2.50
5
410B0600
ref: 5
WASHER-PLAIN-SMALL,6M
€ 0.50
6
410531008
ref: 6
LEVER BRAKE,CAM REAR
€ 58.50
7
920931004
ref: 7
OIL SEAL
€ 3.50
8
420361010
ref: 8
R.H.
SLEEVE,RR BRAKE PANEL
€ 26.50
9
920271040
ref: 9
COLLAR,L=11.5
€ 12.50
10
670B2011
ref: 10
O RING,11MM
€ 1.00
11
410501007
ref: 11
CAM SHAFT
€ 19.50
12
420361009
ref: 12
L.H.
SLEEVE,RR BRAKE PANEL
€ 39.50
13
42019010
ref: 13
SHOE,BRAKE (MCA)
€ 26.00
14
920811766
ref: 14
SPRING,BRAKE SHOE
€ 5.50
15
920811550
ref: 15
SPRING,BRAKE SHOE
€ 6.00
16
41034101021
ref: 16
DRUM ASSY,REAR BRAKE
€ 361.00
17
601B6203U
ref: 17
BEARING-BALL,#6203LUC
€ 35.50
18
920271037
ref: 18
COLLAR,REAR BRAKE
€ 35.50
19
601B6003U
ref: 19
BEARING-BALL,#6003UC3
€ 21.50
20
481J3500
ref: 20
CIRCLIP-TYPE-C,35MM
€ 1.00
21
920271072
ref: 21
COLLAR,REAR AXLE
€ 8.50
22
920151015
ref: 22
NUT,16MM
€ 13.50
23
920011040
ref: 23
8 X 32
BOLT,HEX HEAD,8X32
€ 5.50
24
420411017
ref: 24
KX125-A4
REAR SPROCKET,63T
€ 72.00
24
420411011
ref: 24
KX125-A5
REAR,SPROCKET,60T STD
€ 53.50
24
420411018
ref: 24
KX125-A4
REAR SPROCKET,61T
€ 80.00
24
420411019
ref: 24
KX125-A4
REAR SPROCKET,65T
€ 55.00
24
420411012
ref: 24
KX125-A5
REAR SPROCKET,58T,OPT
€ 54.50
24
420411013
ref: 24
KX125-A5
REAR SPROCKET,62T,OPT
€ 76.00
25
920571008
ref: 25
KX125-A4
CHAIN ASSY,DRIVE
€ 96.00
25
920571021
ref: 25
KX125-A5
CHAIN ASSY,DRIVE,134L
€ 48.50
26
920581003
ref: 26
D1D428TR
JOINT,DRIVE CHAIN
€ 5.50
27
92017013
ref: 27
NUT,LOCK,8MM
€ 5.50
28
920461009
ref: 28
BEARING-NEEDLE,HK1216
€ 14.50
29
920281020
ref: 29
BRAKE CAMSHAFT BUSHING
€ 14.00
30
670B2012
ref: 30
O RING,12MM
€ 1.00
