CRANKSHAFT/PISTON
KX125 1974

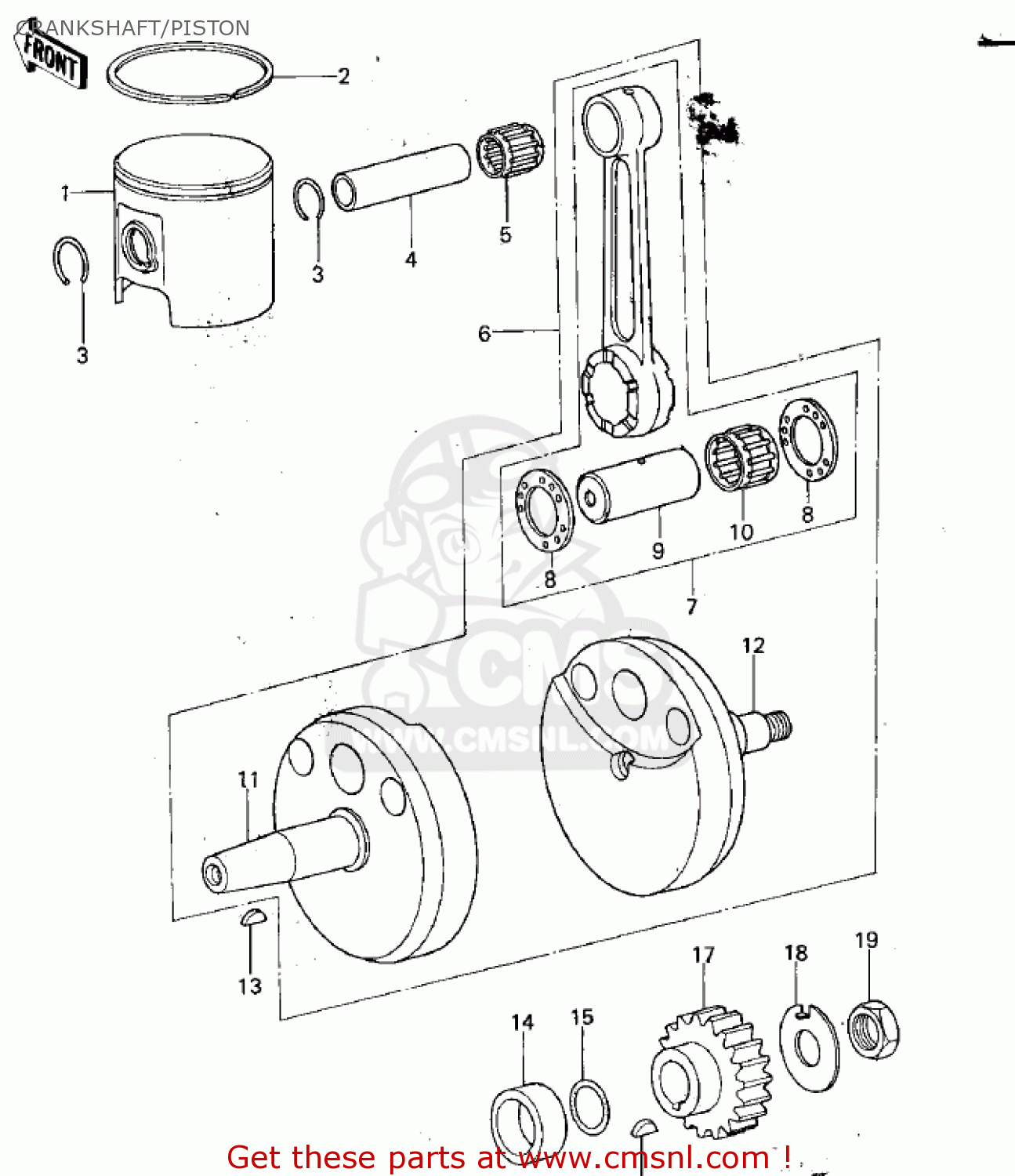

Crankshaft/piston diagram KX125 1974
CRANKSHAFT/PISTON KX125 1974
×
prices are in EUR
ref
part #
description
quantity
1
130011008
ref: 1
PISTON,STD
€ 84.00
2
130031012
ref: 2
RING,PISTON,STD
€ 57.00
3
92036004
ref: 3
CIRCLIP-PISTON PIN
€ 0.50
4
130021003
ref: 4
PIN-PISTON
€ 16.50
5
130331001
ref: 5
R16/19.5BP
BEARING,N,SMALL END
€ 20.00
6
130311016
ref: 6
KX125-A4
CRANK & CONROD ASSY
€ 223.00
6
130311021
ref: 6
KX125-A5~
CRANKSHAFT ASSY
€ 323.00
7
130445009
ref: 7
CONNECTING ROD SET
€ 106.00
8
920261027
ref: 8
SPACER,SIDE
€ 6.50
9
130351001
ref: 9
PIN-CRANK
€ 25.50
10
130341002
ref: 10
SKT22816
BEARING-NEEDLE,SKT228
€ 64.00
11
130371008
ref: 11
KX125-A4
CRANKSHAFT,L.H
€ 104.50
11
130371029
ref: 11
KX125-A5~
CRANKSHAFT,L.H
€ 103.50
12
130371009
ref: 12
KX125-A4
CRANKSHAFT,R.H
€ 104.50
12
130371030
ref: 12
KX125-A5~
CRANKSHAFT,R.H
€ 103.50
13
92038001
ref: 13
WOODRUFF KEY
€ 3.00
14
920271067
ref: 14
COLLAR
€ 9.50
15
670B2016
ref: 15
O RING,16MM
€ 1.00
16
92038003
ref: 16
WOODRUFF KEY-PRY PINI
€ 1.50
17
130971004
ref: 17
GEAR,PRIMARY
€ 17.00
18
920221063
ref: 18
WASHER,CLAW,12.5X32X0
€ 3.50
19
92015006
ref: 19
NUT,12MM
€ 3.50
