TURN SIGNAL
KR250C3 KR1S 1991 EUROPE UK FR GR

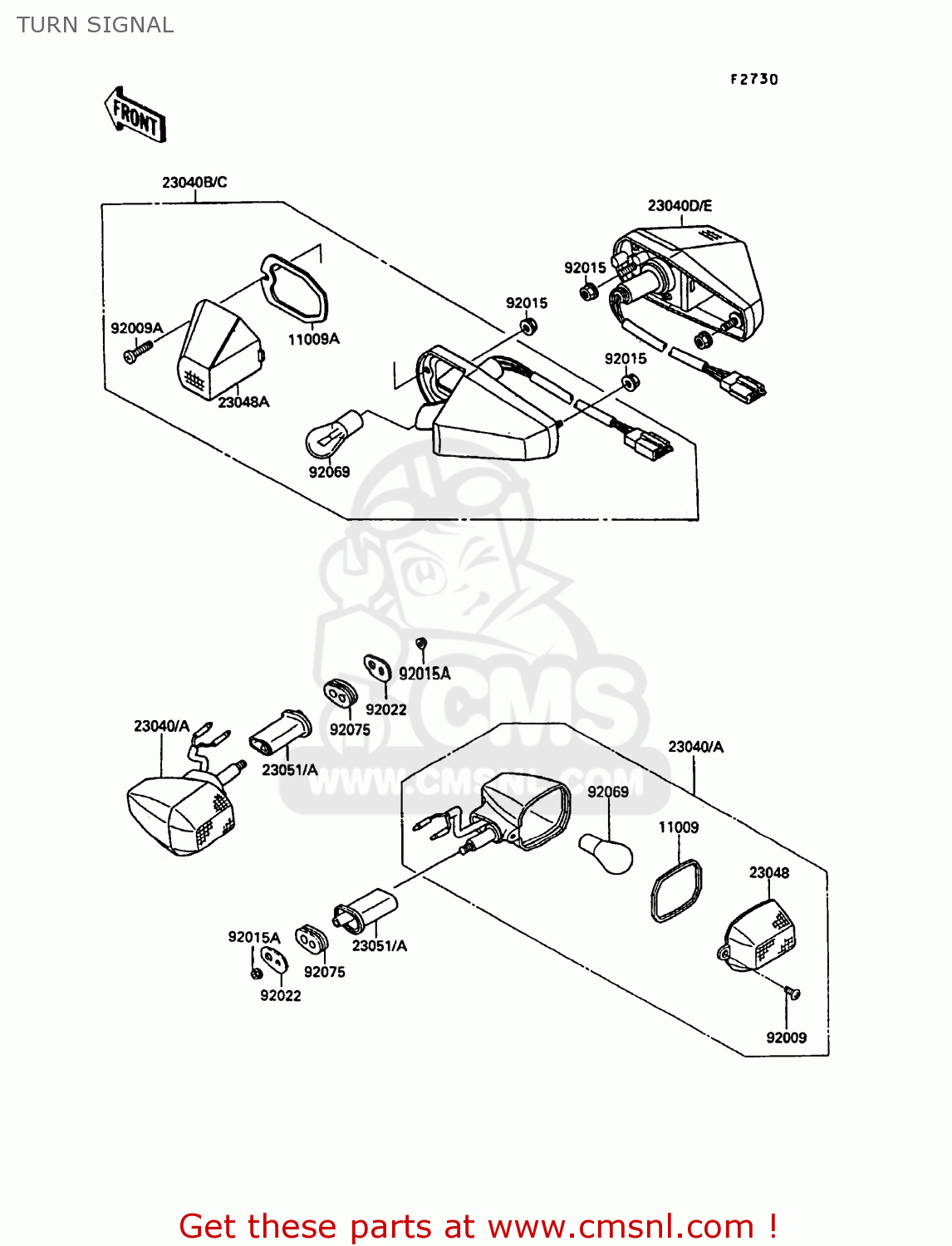

Turn signal diagram KR250C3 KR1S 1991 EUROPE UK FR GR
TURN SIGNAL KR250C3 KR1S 1991 EUROPE UK FR GR
×
prices are in EUR
ref
part #
description
quantity
11009
110091576
ref: 11009
GASKET,SIGNAL LAMP (NAS)
€ 4.50
11009A
110091620
ref: 11009A
GASKET,SIGNAL LAMP (NAS)
€ 2.50
23040
230401142
ref: 23040
UK
LAMP-SIGNAL
€ 40.50
23040A
230401201
ref: 23040A
EUFRGR
LAMP-SIGNAL
€ 56.00
23040B
230401202T8
ref: 23040B
LAMP-SIGNAL,FR,LH,P.G
€ 36.50
23040C
2304012027F
ref: 23040C
LAMP-SIGNAL,FR,LH,L.G
€ 33.50
23040D
230401203T8
ref: 23040D
LAMP-SIGNAL,FR,RH,P.G
€ 36.50
23040E
2304012037F
ref: 23040E
LAMP-SIGNAL,FR,RH,L.G
€ 33.50
23048
230481068
ref: 23048
LENS-SIGNAL LAMP
€ 12.00
23048A
230481083
ref: 23048A
LENS-SIGNAL LAMP
€ 10.50
23051
230511165
ref: 23051
UK
BRACKET-SIGNAL LAMP,R
€ 17.00
23051A
230511168
ref: 23051A
EUFRGR
BRACKET-SIGNAL LAMP,R
€ 16.00
92009
920091142
ref: 92009
SCREW,TAPPING,4X12
€ 3.00
92009A
920091297
ref: 92009A
SCREW,TAPPING,4X20
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92022
920221672
ref: 92022
WASHER,SIGNAL LAMP
€ 3.50
92069
ref: 92069
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
€ 6.00
