MUFFLER

KR250C3 KR1S 1991 EUROPE UK FR GR

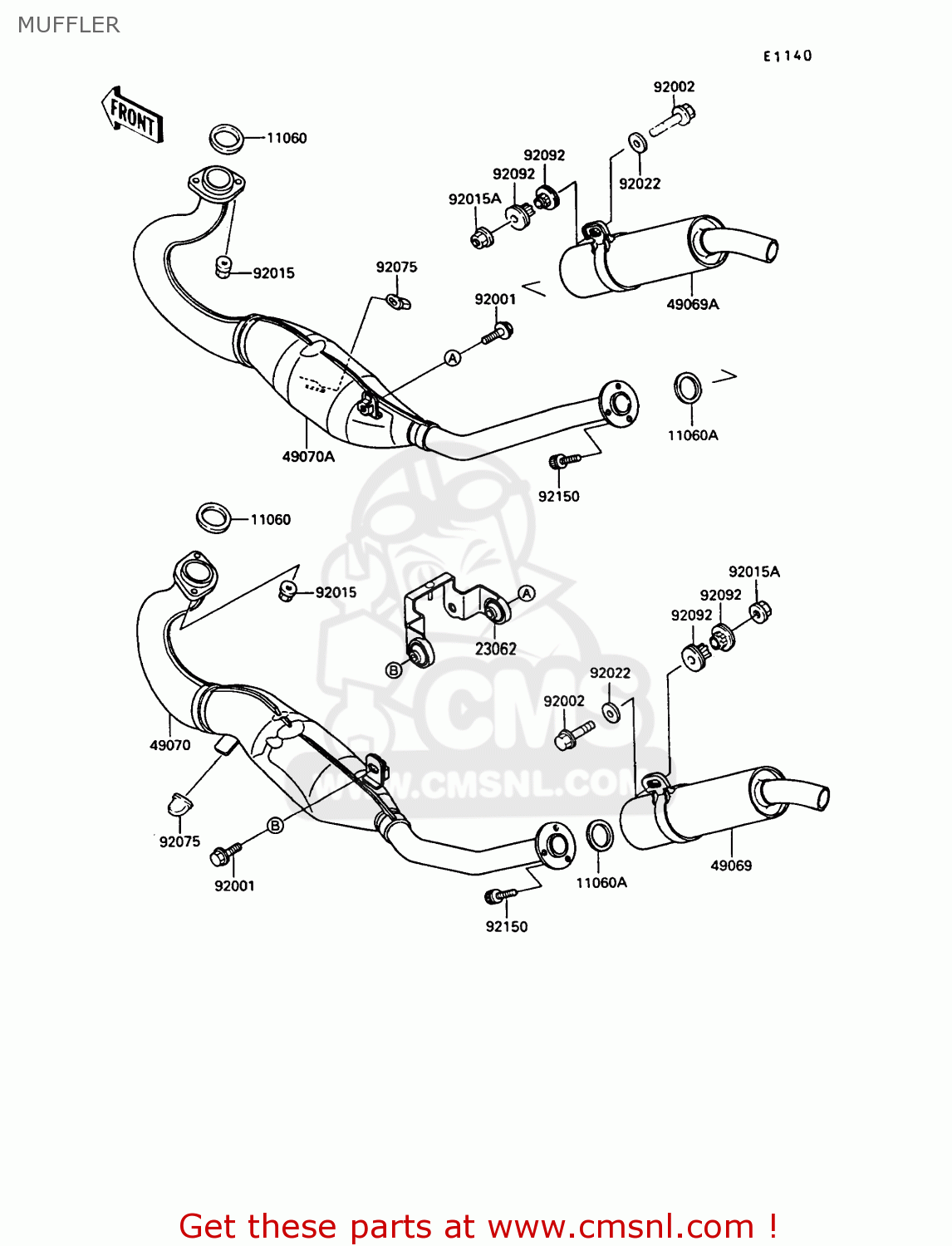

Muffler diagram KR250C3 KR1S 1991 EUROPE UK FR GR

MUFFLER KR250C3 KR1S 1991 EUROPE UK FR GR
MUFFLER KR250C3 KR1S 1991 EUROPE UK FR GR
MUFFLER KR250C3 KR1S 1991 EUROPE UK FR GR
prices are in EUR
ref
part #
description
quantity
11060
110091922
ref: 11060
GASKET,EXHAUST PIPE (NAS)
110091922
€ 6.00
11060A
110091923
ref: 11060A
GASKET,SILENCER BODY (NAS)
110091923
€ 10.00
23062
230621082
ref: 23062
BRACKET-COMP
€ 24.50
49069
490691122
ref: 49069
MUFFLER-ASSY,LH
€ 239.00
49069A
490691123
ref: 49069A
MUFFLER-ASSY,RH
€ 239.00
49070
490701151
ref: 49070
MUFFLER-COMP,LH
€ 318.50
49070A
490701153
ref: 49070A
MUFFLER-COMP,RH
€ 318.50
92001
920011508
ref: 92001
BOLT,FLANGED,8X28,BLA
920011508
€ 3.00
92002
920021127
ref: 92002
BOLT,10X55
920021127
€ 6.00
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151387
ref: 92015A
NUT,FLANGED,10MM
920151387
€ 2.50
92022
920221558
ref: 92022
WASHER,10.5X22X1.6
920221558
€ 2.00
92075
920751445
ref: 92075
DAMPER
920751445
€ 5.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
920921013
€ 11.50
92150
921501176
ref: 92150
BOLT
€ 2.00
