FRAME

KR250C3 KR1S 1991 EUROPE UK FR GR

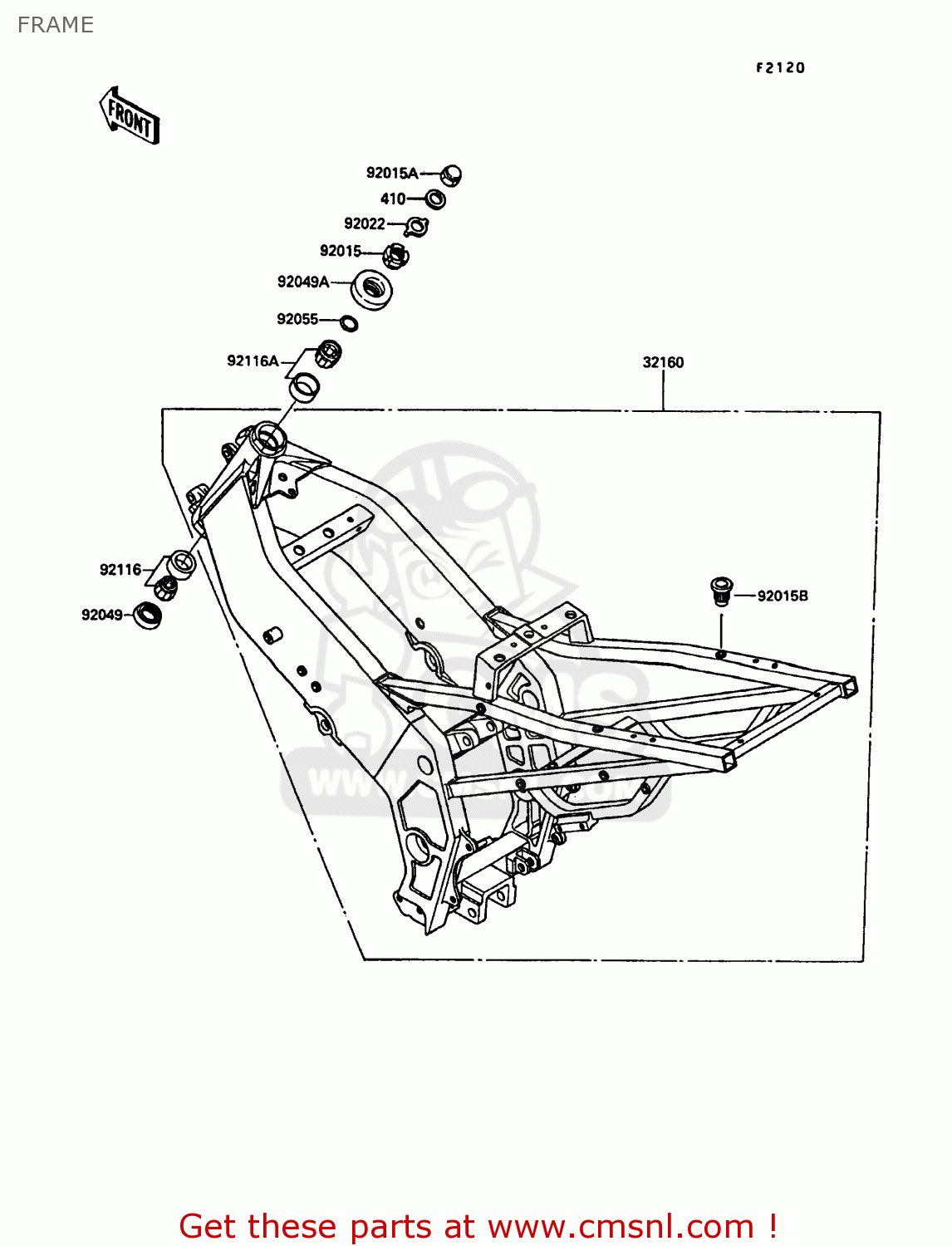

Frame diagram KR250C3 KR1S 1991 EUROPE UK FR GR

prices are in EUR

ref

part #

description

quantity

410

410D1800
ref: 410

W-PLAIN-S,18MM

€ 1.50

32160

321601088CE
ref: 32160

FRAME-COMP,SILVER NO.

€ 1,491.00

92015

920151546
ref: 92015

NUT,25MM,T=12

€ 14.50

92015A

920151736
ref: 92015A

NUT,CAP,18MM

€ 12.00

92015B

920151792
ref: 92015B

NUT,POP,6MM,L=16.5

€ 3.00

92022

920221555
ref: 92022

WASHER,CLAW,18.5X30X2

€ 4.50

92049

920491161
ref: 92049

SEAL-OIL,XMH33X47X2.5

€ 7.50

92049A

920491239
ref: 92049A

SEAL-OIL,XMH33656.4J

€ 14.50

92055

920551459
ref: 92055

RING-O,ID=24.5

€ 3.00

92116

921161052
ref: 92116

BEARING-ROLLER,25X47X

€ 41.00

92116A

921161056
ref: 92116A

BEARING-ROLLER

€ 48.50

FRAME

all assemblies
