CLUTCH
KR250C3 KR1S 1991 EUROPE UK FR GR

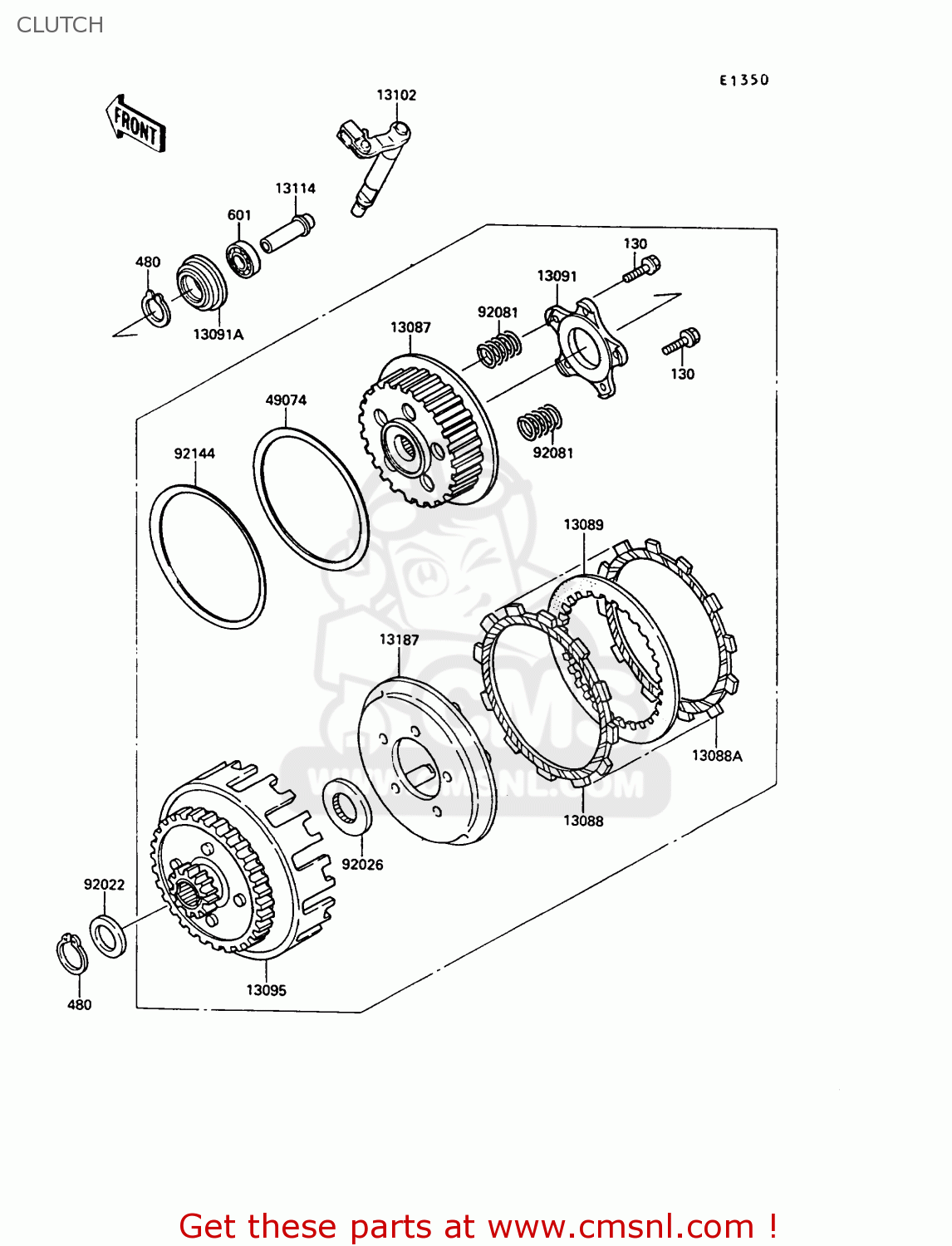

Clutch diagram KR250C3 KR1S 1991 EUROPE UK FR GR
CLUTCH KR250C3 KR1S 1991 EUROPE UK FR GR
×
prices are in EUR
ref
part #
description
quantity
130
130G0620
ref: 130
BOLT,FLANGED,6X20
€ 2.50
480
480J2500
ref: 480
CIRCLIP-TYPE-C,25MM
€ 1.00
601
601A6201
ref: 601
BEARING-BALL
€ 7.00
13087
130871108
ref: 13087
HUB-CLUTCH
€ 70.00
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
€ 14.00
13088A
130881079
ref: 13088A
PLATE-FRICTION (NAS)
€ 10.00
13089
130891068
ref: 13089
PLATE-CLUTCH,T=2.0 (NAS)
€ 6.50
13091
130911304
ref: 13091
HOLDER,CLUTCH SPRING
€ 45.50
13091A
130911305
ref: 13091A
HOLDER,CLUTCH BEARING
€ 14.00
13095
130951202
ref: 13095
HOUSING-COMP-CLUTCH
€ 300.50
13102
131021100
ref: 13102
RELEASE-COMP-CLUTCH
€ 35.50
13114
131141052
ref: 13114
PUSHER-CLUTCH
€ 16.00
13187
131871064
ref: 13187
PLATE-CLUTCH OPERATIN
€ 45.50
49074
490741051
ref: 49074
PLATE-THRUST
€ 9.00
92022
920221109
ref: 92022
WASHER,25.3X33X1
€ 4.00
92026
920261308
ref: 92026
SPACER,CLUTCH
€ 5.50
92081
920811821
ref: 92081
SPRING,CLUTCH
€ 5.50
92144
921441315
ref: 92144
SPRING
€ 17.50
