COWLING
KR250C3 KR1S 1991 EUROPE UK FR GR

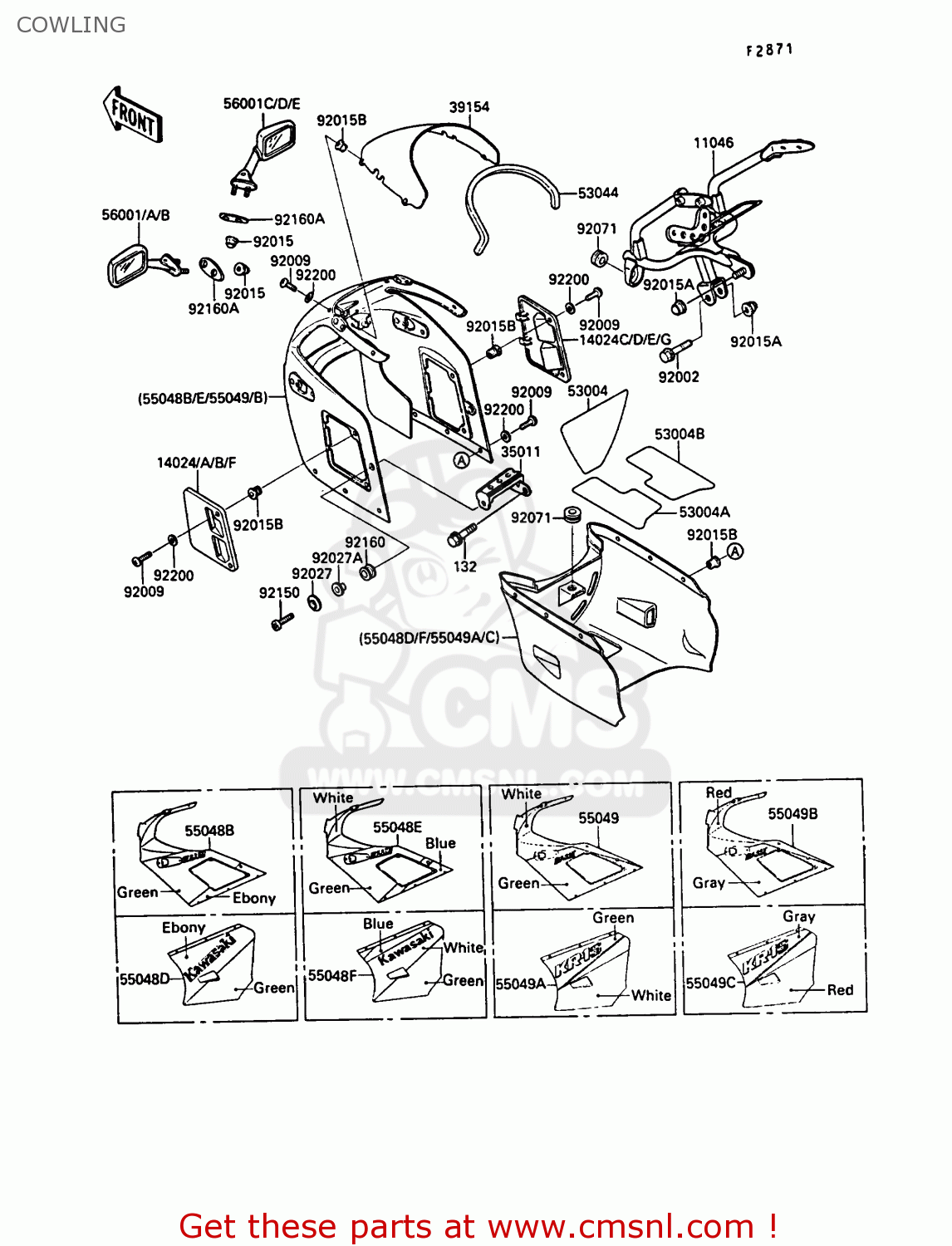

Cowling diagram KR250C3 KR1S 1991 EUROPE UK FR GR
COWLING KR250C3 KR1S 1991 EUROPE UK FR GR
×
prices are in EUR
ref
part #
description
quantity
11046
110461842
ref: 11046
BRACKET,COWLING
€ 152.50
14024A
140241612T8
ref: 14024A
COVER,UPP COWLING,LH,
€ 80.00
14024B
1402416127F
ref: 14024B
COVER,UPP COWLING,LH,
€ 80.00
14024D
140241613T8
ref: 14024D
COVER,UPP COWLING,RH,
€ 80.00
14024E
1402416137F
ref: 14024E
COVER,UPP COWLING,RH,
€ 80.00
14024F
140245189CK
ref: 14024F
EUFRGR
COVER,UPP COWLING,LH,
€ 80.00
14024G
140245190CK
ref: 14024G
EUFRGR
COVER,UPP COWLING,RH,
€ 80.00
35011
350111504
ref: 35011
STAY,UPP COWLING
€ 14.00
39154
391541085
ref: 39154
WINDSHIELD
€ 210.00
53004
530041057
ref: 53004
MAT,LOWER COWLING
€ 14.00
53004A
530041065
ref: 53004A
MAT,LOWER COWLING,LH
€ 13.50
53004B
530041066
ref: 53004B
MAT,LOWER COWLING,RH
€ 13.50
53044
530441232
ref: 53044
TRIM,WINDSHIELD
€ 8.50
55048E
550485402CK
ref: 55048E
EUFRGR
COWLING.,UPP,GREEN/WH
€ 587.00
55048F
550485403CK
ref: 55048F
EUFRGR
COWLING.,LWR,GREEN/WH
€ 261.00
55049
550485496CK
ref: 55049
COWLING.,UPP,GREEN/WH
€ 587.00
55049A
550485497CK
ref: 55049A
COWLING.,LWR,GREEN/WH
€ 349.00
55049B
550485498KC
ref: 55049B
COWLING.,UPP,RED/GRAY
€ 587.00
55049C
550485499KC
ref: 55049C
COWLING.,LWR,RED/GRAY
€ 313.00
56001A
5600113766F
ref: 56001A
MIRROR-ASSY,LH,P.WHIT
€ 80.00
56001B
5600113766L
ref: 56001B
MIRROR-ASSY,LH,F.RED
€ 61.50
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
56001D
5600113776F
ref: 56001D
MIRROR-ASSY,RH,P.WHIT
€ 80.00
56001E
5600113776L
ref: 56001E
MIRROR-ASSY,RH,F.RED
€ 66.00
92002
920021198
ref: 92002
BOLT,8X35
€ 3.00
92009
920091464
ref: 92009
SCREW
€ 2.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
€ 0.50
92015A
920151174
ref: 92015A
NUT,CAP,8MM,BLACK
€ 3.00
92015B
920151757A
ref: 92015B
NUT,5MM
€ 5.00
92027
920271886
ref: 92027
COLLAR,L=6.5,WHITE
€ 8.00
92027A
92027194
ref: 92027A
COLLAR
€ 3.50
92071
92071056
ref: 92071
GROMMET
€ 2.50
92150
921501346
ref: 92150
BOLT,SOCKET,6X25
€ 3.50
92160
921601032
ref: 92160
DAMPER
€ 2.50
92160A
921601089
ref: 92160A
DAMPER,MIRROR
€ 4.50
92200
922001011
ref: 92200
WASHER,NYLON,5.2X12X1
€ 2.00
