FRONT HUB
KR250C3 KR1S 1991 EUROPE UK FR GR

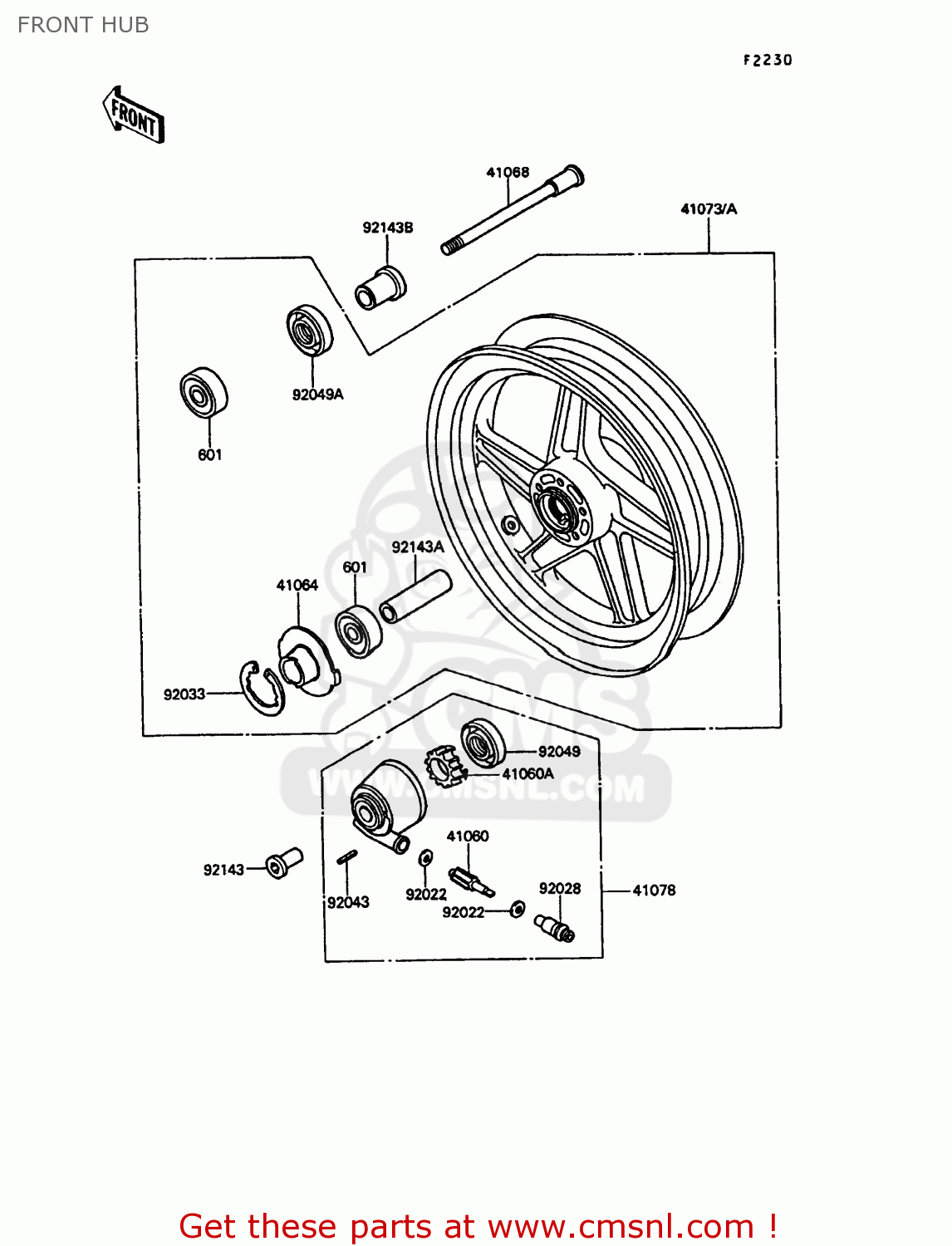

Front hub diagram KR250C3 KR1S 1991 EUROPE UK FR GR
FRONT HUB KR250C3 KR1S 1991 EUROPE UK FR GR
×
prices are in EUR
ref
part #
description
quantity
601
601B6203UG
ref: 601
BEARING-BALL,#6203UG
€ 35.50
41060
410601123
ref: 41060
GEAR-METER SCREW,9T
€ 19.50
41060A
410601124
ref: 41060A
GEAR-METER SCREW,23T
€ 23.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681300
ref: 41068
AXLE,FR
€ 55.00
41073
410731476CJ
ref: 41073
WHEEL-ASSY,FR,L.GREEN
€ 656.50
41073A
410731476X4
ref: 41073A
WHEEL-ASSY,FR,F.RED
€ 585.00
41078
410781070
ref: 41078
CASE-ASSY-METER GEAR
€ 85.00
92022
41063001
ref: 92022
WASHER-THRST SPD PINI
€ 3.00
92028
920281066
ref: 92028
BUSHING,SPEEDOMET CAB
€ 7.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92043
41082001
ref: 92043
PIN-SPRING
€ 2.50
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491110
ref: 92049A
SEAL-OIL,AG1258A0
€ 6.50
92143
921431206
ref: 92143
COLLAR,FR AXLE NUT,L=
€ 18.50
92143A
921431317
ref: 92143A
COLLAR,FR HUB,L=72.5
€ 8.00
92143B
921431335
ref: 92143B
COLLAR,FR AXLE,L=19.5
€ 16.00
