FRONT FORK
KR250C3 KR1S 1991 EUROPE UK FR GR

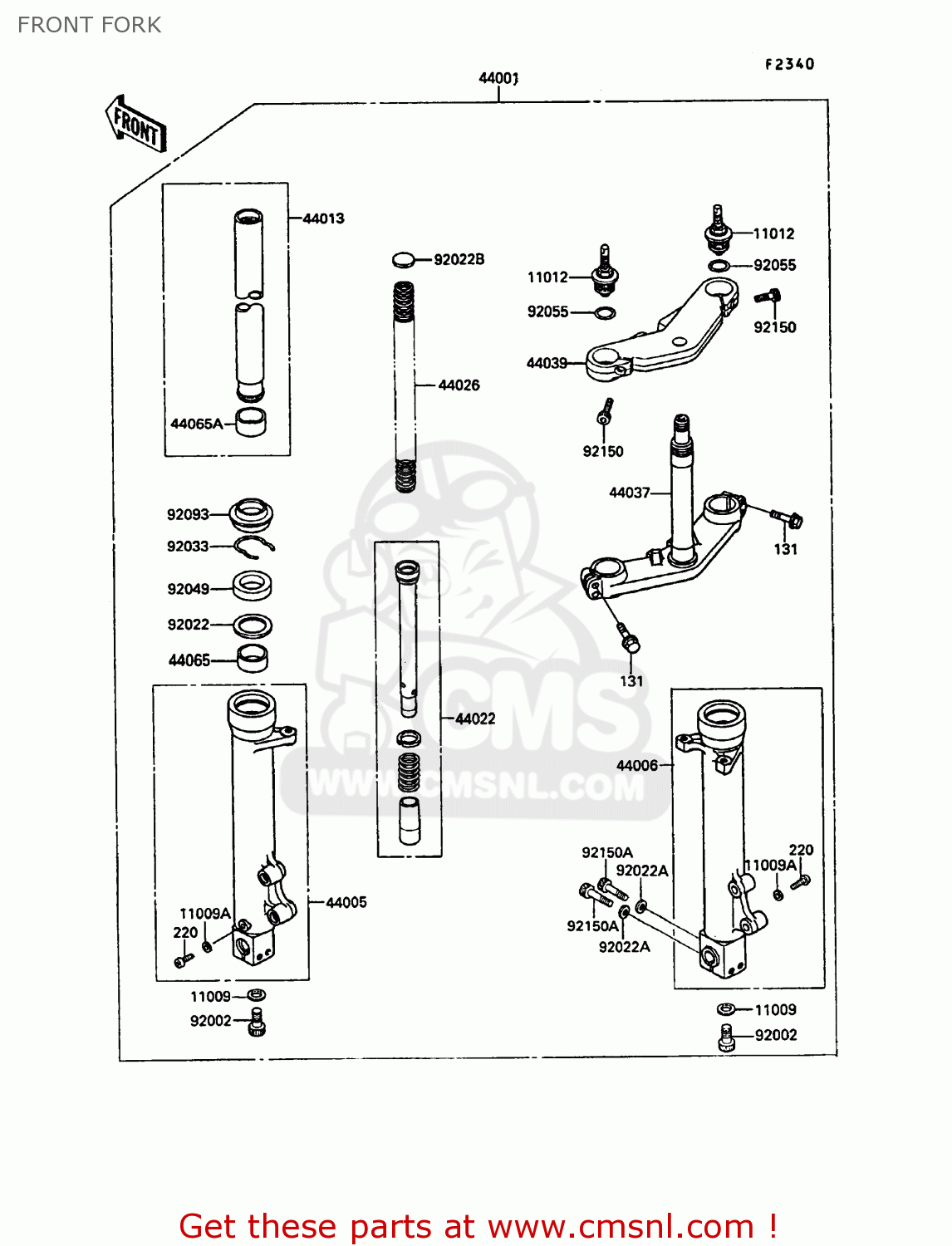

Front fork diagram KR250C3 KR1S 1991 EUROPE UK FR GR
FRONT FORK KR250C3 KR1S 1991 EUROPE UK FR GR
×
prices are in EUR
ref
part #
description
quantity
131
131G0840
ref: 131
BOLT, 8 X 40
€ 5.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121667
ref: 11012
CAP,FORK TOP
€ 75.00
44001
440011738CE
ref: 44001
FORK-FRONT,SILVER NO.
€ 1,338.00
44005
440051295CE
ref: 44005
PIPE-LEFT FORK OUTER,
€ 282.00
44006
440061292CE
ref: 44006
PIPE-RIGHT FORK OUTER
€ 277.00
44013
440131309
ref: 44013
PIPE-FORK INNER
€ 117.00
44022
440221249
ref: 44022
CYLINDER-FORK
€ 82.50
44026
440261466
ref: 44026
SPRING-FRONT FORK
€ 28.00
44037
440371260
ref: 44037
HOLDER-FORK UNDER
€ 199.00
44039
440391195
ref: 44039
HOLDER-FORK UPPER
€ 185.50
44065
440651085
ref: 44065
BUSHING-FRONT FORK
€ 21.00
44065A
440651086
ref: 44065A
BUSHING-FRONT FORK,IN
€ 21.00
92002
920021650
ref: 92002
BOLT,FORK DRAIN
€ 10.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92022B
920221965
ref: 92022B
WASHER
€ 3.00
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491273
ref: 92049
SEAL-OIL,FORK OUTER
€ 13.00
92055
920551122
ref: 92055
RING-O,FORK TOP CAP
€ 3.50
92093
920931232
ref: 92093
SEAL,FORK OUTER TUBE
€ 14.00
92150
921501172
ref: 92150
BOLT,SOCKET,8X25
€ 1.50
92150A
921501194
ref: 92150A
BOLT,SOCKET,8X40
€ 2.00
