TURN SIGNALS
KR250B2 KR1 1989 EUROPE UK FR GR IT

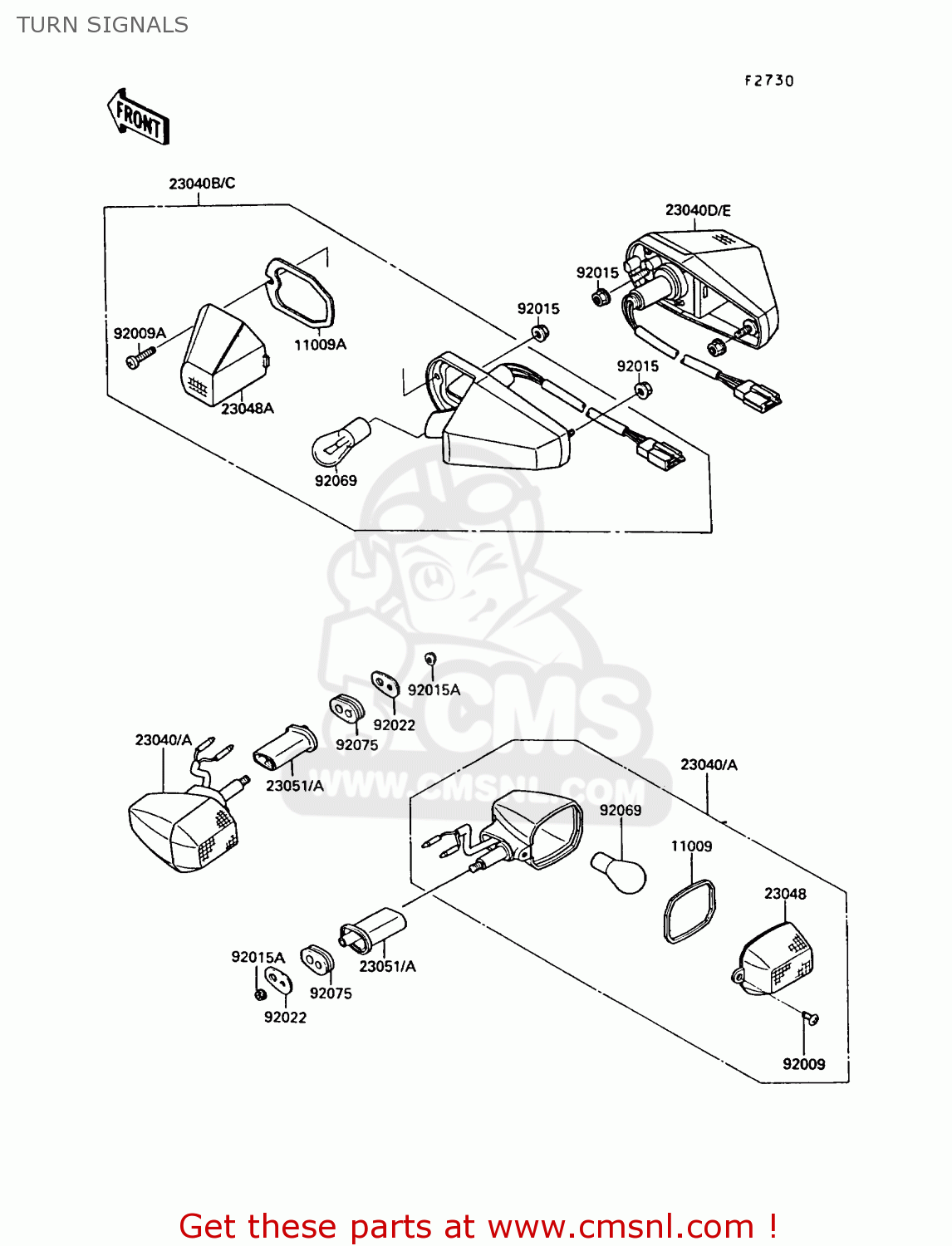

Turn signals diagram KR250B2 KR1 1989 EUROPE UK FR GR IT
TURN SIGNALS KR250B2 KR1 1989 EUROPE UK FR GR IT
×
prices are in EUR
ref
part #
description
quantity
11009
110091576
ref: 11009
GASKET,SIGNAL LAMP (NAS)
€ 4.50
11009A
110091620
ref: 11009A
GASKET,SIGNAL LAMP (NAS)
€ 2.50
23040
230401142
ref: 23040
UK
LAMP-SIGNAL
€ 40.50
23040A
230401201
ref: 23040A
EUFRGRIT
LAMP-SIGNAL
€ 56.00
23040B
230401202F1
ref: 23040B
EUGRUK
LAMP-SIGNAL,FR,LH,P.W
€ 34.50
23040C
2304012027F
ref: 23040C
LAMP-SIGNAL,FR,LH,L.G
€ 33.50
23040D
230401203F1
ref: 23040D
EUGRUK
LAMP-SIGNAL,FR,RH,P.W
€ 29.50
23040E
2304012037F
ref: 23040E
LAMP-SIGNAL,FR,RH,L.G
€ 33.50
23048
230481068
ref: 23048
LENS-SIGNAL LAMP
€ 12.00
23048A
230481083
ref: 23048A
LENS-SIGNAL LAMP
€ 10.50
23051
230511165
ref: 23051
UK
BRACKET-SIGNAL LAMP,R
€ 17.00
23051A
230511168
ref: 23051A
EUFRGRIT
BRACKET-SIGNAL LAMP,R
€ 16.00
92009
920091142
ref: 92009
SCREW,TAPPING,4X12
€ 3.00
92009A
920091297
ref: 92009A
SCREW,TAPPING,4X20
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92022
920221672
ref: 92022
WASHER,SIGNAL LAMP
€ 3.50
92069
ref: 92069
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
€ 6.00
