CRANKCASE
KR250B2 KR1 1989 EUROPE UK FR GR IT

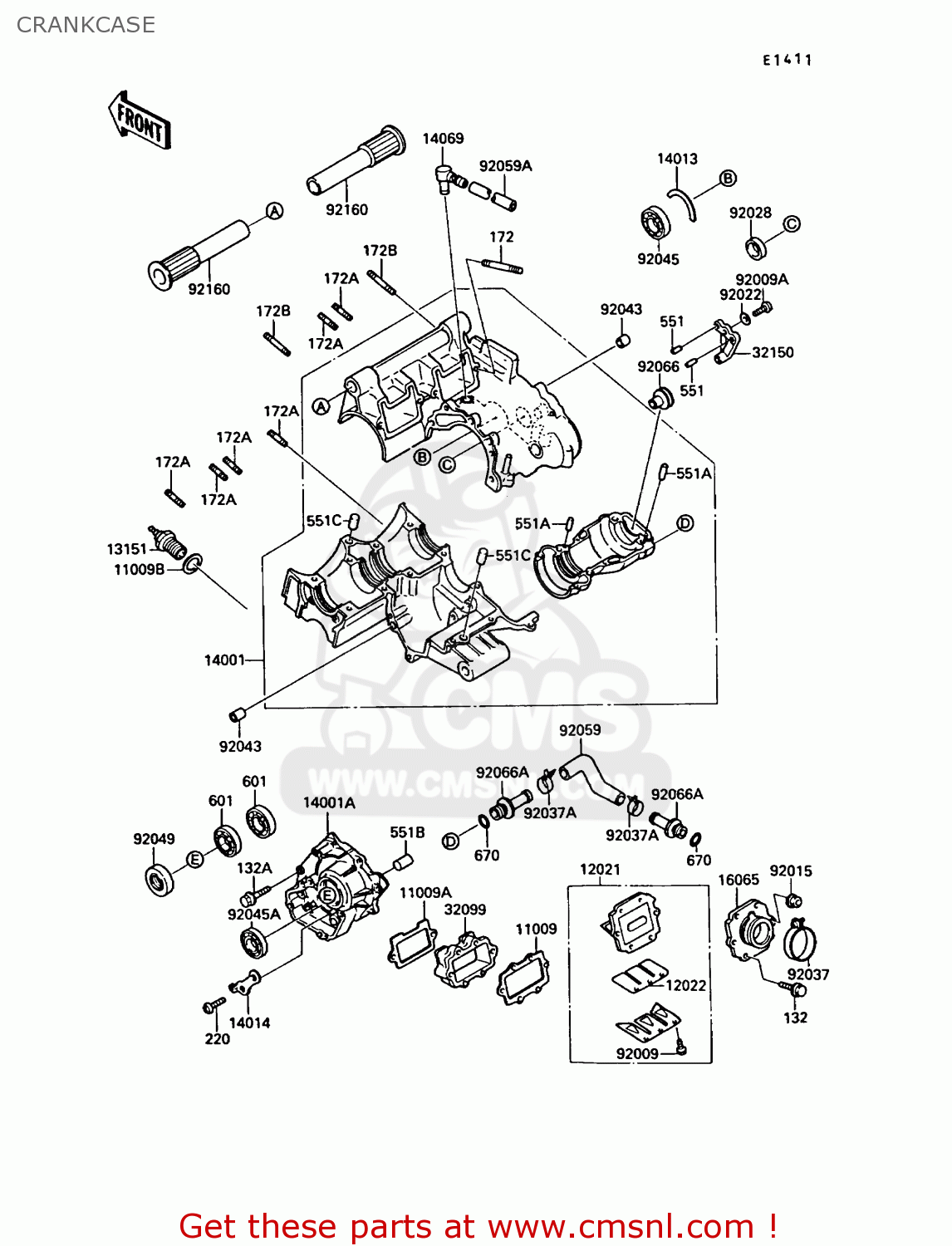

Crankcase diagram KR250B2 KR1 1989 EUROPE UK FR GR IT
CRANKCASE KR250B2 KR1 1989 EUROPE UK FR GR IT
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
172
172G0645
ref: 172
STUD,6X45
€ 1.00
172A
172G0825
ref: 172A
STUD,8X25
€ 3.50
172B
172G0830
ref: 172B
STUD,8X30
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
551
551A0306
ref: 551
PIN,DOWEL,3X6
€ 1.00
551A
551A0612
ref: 551A
PIN-DOWEL,6X12
€ 0.50
551B
551A0812
ref: 551B
PIN-DOWEL,8X12
€ 0.50
551C
551A1012
ref: 551C
PIN-DOWEL
€ 2.50
11009
110091263
ref: 11009
GASKET,REED VALVE (MCA)
€ 6.00
11009A
110091709
ref: 11009A
GASKET,REED VALVE (MCA)
€ 2.50
11009B
92065058
ref: 11009B
GASKET, 10,5X16X1 (NAS)
€ 2.50
12021
120211072
ref: 12021
VALVE-ASSY-REED
€ 169.50
12022
120221057
ref: 12022
VALVE-REED,CARBON
€ 37.00
13151
131511055
ref: 13151
SWITCH-COMP
€ 9.00
14001
140011061
ref: 14001
SET-CRANKCASE
€ 813.00
14001A
140011065
ref: 14001A
SET-CRANKCASE,LH
€ 76.00
14013
14013004
ref: 14013
RING-BEARING SETTING
€ 7.00
14014
140141091
ref: 14014
PLATE-POSITION
€ 2.00
14069
14069003
ref: 14069
BREATHER
€ 7.00
16065
160651169
ref: 16065
HOLDER-CARBURETOR
€ 47.00
32099
320991112
ref: 32099
CASE,VALVE
€ 21.00
32150
321021860
ref: 32150
PIPE
€ 14.50
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92009A
920091543
ref: 92009A
SCREW
€ 2.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
920221972
ref: 92022
WASHER,4.2X8.5X1.0
€ 2.00
92028
920281521
ref: 92028
BUSHING,23X33X14
€ 15.00
92037
920371527
ref: 92037
CLAMP,43MM
€ 12.00
92037A
920371678
ref: 92037A
CLAMP
€ 7.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92045
920451013
ref: 92045
BEARING-BALL,#6205NX3
€ 23.00
92045A
920451122
ref: 92045A
BEARING-BALL,6805
€ 40.00
92049
920491224
ref: 92049
SEAL-OIL
€ 9.00
92059
920591887
ref: 92059
TUBE
€ 6.50
92059A
920591946
ref: 92059A
TUBE,6X9X420
€ 9.00
92066
920661290
ref: 92066
PLUG
€ 2.50
92066A
920661295
ref: 92066A
PLUG
€ 12.00
92160
921601037
ref: 92160
DAMPER
€ 16.00
601
601B6205
ref: 601
BEARING-BALL,#6205C3
€ 14.00
670
670B2012
ref: 670
O RING,12MM
€ 1.00
