TRANSMISSION
KR250B2 KR1 1989 EUROPE UK FR GR IT

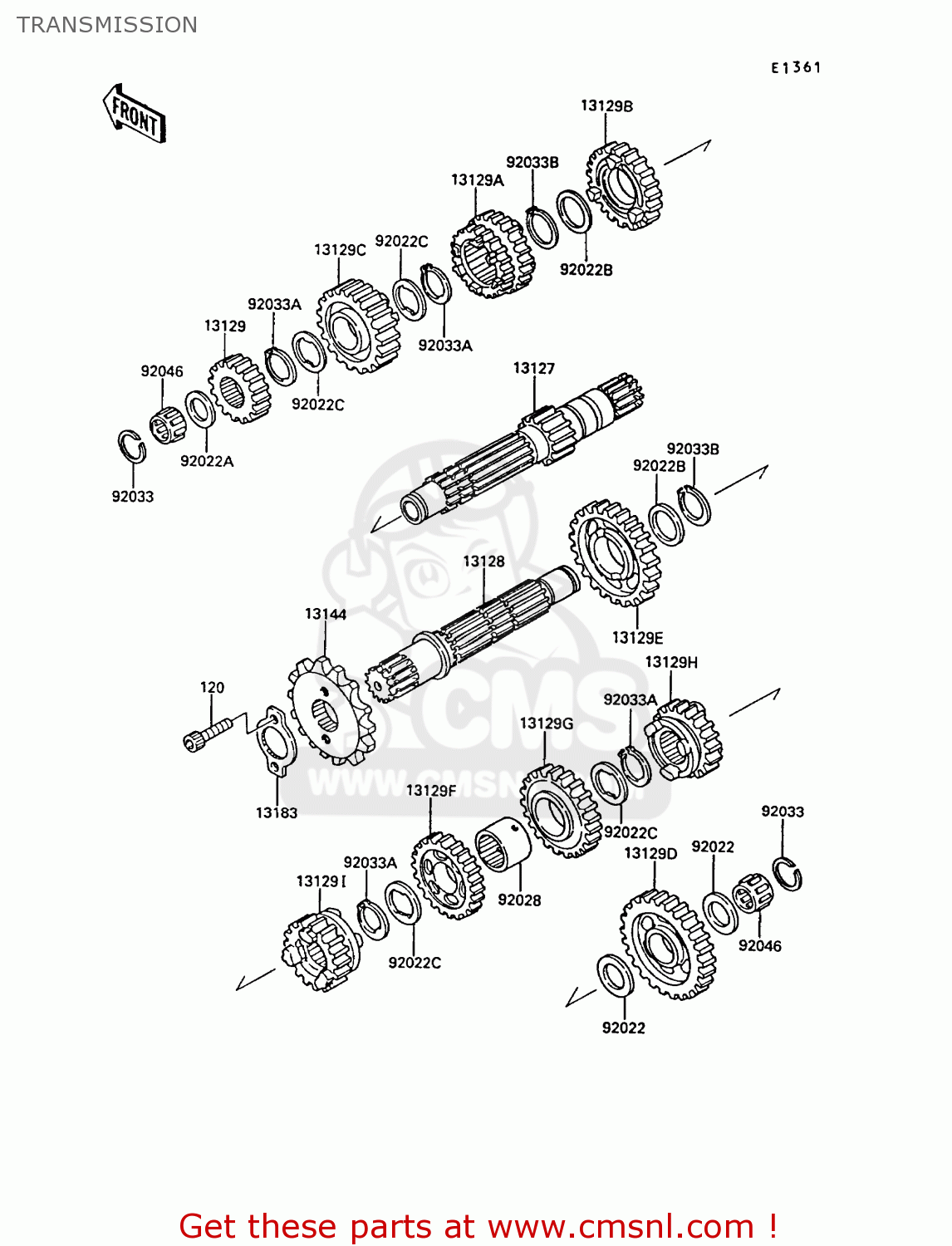

Transmission diagram KR250B2 KR1 1989 EUROPE UK FR GR IT
TRANSMISSION KR250B2 KR1 1989 EUROPE UK FR GR IT
×
prices are in EUR
ref
part #
description
quantity
120
120P0610
ref: 120
BOLT-SOCKET,6X10
€ 1.00
13127
131271163
ref: 13127
SHAFT-TRANSMISSION IN
€ 134.00
13128
131281152
ref: 13128
SHAFT-TRANSMISSION OU
€ 132.50
13129
131291914
ref: 13129
GEAR,INPUT 2ND,22T
€ 44.50
13129A
131291915
ref: 13129A
GEAR,INPUT 3RD&4TH,19
€ 131.50
13129B
131291916
ref: 13129B
GEAR,INPUT 5TH,27T
€ 83.50
13129C
131291917
ref: 13129C
GEAR,INPUT 6TH,29T
€ 82.50
13129D
131291918
ref: 13129D
GEAR,OUTPUT LOW,38T
€ 97.00
13129E
131291919
ref: 13129E
GEAR,OUTPUT 2ND,38T
€ 89.00
13129F
131291920
ref: 13129F
GEAR,OUTPUT 3RD,31T
€ 87.00
13129G
131291921
ref: 13129G
GEAR,OUTPUT 4TH,25T
€ 87.00
13129H
131291922
ref: 13129H
GEAR,OUTPUT 5TH,26T
€ 108.00
13129I
131291923
ref: 13129I
GEAR,OUTPUT TOP,25T
€ 101.00
13144
131441103
ref: 13144
SPROCKET-OUTPUT,15T
€ 36.00
13183
131691658
ref: 13183
PLATE,SPROCKET
€ 5.50
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
€ 6.00
92022A
92022144
ref: 92022A
SHIM-KICK SHAFT
€ 4.50
92022B
92022161
ref: 92022B
WASHER-THRUST,25MM
€ 7.00
92022C
920221935
ref: 92022C
WASHER,23X30X1.0
€ 3.00
92028
920281437
ref: 92028
BUSHING
€ 16.50
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
920331089
ref: 92033A
RING-SNAP,25MM
€ 3.50
92033B
920331172
ref: 92033B
RING-SNAP,25MM
€ 3.50
92046
92046044
ref: 92046
BEARING-NEEDLE,20R251
€ 23.00
