REAR HUB
KR250B2 KR1 1989 EUROPE UK FR GR IT

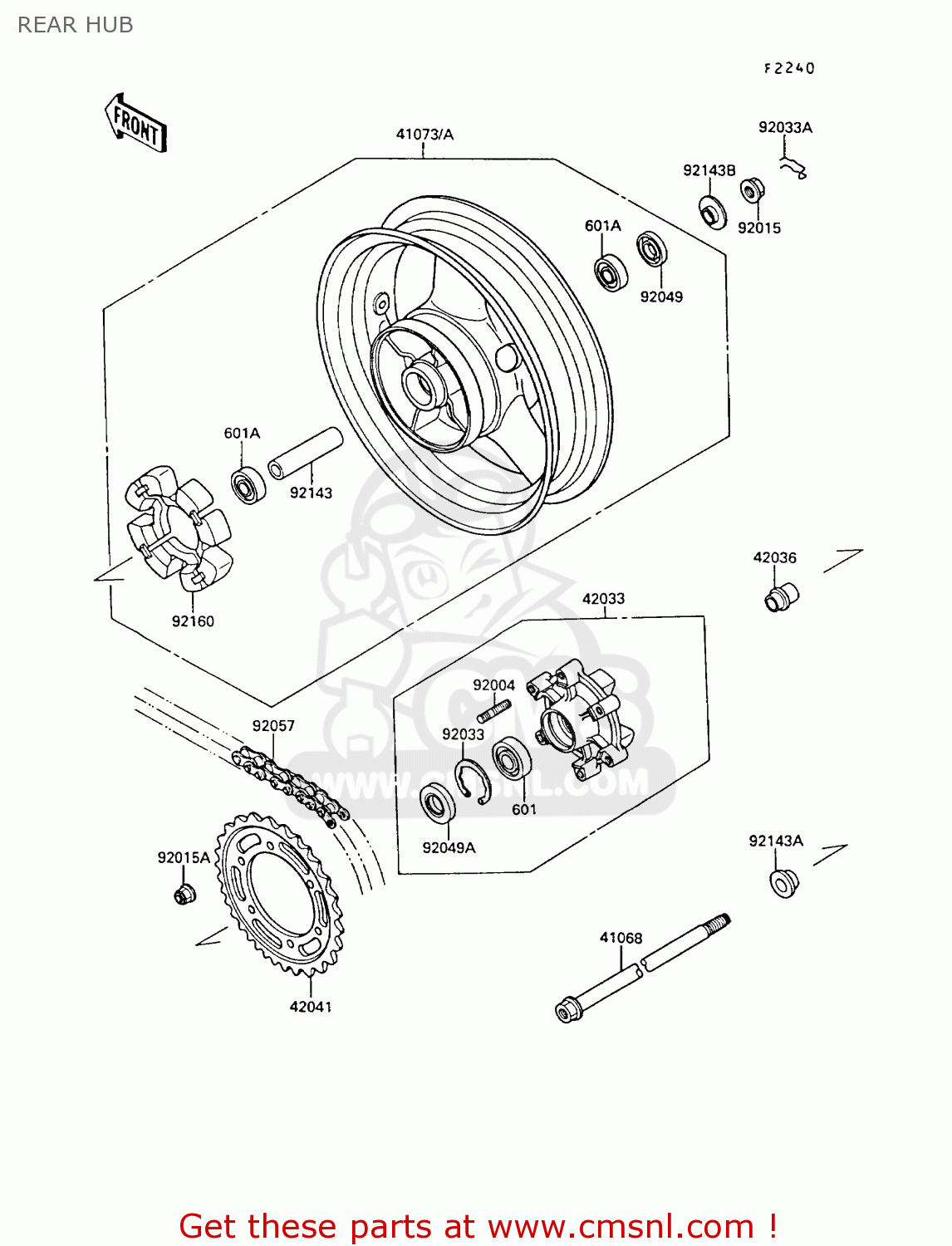

Rear hub diagram KR250B2 KR1 1989 EUROPE UK FR GR IT
REAR HUB KR250B2 KR1 1989 EUROPE UK FR GR IT
×
prices are in EUR
ref
part #
description
quantity
601
601B6004UG
ref: 601
BEARING-BALL,#6004U
€ 27.50
601A
601B6203UU
ref: 601A
BEARING-BALL,#6203UUC
€ 25.00
41068
410681254
ref: 41068
AXLE,RR
€ 37.50
41073
410731419CJ
ref: 41073
WHEEL-ASSY,RR,L.GREEN
€ 526.50
41073A
410731419X4
ref: 41073A
EUGRUK
WHEEL-ASSY,RR,F.RED
€ 449.50
42033
420331126
ref: 42033
COUPLING-ASSY,RR HUB
€ 182.00
42036
420361228
ref: 42036
SLEEVE,RR AXLE,L=32
€ 10.50
42041
420411319
ref: 42041
SPROCKET-HUB,40T
€ 36.00
92004
920041062
ref: 92004
STUD,10X18
€ 5.00
92015
920151041
ref: 92015
NUT,16M/M
€ 8.50
92015A
920151335
ref: 92015A
NUT,FLANGED,10MM
€ 1.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92033A
920331245
ref: 92033A
RING-SNAP
€ 6.50
92049
920491110
ref: 92049
SEAL-OIL,AG1258A0
€ 6.50
92049A
920491203
ref: 92049A
SEAL-OIL,BJNC2 25425
€ 12.00
92057
920571253
ref: 92057
CHAIN,DRIVE,DID520V2X
€ 44.00
92143
921431186
ref: 92143
COLLAR,17.1X22X102
€ 15.00
92143A
921431188
ref: 92143A
COLLAR,RR AXLE,L=14
€ 13.00
92143B
921431189
ref: 92143B
COLLAR,RR AXLE,L=11.5
€ 13.50
92160
921601023
ref: 92160
DAMPER,SHOCK,RR HUB
€ 49.50
